SSUEF..EHB/ESB is a standard duty all stainless steel bearing units series for all-stainless mounted support for corrosion-sensitive equipment. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
SSUEF..EHB/ESB is a standard duty series configured around all-stainless 4-bolt flange with hollow/solid base options. Its catalogue definition uses setscrew / eccentric locking, with individual bore and dimensional variants retained in one model table.
The page keeps the full series together because housing geometry and locking method define the product family more clearly than a single bore size. Exact unit numbers remain in the source table for side-by-side checking.
The series can also be compared with other mounted-bearing families when the machine design is still open. Start from the bearing index, then return to the drawing that best matches the mounting interface. Browse related bearing families.
SSUEF..EHB/ESB is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is all-stainless 4-bolt flange with hollow/solid base options, intended for all-stainless mounted support for corrosion-sensitive equipment.
All-stainless steel series. Confirm the selected insert, seal, grease and cover arrangement for the actual cleaning or corrosion exposure.
Series attributes are separated from model dimensions here. This makes the page easier to scan while keeping the original line-by-line dimensional reference intact below.
| Series | SSUEF..EHB/ESB |
|---|---|
| Catalogue Reference | Part B, page B104 |
| Product Family | All Stainless Steel Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Setscrew / eccentric locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | all-stainless 4-bolt flange with hollow/solid base options |
| Material Note | All-stainless steel series |

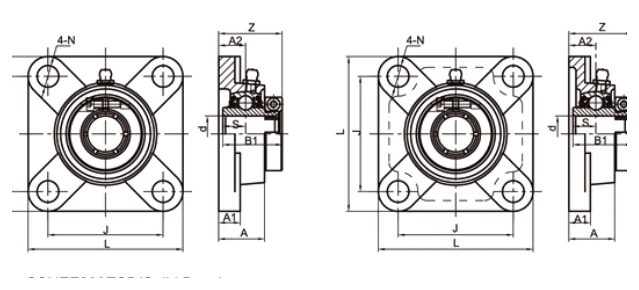

For replacement work, compare the drawing with the installed housing rather than relying on a familiar series code alone. Mounting dimensions and locking details are the better confirmation points.
SSUEF..EHB/ESB is relevant when washdown or wet-process equipment requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For food-processing and packaging machinery, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
SSUEF..EHB/ESB is relevant when corrosive-environment conveyors requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.

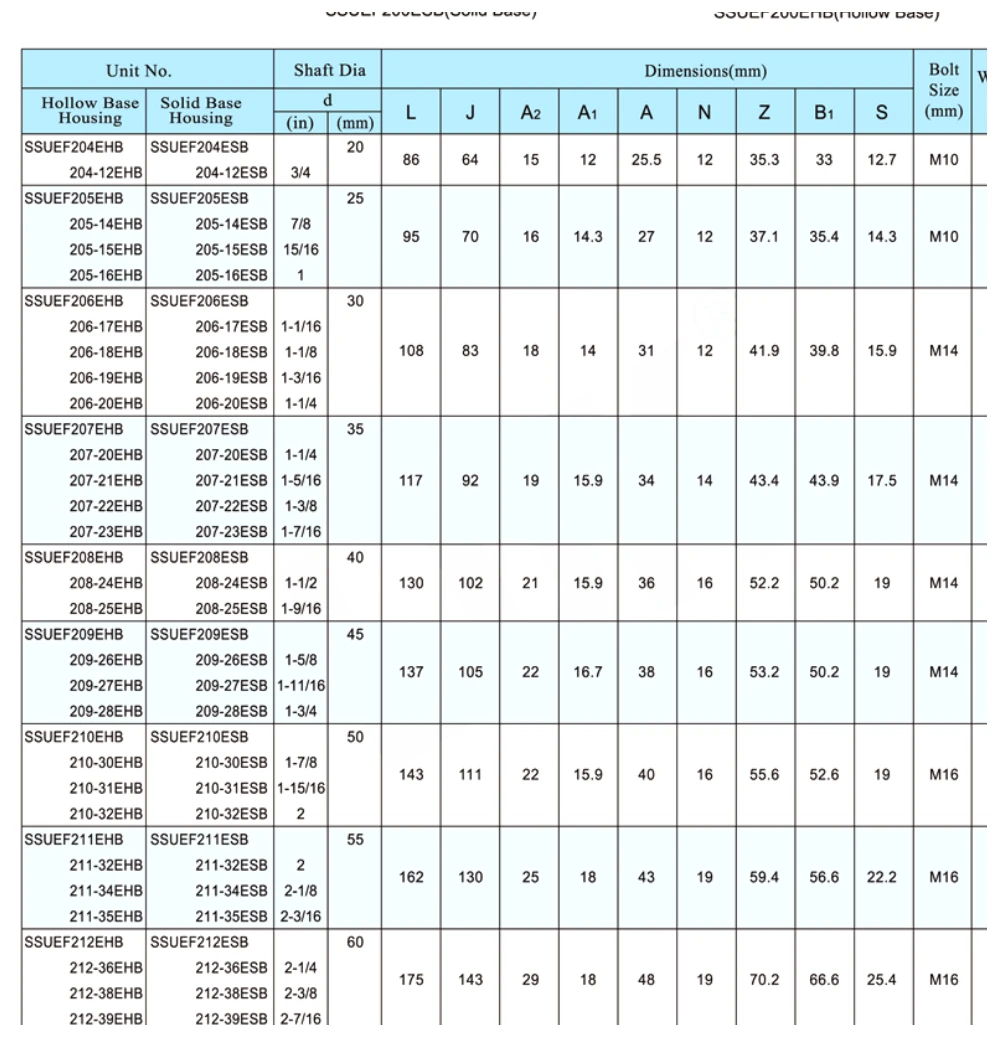

All catalogue rows for this family remain together below. Check the chosen bore or accessory code against the drawing letters, then include that exact unit designation in the RFQ.
Begin with the machine mounting envelope, then confirm the shaft and locking arrangement. A similar series code does not guarantee the same center height, bolt pattern, cartridge fit, slot geometry or inner-ring dimensions. In this family, the intended role is all-stainless mounted support for corrosion-sensitive equipment.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | housing style and bolt pattern |
| 3 | locking method |
| 4 | environment, cover and lubrication requirements |
Series nomenclature helps narrow the choice, but the final check should be made against the model row and installation data. This avoids treating a nearby bore size or housing variant as interchangeable without verification.
Include the exact bore or unit suffix whenever possible. A photo of the installed housing and a few fixed mounting dimensions are useful when a legacy code is incomplete. Ever Power Netherlands Branch can review the quotation basis against the same reference.
