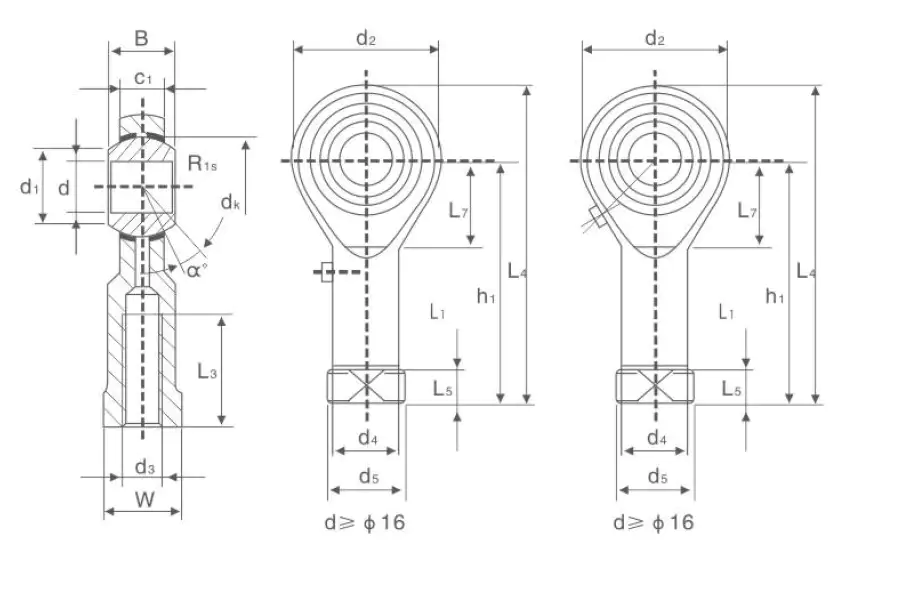

PHS Rod End Bearing is a documented maintenance required series for industrial linkage or pivot applications. Bronze liner at the spherical sliding surface; lubrication hole or grease nipple. Use the main image for identification and the full product description for model-by-model dimensions and load data.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
PHS is a serviceable female-thread rod end for machinery where grease access is acceptable and a bronze-lined sliding surface is preferred. The eye self-aligns around the pin while the threaded body lets the joint disappear neatly into a rod or linkage. Catalogue sizes cover 5–30 mm bores, with matching metric threads and published load ratings.
| Model | Bore d (mm) | Female Thread | B (mm) | C1 (mm) | Reference L (mm) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| PHS5 | 5 | M5x0.8 | 8 | 6 | 27 | 3.25 | 5.7 | 16 |
| PHS6 | 6 | M6x1.0 | 9 | 6.75 | 30 | 4.3 | 7.2 | 22 |
| PHS8 | 8 | M8x1.25 | 12 | 9 | 36 | 7.2 | 11.6 | 47 |
| PHS10 | 10 | M10x1.5 | 14 | 10.5 | 43 | 10.0 | 14.5 | 77 |
| PHS10-1 | 10 | M10x1.25 | 14 | 10.5 | 43 | 10.0 | 14.5 | 77 |
| PHS12 | 12 | M12x1.75 | 16 | 12 | 50 | 13.4 | 17.0 | 100 |
| PHS12-1 | 12 | M12x1.25 | 16 | 12 | 50 | 13.4 | 17.0 | 100 |
| PHS14 | 14 | M14x2.0 | 19 | 13.5 | 57 | 17.0 | 24.0 | 160 |
| PHS14-1 | 14 | M14x1.5 | 19 | 13.5 | 57 | 17.0 | 24.0 | 160 |
| PHS16 | 16 | M16x2.0 | 21 | 15 | 64 | 21.6 | 28.5 | 220 |
| PHS16-1 | 16 | M16x1.5 | 21 | 15 | 64 | 21.6 | 28.5 | 220 |
| PHS18 | 18 | M18x1.5 | 23 | 16.5 | 71 | 26.0 | 42.5 | 320 |
| PHS20 | 20 | M20x1.5 | 25 | 18 | 77 | 31.5 | 42.5 | 420 |
| PHS22 | 22 | M22x1.5 | 28 | 20 | 84 | 38.0 | 57.0 | 540 |
| PHS25 | 25 | M24x2.0 | 31 | 22 | 94 | 47.5 | 68.0 | 730 |
| PHS28 | 28 | M27x2.0 | 35 | 24 | 103 | 58.0 | 75.0 | 980 |
| PHS30 | 30 | M30x2.0 | 37 | 25 | 110 | 64.0 | 88.0 | 1100 |
| PHS30-1 | 30 | M27x2.0 | 37 | 25 | 110 | 64.0 | 88.0 | 1100 |
This is a maintenance-required design, so selection is not only a strength calculation. Check whether a grease point can actually be reached after guards, cylinders and covers are installed. Then compare bore, female thread, envelope dimensions and load ratings.
Grease should reach the spherical interface rather than simply filling the outside of the housing. Clean the fitting before servicing and watch for fretting, increasing play or a dry polished track during inspection.
POS is the male-thread version using the same service philosophy; PHSB covers inch threads; PB is a bronze-lined spherical plain bearing when a threaded rod-end housing is not needed.
