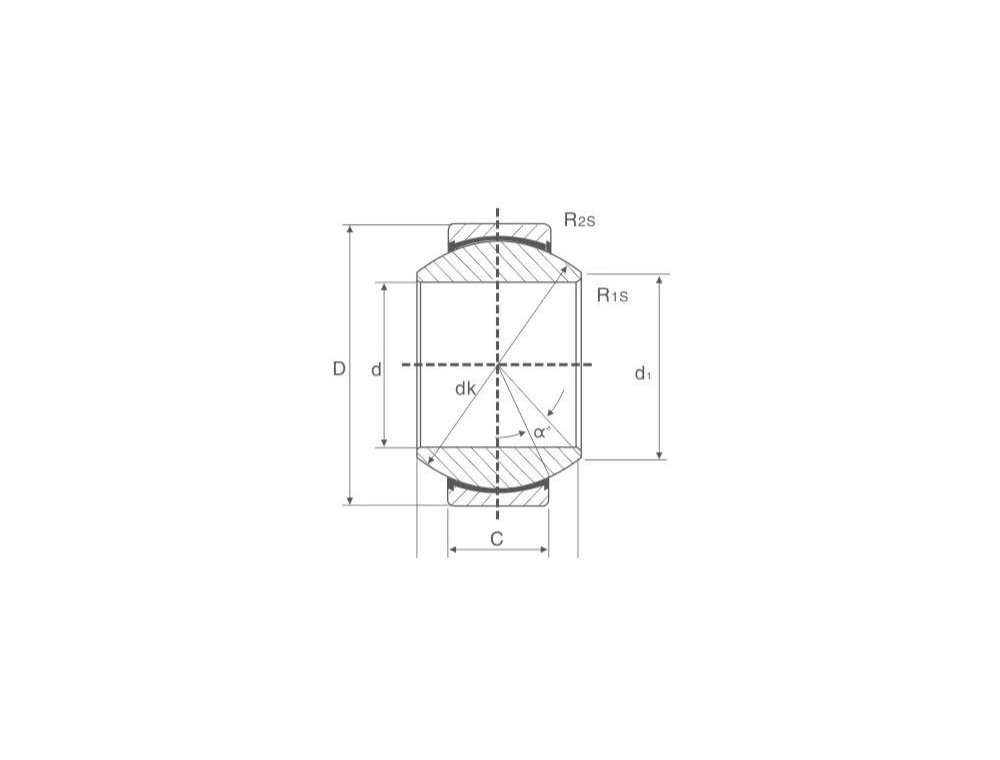

GE ET 2RS Spherical Plain Bearing is a documented maintenance-free series for industrial linkage or pivot applications. Maintenance-free PTFE fabric lining; seals on both sides. Use the main image for identification and the full product description for model-by-model dimensions and load data.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
GE ET 2RS combines a PTFE-fabric sliding layer with seals on both sides of the outer ring. The construction is maintenance-free and covers 15–120 mm bores in the supplied catalogue. The inner spherical surface is chromium plated and the outer ring is phosphate treated.
| Model | Bore d (mm) | Outside D (mm) | B (mm) | C (mm) | Tilt α (°) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| GE15ET 2RS | 15 | 26 | 12 | 9 | 9 | 26 | 52 | 35 |
| GE17ET 2RS | 17 | 30 | 14 | 10 | 10 | 30 | 60 | 41 |
| GE20ET 2RS | 20 | 35 | 16 | 12 | 9 | 42 | 83 | 66 |
| GE25ET 2RS | 25 | 42 | 20 | 16 | 7 | 68 | 137 | 119 |
| GE30ET 2RS | 30 | 47 | 22 | 18 | 6 | 88 | 176 | 153 |
| GE35ET 2RS | 35 | 55 | 25 | 20 | 6 | 112 | 224 | 233 |
| GE40ET 2RS | 40 | 62 | 28 | 22 | 7 | 140 | 280 | 306 |
| GE45ET 2RS | 45 | 68 | 32 | 25 | 7 | 180 | 360 | 427 |
| GE50ET 2RS | 50 | 75 | 35 | 28 | 6 | 220 | 440 | 546 |
| GE60ET 2RS | 60 | 90 | 44 | 36 | 6 | 345 | 695 | 1040 |
| GE70ET 2RS | 70 | 105 | 49 | 40 | 6 | 440 | 880 | 1550 |
| GE80ET 2RS | 80 | 120 | 55 | 45 | 6 | 567 | 1140 | 2310 |
| GE90ET 2RS | 90 | 130 | 60 | 50 | 5 | 690 | 1370 | 2750 |
| GE100ET 2RS | 100 | 150 | 70 | 55 | 7 | 858 | 1730 | 4450 |
| GE110ET 2RS | 110 | 160 | 70 | 55 | 6 | 924 | 1860 | 4820 |
| GE120ET 2RS | 120 | 180 | 85 | 70 | 6 | 1340 | 2700 | 8050 |
The 2RS seals are useful where the bearing is exposed, but they do not remove the need to check housing fit and articulation space. Select from shaft diameter and envelope dimensions, then compare dynamic/static ratings.
Do not plan routine relubrication for this maintenance-free PTFE-fabric series. Protect the seals from cutting during installation and keep the bearing centered so the seal lips are not dragged against a shoulder.
GE C is a smaller maintenance-free PTFE-composite family; GIR/GAR ET 2RS puts a maintenance-free spherical insert into a threaded rod-end housing; GE E / GE ES 2RS is the serviceable alternative.
