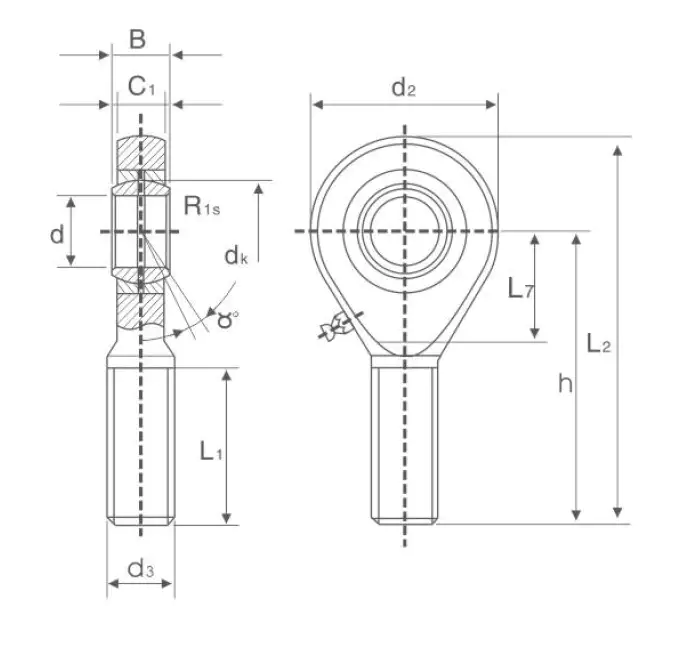

SA ES Rod End Bearing is a documented maintenance required series for industrial linkage or pivot applications. Male-thread rod-end housing; ge e(s)/ge es 2rs bearing construction. Use the main image for identification and the full product description for model-by-model dimensions and load data.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
SA ES is the male-thread version of the serviceable spherical-plain-bearing rod end. A radial bearing insert sits in the eye while the shank screws into the mating linkage. The supplied catalogue runs from 6 to 80 mm bore, covering compact actuators through much larger pivot joints.
| Model | Bore d (mm) | Male Thread | B (mm) | C1 (mm) | Reference L (mm) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| SA6ES | 6 | M6x1.0 | 6 | 4.4 | 46.5 | 3.4 | 8.15 | 17 |
| SA8ES | 8 | M8x1.25 | 8 | 6 | 54 | 5.5 | 12.9 | 29 |
| SA10ES | 10 | M10x1.5 | 9 | 7 | 62.5 | 8.15 | 17.6 | 51 |
| SA12ES | 12 | M12x1.75 | 10 | 8 | 71 | 10.8 | 24.5 | 86 |
| SA15ES | 15 | M14x2.0 | 12 | 10 | 83 | 17.0 | 36.0 | 140 |
| SA17ES | 17 | M16x2.0 | 14 | 11 | 92 | 21.2 | 45.0 | 190 |
| SA20ES | 20 | M20x1.5 | 16 | 13 | 104.5 | 30.0 | 60.0 | 310 |
| SA25ES | 25 | M24x2.0 | 20 | 17 | 126 | 48.0 | 83.0 | 560 |
| SA30ES | 30 | M30x2.0 | 22 | 19 | 146.5 | 62.0 | 110 | 890 |
| SA35ES | 35 | M36x3.0 | 25 | 21 | 181 | 80.0 | 146 | 1400 |
| SA40ES | 40 | M39x3.0 | 28 | 23 | 196 | 100 | 180 | 1800 |
| SA45ES | 45 | M42x3.0 | 32 | 27 | 214 | 127 | 240 | 2600 |
| SA50ES | 50 | M45x3.0 | 35 | 30 | 241 | 156 | 290 | 3400 |
| SA60ES | 60 | M52x3.0 | 44 | 38 | 277.5 | 245 | 450 | 5900 |
| SA70ES | 70 | M56x4.0 | 49 | 42 | 315 | 315 | 610 | 8200 |
| SA80ES | 80 | M64x4.0 | 55 | 47 | 360 | 400 | 750 | 12000 |
The first sizing conversation should include pin diameter, male thread, required center distance and whether a sealed insert is needed. Compare both dynamic and static ratings, then check how the load reverses in the actual machine.
Install with the joint centered through its normal working range. Grease access must not be blocked by the rod or adjacent plates.
SI ES provides female threads; GE E / GE ES 2RS is useful when the surrounding component already acts as the bearing housing; GAR C / GAR ET 2RS is the maintenance-free male-thread family.
