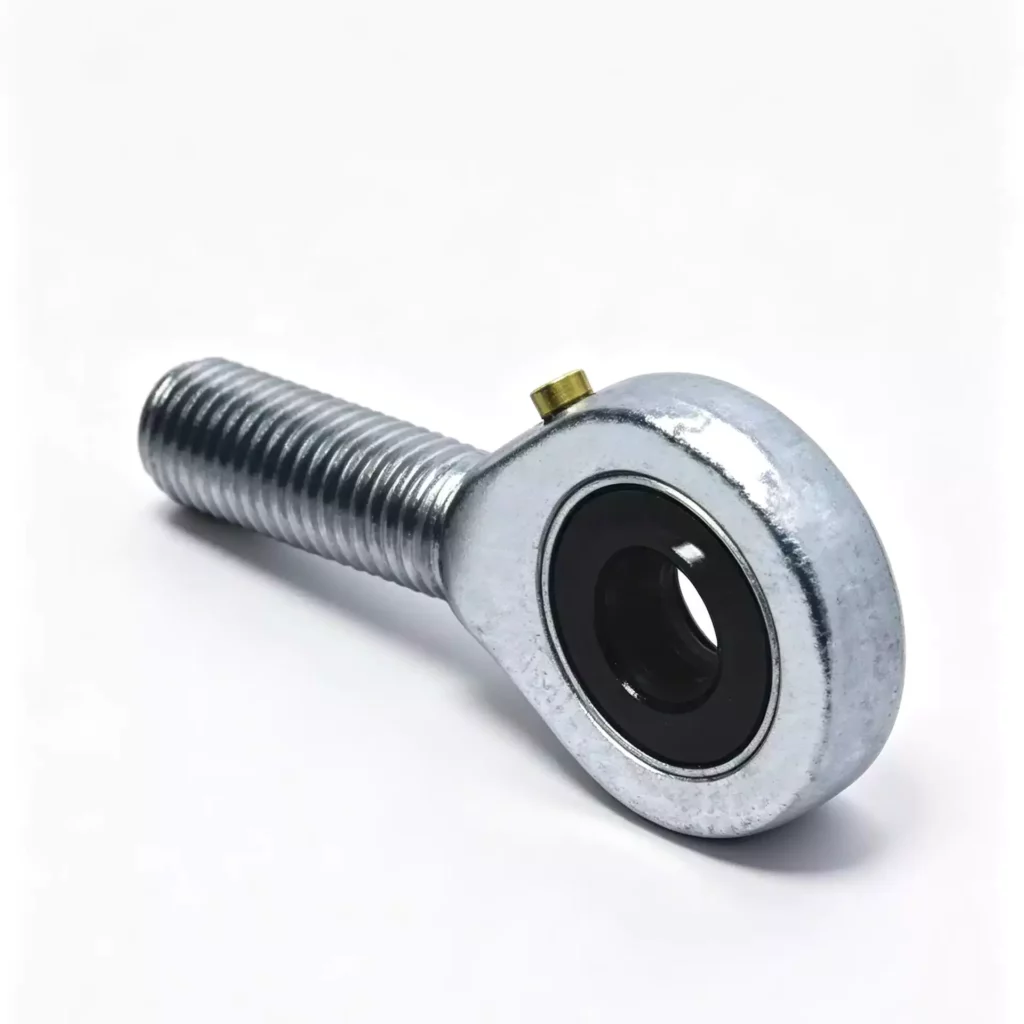

SA ES is the male-thread version of the serviceable spherical-plain-bearing rod end. A radial bearing insert sits in the eye while the shank screws into the mating linkage. The supplied catalogue runs from 6 to 80 mm bore, covering compact actuators through much larger pivot joints.
Key Features
Technical Drawing
Technical Specifications
| Model | Bore d (mm) | Male Thread | B (mm) | C1 (mm) | Reference L (mm) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| SA6ES | 6 | M6x1.0 | 6 | 4.4 | 46.5 | 3.4 | 8.15 | 17 |
| SA8ES | 8 | M8x1.25 | 8 | 6 | 54 | 5.5 | 12.9 | 29 |
| SA10ES | 10 | M10x1.5 | 9 | 7 | 62.5 | 8.15 | 17.6 | 51 |
| SA12ES | 12 | M12x1.75 | 10 | 8 | 71 | 10.8 | 24.5 | 86 |
| SA15ES | 15 | M14x2.0 | 12 | 10 | 83 | 17.0 | 36.0 | 140 |
| SA17ES | 17 | M16x2.0 | 14 | 11 | 92 | 21.2 | 45.0 | 190 |
| SA20ES | 20 | M20x1.5 | 16 | 13 | 104.5 | 30.0 | 60.0 | 310 |
| SA25ES | 25 | M24x2.0 | 20 | 17 | 126 | 48.0 | 83.0 | 560 |
| SA30ES | 30 | M30x2.0 | 22 | 19 | 146.5 | 62.0 | 110 | 890 |
| SA35ES | 35 | M36x3.0 | 25 | 21 | 181 | 80.0 | 146 | 1400 |
| SA40ES | 40 | M39x3.0 | 28 | 23 | 196 | 100 | 180 | 1800 |
| SA45ES | 45 | M42x3.0 | 32 | 27 | 214 | 127 | 240 | 2600 |
| SA50ES | 50 | M45x3.0 | 35 | 30 | 241 | 156 | 290 | 3400 |
| SA60ES | 60 | M52x3.0 | 44 | 38 | 277.5 | 245 | 450 | 5900 |
| SA70ES | 70 | M56x4.0 | 49 | 42 | 315 | 315 | 610 | 8200 |
| SA80ES | 80 | M64x4.0 | 55 | 47 | 360 | 400 | 750 | 12000 |
Typical Applications
Selection Guide
The first sizing conversation should include pin diameter, male thread, required center distance and whether a sealed insert is needed. Compare both dynamic and static ratings, then check how the load reverses in the actual machine.
Installation & Maintenance
Install with the joint centered through its normal working range. Grease access must not be blocked by the rod or adjacent plates.
Related Bearings
SI ES provides female threads; GE E / GE ES 2RS is useful when the surrounding component already acts as the bearing housing; GAR C / GAR ET 2RS is the maintenance-free male-thread family.
