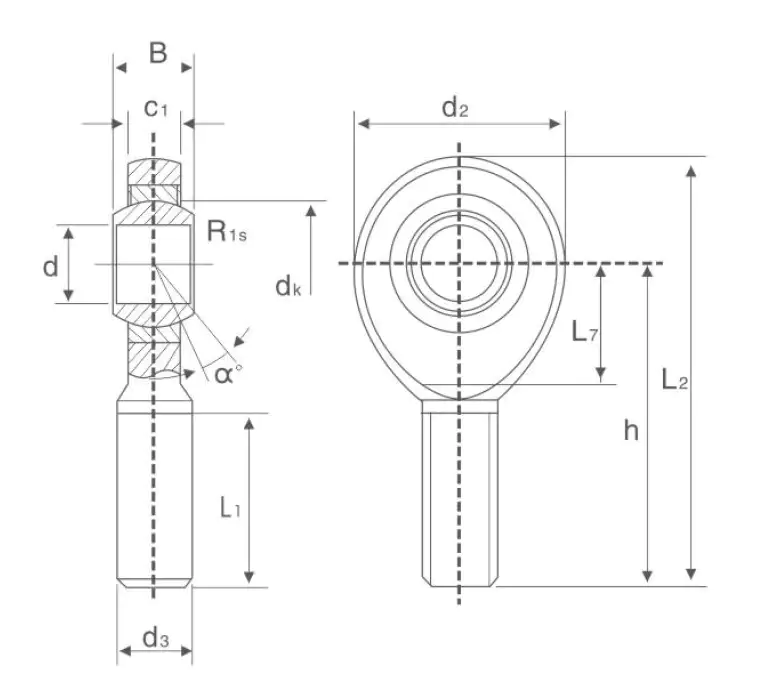

GAR C / GAR ET 2RS Rod End Bearing is a documented maintenance-free series for industrial linkage or pivot applications. Maintenance-free spherical bearing insert; male threaded shank. Use the main image for identification and the full product description for model-by-model dimensions and load data.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
GAR C / GAR ET 2RS places the maintenance-free spherical bearing arrangement on a male threaded shank. It is useful when the rod end must screw directly into a substantial coupling or actuator component and routine lubrication access would be awkward. The published bore range is 6–80 mm.
| Model | Bore d (mm) | Male Thread | B (mm) | C1 (mm) | Reference L (mm) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| GAR6C | 6 | M6x1.0 | 6 | 4.4 | 36 | 3.6 | 8.15 | 17 |
| GAR8C | 8 | M8x1.25 | 8 | 6 | 42 | 5.85 | 12.9 | 29 |
| GAR10C | 10 | M10x1.5 | 9 | 7 | 48 | 8.65 | 17.6 | 51 |
| GAR12C | 12 | M12x1.75 | 10 | 8 | 54 | 11.4 | 24.5 | 86 |
| GAR15C | 15 | M14x2.0 | 12 | 10 | 63 | 17.6 | 36 | 140 |
| GAR17C | 17 | M16x2.0 | 14 | 11 | 69 | 22.4 | 45 | 190 |
| GAR20C | 20 | M20x1.5 | 16 | 13 | 78 | 31.5 | 60 | 310 |
| GAR25C | 25 | M24x2.0 | 20 | 17 | 94 | 51 | 83 | 560 |
| GAR30C | 30 | M30x2.0 | 22 | 19 | 110 | 66.5 | 110 | 890 |
| GAR35ET2RS | 35 | M36x3.0 | 25 | 21 | 140 | 112 | 146 | 1400 |
| GAR40ET2RS | 40 | M39x3.0 | 28 | 23 | 150 | 140 | 180 | 1800 |
| GAR45ET2RS | 45 | M42x3.0 | 32 | 27 | 163 | 180 | 240 | 2600 |
| GAR50ET2RS | 50 | M45x3.0 | 35 | 30 | 185 | 220 | 290 | 3400 |
| GAR60ET2RS | 60 | M52x3.0 | 44 | 38 | 210 | 345 | 450 | 5900 |
| GAR70ET2RS | 70 | M56x4.0 | 49 | 42 | 235 | 440 | 610 | 8200 |
| GAR80ET2RS | 80 | M64x4.0 | 55 | 47 | 270 | 570 | 750 | 12000 |
Confirm the suffix as well as the nominal size. Then review thread engagement, pin diameter, joint angle and load direction.
No periodic relubrication is intended for this family. Keep the joint free from welding spatter, paint and abrasive dirt, and do not use a seized rod end to force a linkage into position.
GIR C / GIR ET 2RS gives female threads; SA ES is the serviceable male-thread alternative; GE ET 2RS fits directly into a housing when a rod-end shank is unnecessary.
