GE E / GE ES 2RS Spherical Plain Bearing is a documented maintenance required series for industrial linkage or pivot applications. Maintenance-required radial spherical bearing; single axial split in the outer ring. Use the main image for identification and the full product description for model-by-model dimensions and load data.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
GE E / GE ES 2RS is the standard serviceable radial spherical plain bearing family in the supplied catalogue. The inner and outer rings form a spherical sliding pair that can accommodate alignment movement while carrying radial load and, within the application limits, axial components. Bore sizes run from 6 to 160 mm.

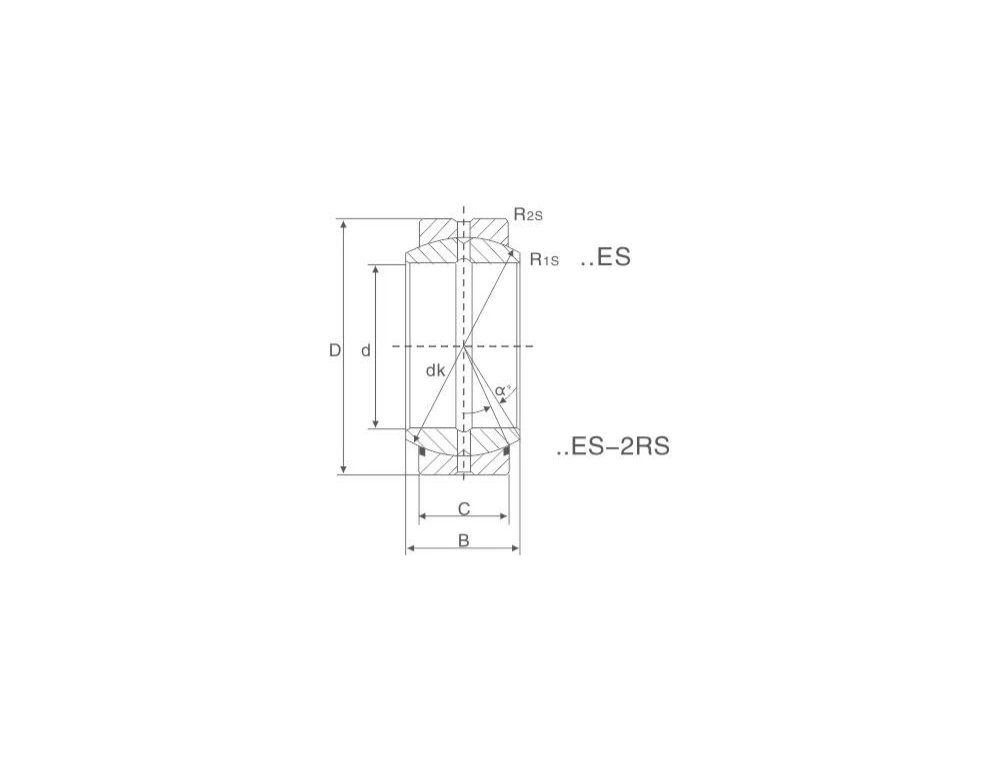

| Model | Bore d (mm) | Outside D (mm) | B (mm) | C (mm) | Tilt α (°) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| GE6E | 6 | 14 | 6 | 4 | 13 | 3.4 | 17 | 4 |
| GE8E | 8 | 16 | 8 | 5 | 15 | 5.5 | 27.5 | 7 |
| GE10E | 10 | 19 | 9 | 6 | 12 | 8.15 | 40.5 | 11 |
| GE12E | 12 | 22 | 10 | 7 | 11 | 10.8 | 54 | 16 |
| GE15ES / GE15ES 2RS | 15 | 26 | 12 | 9 | 8 | 17 | 85 | 25 |
| GE16ES / GE16ES 2RS | 16 | 30 | 14 | 10 | 10 | 21.2 | 106 | 41 |
| GE17ES / GE17ES 2RS | 17 | 30 | 14 | 10 | 10 | 21.2 | 106 | 41 |
| GE20ES / GE20ES 2RS | 20 | 35 | 16 | 12 | 9 | 30 | 146 | 61 |
| GE25ES / GE25ES 2RS | 25 | 42 | 20 | 16 | 7 | 48 | 240 | 110 |
| GE30ES / GE30ES 2RS | 30 | 47 | 22 | 18 | 6 | 62 | 310 | 140 |
| GE35ES / GE35ES 2RS | 35 | 55 | 25 | 20 | 6 | 80 | 400 | 220 |
| GE40ES / GE40ES 2RS | 40 | 62 | 28 | 22 | 7 | 100 | 500 | 300 |
| GE45ES / GE45ES 2RS | 45 | 68 | 32 | 25 | 7 | 127 | 640 | 400 |
| GE50ES / GE50ES 2RS | 50 | 75 | 35 | 28 | 6 | 156 | 780 | 540 |
| GE60ES / GE60ES 2RS | 60 | 90 | 44 | 36 | 6 | 245 | 1220 | 1000 |
| GE70ES / GE70ES 2RS | 70 | 105 | 49 | 40 | 6 | 315 | 1560 | 1500 |
| GE80ES / GE80ES 2RS | 80 | 120 | 55 | 45 | 6 | 400 | 2000 | 2200 |
| GE90ES / GE90ES 2RS | 90 | 130 | 60 | 50 | 5 | 490 | 2450 | 2700 |
| GE100ES / GE100ES 2RS | 100 | 150 | 70 | 55 | 7 | 610 | 3050 | 4300 |
| GE110ES / GE110ES 2RS | 110 | 160 | 70 | 55 | 6 | 655 | 3250 | 4700 |
| GE120ES / GE120ES 2RS | 120 | 180 | 85 | 70 | 6 | 950 | 4750 | 8000 |
| GE140ES / GE140ES 2RS | 140 | 210 | 90 | 70 | 7 | 1080 | 5400 | 11000 |
| GE160ES / GE160ES 2RS | 160 | 230 | 105 | 80 | 8 | 1360 | 6800 | 14000 |
Choose the bearing around the shaft diameter and housing envelope, then compare dynamic and static ratings with the real duty. Oscillating amplitude, load direction, pin stiffness and lubrication conditions all affect service behavior.
These bearings require maintenance. Provide a lubricant route through the surrounding housing and keep grooves and holes aligned with that supply path. For 2RS variants, protect the seals during pressing.
GEG E / GEG ES 2RS provides a heavier envelope; PB uses a bronze liner for smaller serviceable bearings; GE ET 2RS is a maintenance-free PTFE-fabric alternative.
