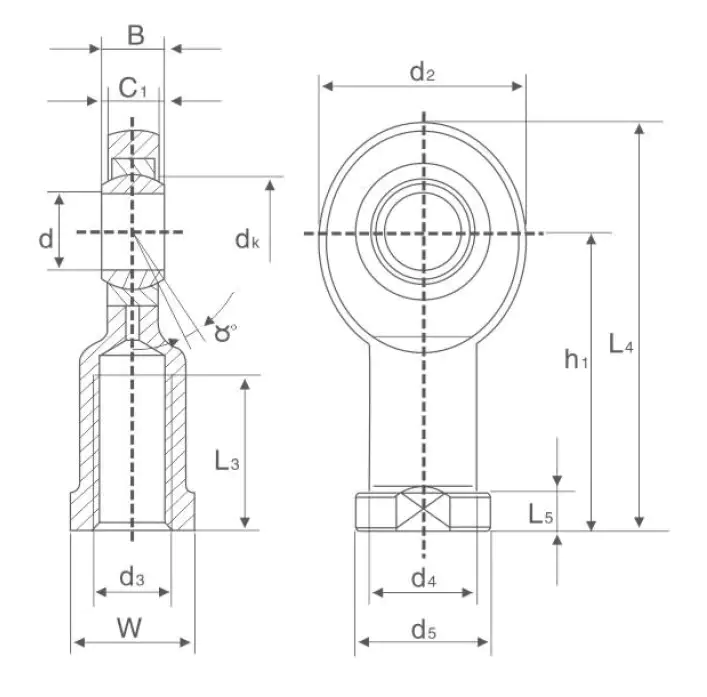

GIR C / GIR ET 2RS Rod End Bearing is a documented maintenance-free series for industrial linkage or pivot applications. Maintenance-free radial bearing insert; female threaded rod-end body. Use the main image for identification and the full product description for model-by-model dimensions and load data.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
GIR C / GIR ET 2RS gives a larger maintenance-free female-thread option by combining a rod-end housing with a self-lubricating radial spherical plain bearing. The catalogue transitions from C models in smaller bores to ET 2RS models in larger sizes and spans 6–80 mm.
| Model | Bore d (mm) | Female Thread | B (mm) | C1 (mm) | Reference L (mm) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| GIR6C | 6 | M6x1.0 | 6 | 4.4 | 30 | 3.6 | 8.15 | 21 |
| GIR8C | 8 | M8x1.25 | 8 | 6 | 36 | 5.85 | 12.9 | 39 |
| GIR10C | 10 | M10x1.5 | 9 | 7 | 43 | 8.65 | 17.6 | 61 |
| GIR12C | 12 | M12x1.75 | 10 | 8 | 50 | 11.4 | 24.5 | 96 |
| GIR15C | 15 | M14x2.0 | 12 | 10 | 61 | 17.6 | 36 | 180 |
| GIR17C | 17 | M16x2.0 | 14 | 11 | 67 | 22.4 | 45 | 220 |
| GIR20C | 20 | M20x1.5 | 16 | 13 | 77 | 31.5 | 60 | 350 |
| GIR25C | 25 | M24x2.0 | 20 | 17 | 94 | 51.0 | 83 | 640 |
| GIR30C | 30 | M30x2.0 | 22 | 19 | 110 | 66.5 | 110 | 930 |
| GIR35ET2RS | 35 | M36x3.0 | 25 | 21 | 125 | 112 | 146 | 1300 |
| GIR40ET2RS | 40 | M39x3.0 | 28 | 23 | 142 | 140 | 180 | 2000 |
| GIR45ET2RS | 45 | M42x3.0 | 32 | 27 | 145 | 180 | 240 | 2500 |
| GIR50ET2RS | 50 | M45x3.0 | 35 | 30 | 160 | 220 | 290 | 3500 |
| GIR60ET2RS | 60 | M52x3.0 | 44 | 38 | 175 | 345 | 450 | 5500 |
| GIR70ET2RS | 70 | M56x4.0 | 49 | 42 | 200 | 440 | 610 | 8600 |
| GIR80ET2RS | 80 | M64x4.0 | 55 | 47 | 230 | 570 | 750 | 12000 |
Do not treat C and ET 2RS as a cosmetic suffix change. Confirm the exact variant alongside bore, female thread and environment, then review the tabulated loads.
These versions are specified as maintenance-free, so access for periodic greasing is not the design driver.
GAR C / GAR ET 2RS is the male-thread counterpart; SI ES is the serviceable female-thread option; GE ET 2RS is the maintenance-free spherical bearing family without a rod-end housing.
