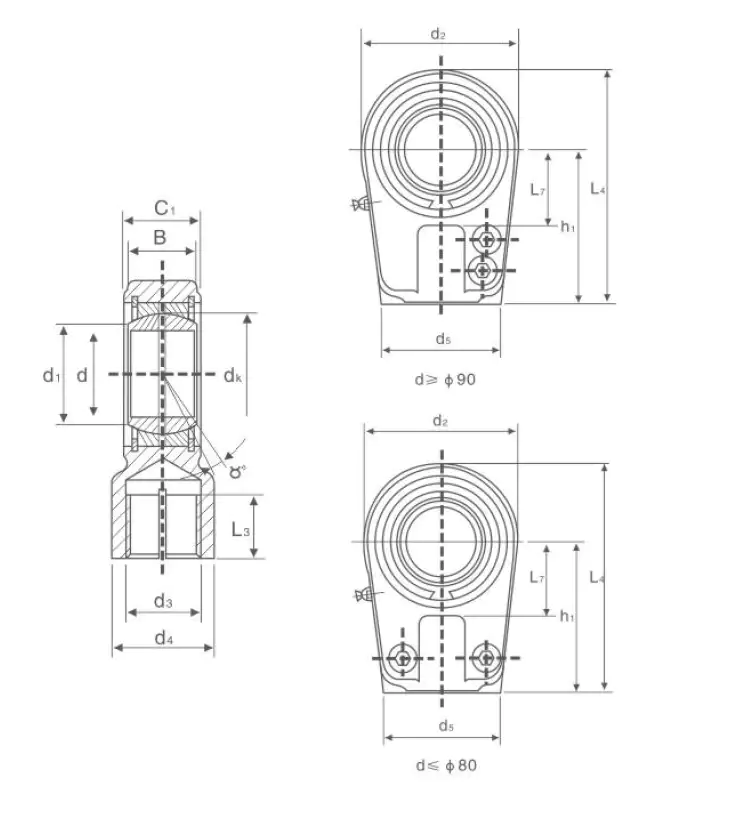

GIHR DO Heavy-Duty Rod End Housing is a documented maintenance required series for industrial linkage or pivot applications. Heavy rod-end housing with female thread; locking slot and locking hardware. Use the main image for identification and the full product description for model-by-model dimensions and load data.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
GIHR DO is a heavy-duty female-thread rod-end housing for larger linkage loads. The housing combines a radial GE..ES or GE..ES 2RS spherical plain bearing with locking hardware and a grease path. The supplied range begins at 20 mm bore and extends to 120 mm.
| Model | Bore d (mm) | Female Thread | B (mm) | C1 (mm) | Reference L (mm) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| GIHR-K20DO | 20 | M16x1.5 | 16 | 19 | 50 | 30 | 72 | 430 |
| GIHR-K25DO | 25 | M16x1.5 | 20 | 23 | 50 | 48 | 72 | 480 |
| GIHR-K30DO | 30 | M22x1.5 | 22 | 28 | 60 | 62 | 106 | 740 |
| GIHR-K35DO | 35 | M28x1.5 | 25 | 30 | 70 | 80 | 153 | 1200 |
| GIHR-K40DO | 40 | M35x1.5 | 28 | 35 | 85 | 100 | 250 | 2000 |
| GIHR-K50DO | 50 | M45x1.5 | 35 | 40 | 105 | 156 | 365 | 3800 |
| GIHR-K60DO | 60 | M58x1.5 | 44 | 50 | 130 | 245 | 400 | 5400 |
| GIHR-K70DO | 70 | M65x1.5 | 49 | 55 | 150 | 315 | 540 | 8500 |
| GIHR-K80DO | 80 | M80x2.0 | 55 | 60 | 170 | 400 | 670 | 12000 |
| GIHR-K90DO | 90 | M100x2.0 | 60 | 65 | 210 | 490 | 980 | 21500 |
| GIHR-K100DO | 100 | M110x2.0 | 70 | 70 | 235 | 610 | 1120 | 27500 |
| GIHR-K110DO | 110 | M120x3.0 | 70 | 80 | 265 | 655 | 1700 | 40500 |
| GIHR-K120DO | 120 | M130x3.0 | 85 | 90 | 310 | 950 | 2900 | 76000 |
Because the threaded body is large, verify more than the nominal thread. Check the full housing envelope, locknut space and adjustment range.
Set the locking hardware after the linkage has been aligned; using the locknut to pull a misaligned structure together creates unwanted side load.
GIHN K LO offers another heavy locking arrangement over a 12–125 mm bore range; GK DO combines a female thread with a weldable base; SI ES is a lighter serviceable female-thread rod end.
