WP-SSBP is a standard duty water-proof thermoplastic bearing units series for thermoplastic mounted support intended for wet or frequent-cleaning environments. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
WP-SSBP is a standard duty series configured around water-proof thermoplastic pillow block. Its catalogue definition uses setscrew locking, with individual bore and dimensional variants retained in one model table.
The page keeps the full series together because housing geometry and locking method define the product family more clearly than a single bore size. Exact unit numbers remain in the source table for side-by-side checking.
The series can also be compared with other mounted-bearing families when the machine design is still open. Start from the bearing index, then return to the drawing that best matches the mounting interface. Browse related bearing families.
WP-SSBP is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is water-proof thermoplastic pillow block, intended for thermoplastic mounted support intended for wet or frequent-cleaning environments.
Water-proof thermoplastic housing; corrosion-resistant configuration. Confirm the selected insert, seal, grease and cover arrangement for the actual cleaning or corrosion exposure.
Use these identifiers as the first selection gate. They capture the catalogue family, duty, locking and mounting form, while the numerical model rows remain grouped in the source table below.
| Series | WP-SSBP |
|---|---|
| Catalogue Reference | Part B, page B94 |
| Product Family | Water-Proof Thermoplastic Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Setscrew locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | water-proof thermoplastic pillow block |
| Material Note | Water-proof thermoplastic housing; corrosion-resistant configuration |

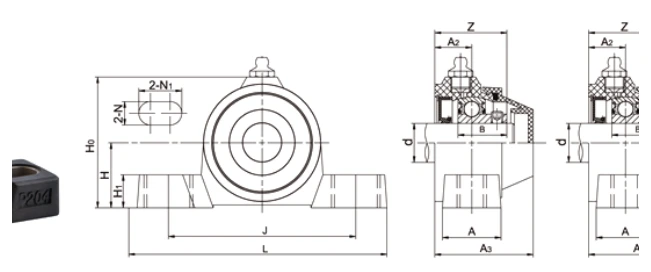

When replacing an installed unit, use the outline drawing as a dimensional fingerprint. Match the fixed machine dimensions before relying on a partially legible model code or a visually similar housing.
WP-SSBP is relevant when washdown conveyors requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For processing and packaging lines, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
WP-SSBP is relevant when equipment exposed to moisture requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.

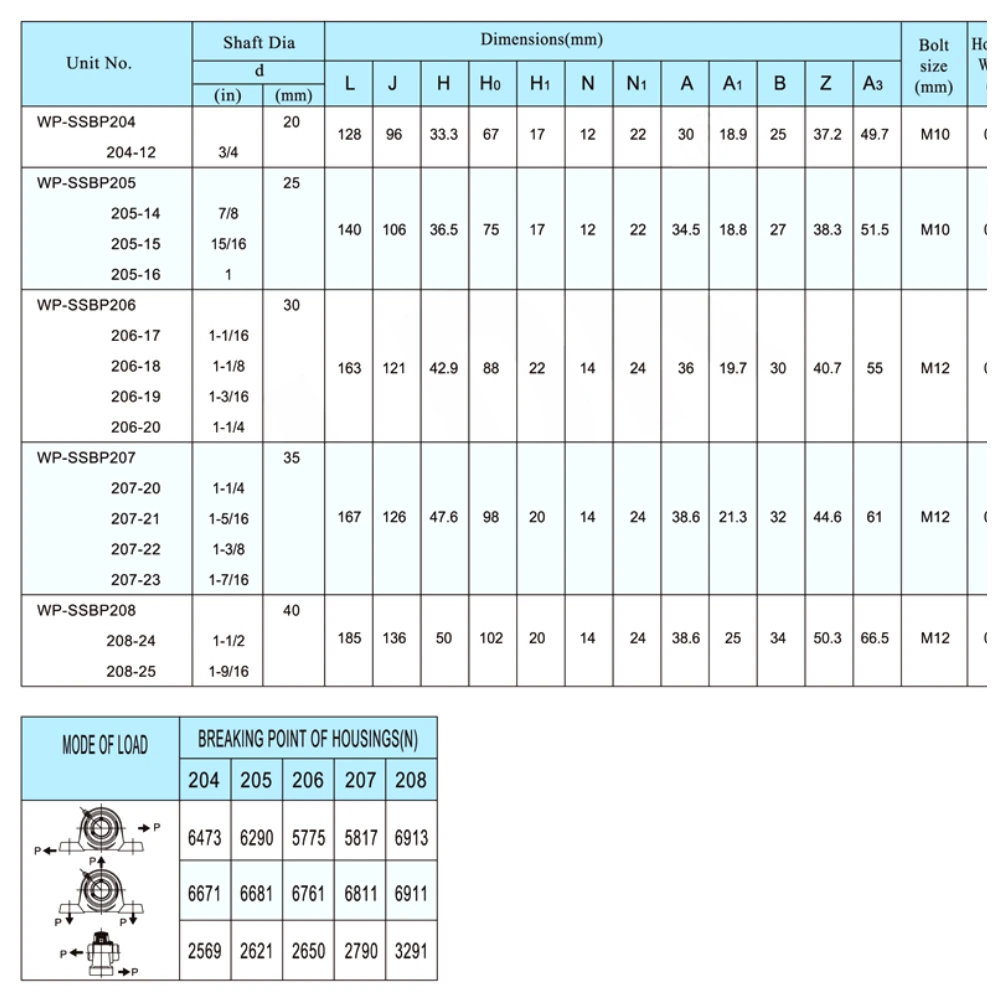

The dimensional data is retained as one complete source table. This is especially useful when adjacent sizes share a housing but differ in shaft, inner-ring or mounting dimensions.
Where several series share a similar housing silhouette, the deciding details are usually locking method, duty class and one or two mounting dimensions. Verify those before comparing the remaining model rows. In this family, the intended role is thermoplastic mounted support intended for wet or frequent-cleaning environments.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | housing footprint |
| 3 | seal/cover requirement |
| 4 | cleaning environment and locking method |
The model code should be verified together with its dimensional row. This is particularly important where metric and inch variants share similar housings but differ at the shaft interface.
Share the catalogue unit you are considering plus quantity and the machine drawing. If the unit number is unknown, measured shaft and mounting dimensions can be used to narrow the series first. Ever Power Netherlands Branch can review the quotation basis against the same reference.
