UEFL is a standard duty 2-bolt flange bearing units series for compact face mounting with a two-bolt flange footprint. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
UEFL is a standard duty series configured around 2-bolt flange bearing units. Its catalogue definition uses concentric locking, with individual bore and dimensional variants retained in one model table.
The catalogue treats this as a distinct series, so the page below follows the same logic: choose the series by housing and locking arrangement, then match the exact unit number and dimensions in the supplied table.
If the machine layout is not fixed yet, compare this family with other mounted-bearing formats before choosing the model row. Housing geometry usually narrows the options faster than bore size alone. Browse related bearing families.
UEFL is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is 2-bolt flange bearing units, intended for compact face mounting with a two-bolt flange footprint.
The catalogue identifies concentric locking for this series; confirm the exact row before ordering.
These specifications describe the family, not a single bore size. Use them to confirm the housing and locking concept, then use the catalogue image for the exact dimensional row.
| Series | UEFL |
|---|---|
| Catalogue Reference | Part B, page B31 |
| Product Family | 2-Bolt Flange Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Concentric locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | 2-Bolt Flange Bearing Units |
| Material Note | Material varies by unit; confirm selected model |

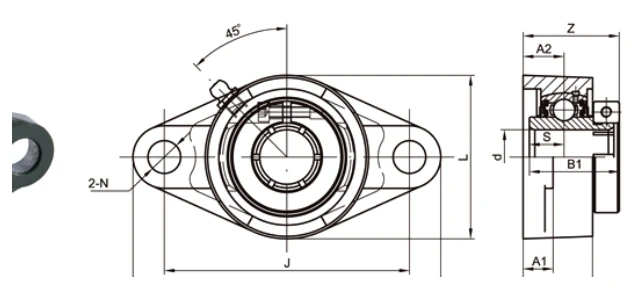

Check this outline against the machine frame before fixing the bore or unit number. The drawing shows the series geometry; the table below carries the model-by-model dimensions for the same family.
For conveyors and small handling systems, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
UEFL is relevant when packaging machinery requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For general industrial frames, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.

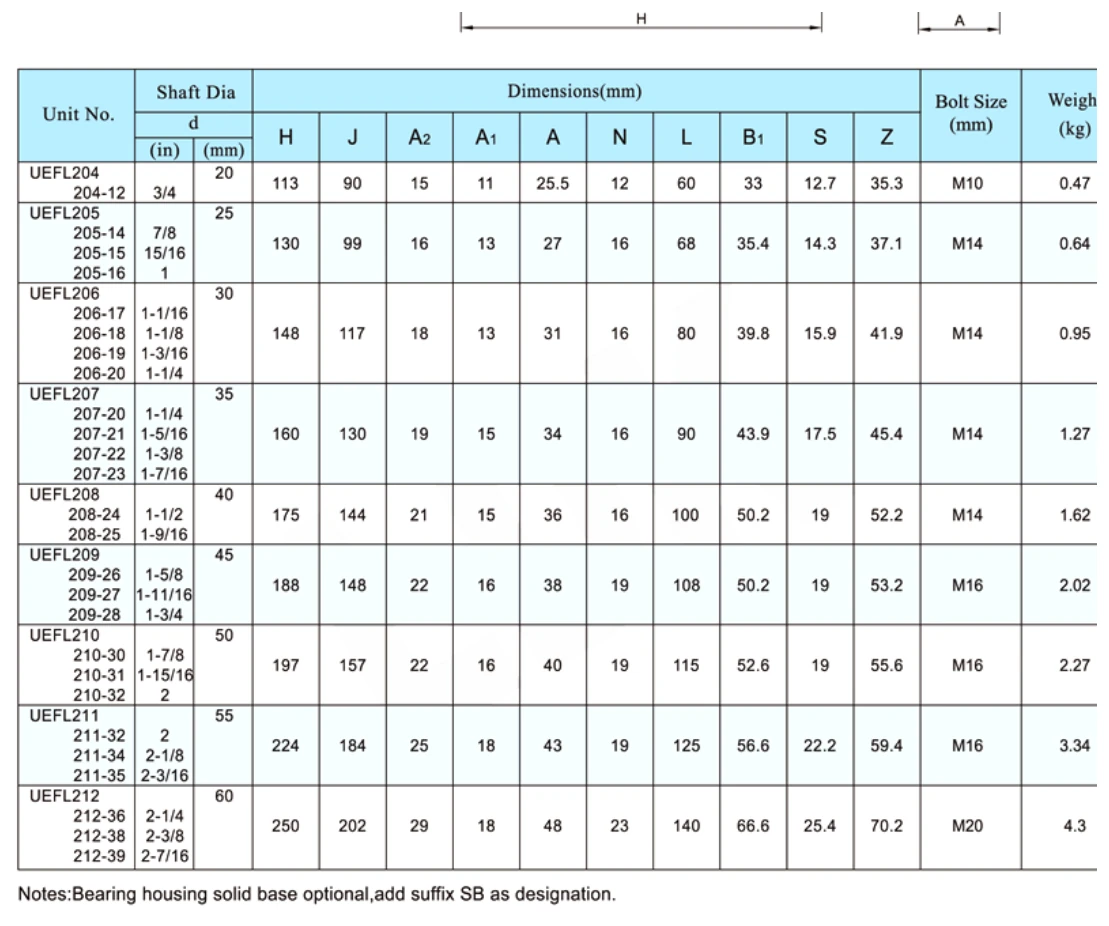

The dimensional data is retained as one complete source table. This is especially useful when adjacent sizes share a housing but differ in shaft, inner-ring or mounting dimensions.
For new equipment, select the housing format before finalizing the shaft detail. For replacement work, reverse the process and measure the existing shaft and frame so the catalogue drawing can be matched directly. In this family, the intended role is compact face mounting with a two-bolt flange footprint.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | two-bolt spacing |
| 3 | housing orientation |
| 4 | locking method and shaft alignment |
The model code should be verified together with its dimensional row. This is particularly important where metric and inch variants share similar housings but differ at the shaft interface.
Share the catalogue unit you are considering plus quantity and the machine drawing. If the unit number is unknown, measured shaft and mounting dimensions can be used to narrow the series first. Ever Power Netherlands Branch can review the quotation basis against the same reference.
