TP-SUETB is a standard duty thermoplastic bearing units series for corrosion-resistant mounted support using thermoplastic housings. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
TP-SUETB is a standard duty series configured around thermoplastic tapped-base pillow block. Its catalogue definition uses setscrew locking, with individual bore and dimensional variants retained in one model table.
This series is organized as one catalogue-level product family rather than one product per bore size. That keeps RFQ work focused on the mounting form and locking method first, while the dimensional table remains available for the final unit selection.
This series sits within the wider bearing catalogue. Use the bearing index when comparing another housing format, then return here to verify the selected series drawing and dimensions. Browse related bearing families.
TP-SUETB is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is thermoplastic tapped-base pillow block, intended for corrosion-resistant mounted support using thermoplastic housings.
Thermoplastic housing; stainless steel insert where stated in catalogue. Confirm the selected insert, seal, grease and cover arrangement for the actual cleaning or corrosion exposure.
The table below records the series-level facts visible in the supplied catalogue heading. Model-specific dimensions are deliberately kept in the original dimensional table so values are not detached from their unit numbers.
| Series | TP-SUETB |
|---|---|
| Catalogue Reference | Part B, page B90 |
| Product Family | Thermoplastic Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Setscrew locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | thermoplastic tapped-base pillow block |
| Material Note | Thermoplastic housing; stainless steel insert where stated in catalogue |

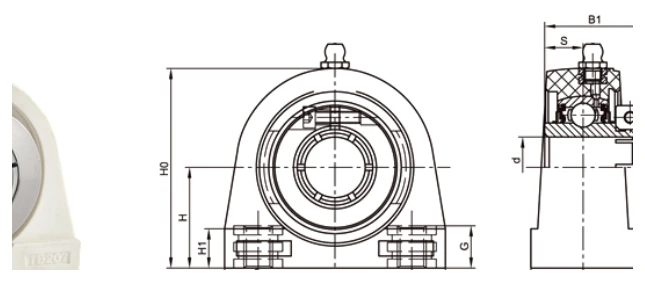

The drawing is placed directly before the dimensional reference because installation space is usually the quickest way to rule a series in or out. Match the drawing labels to the corresponding columns in the catalogue table before releasing an RFQ.
TP-SUETB is relevant when food and beverage handling equipment requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For washdown-prone conveyors, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
TP-SUETB is relevant when packaging and processing machinery requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.

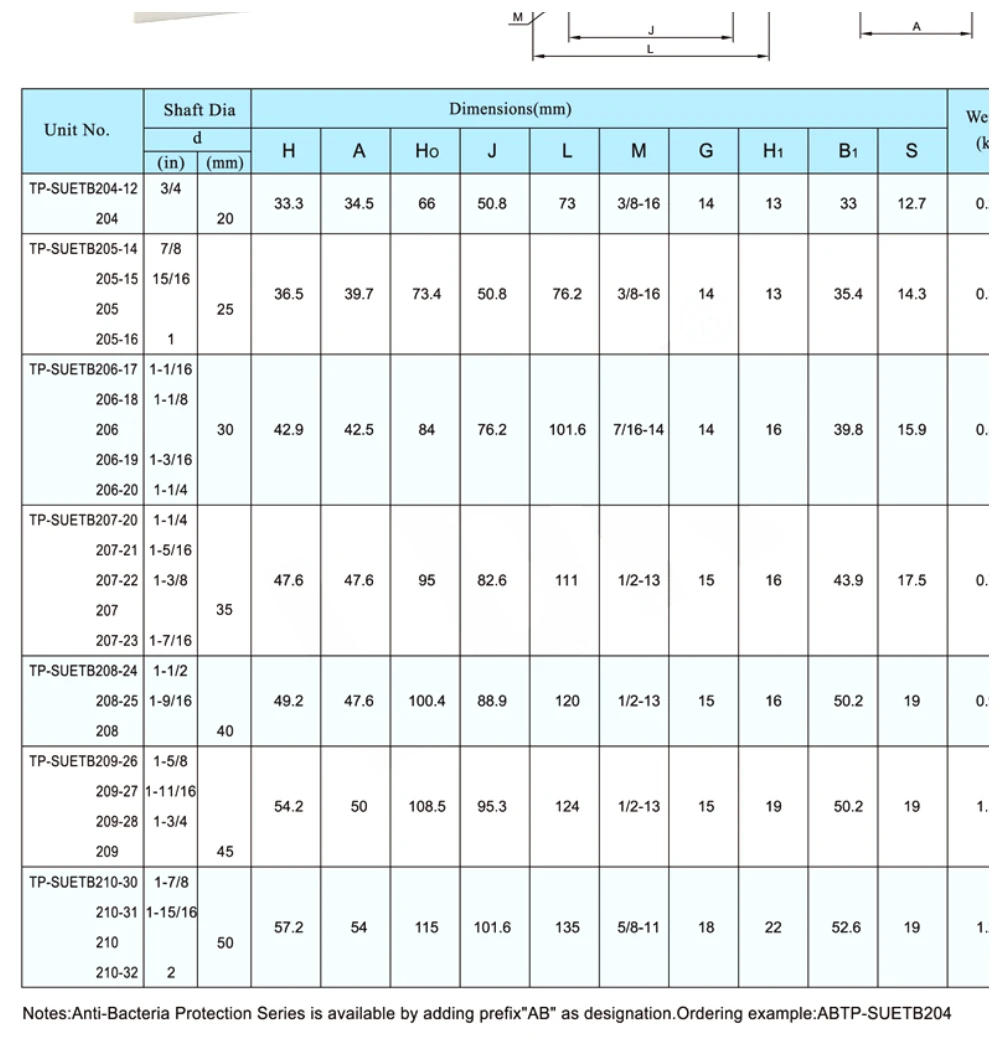

All catalogue rows for this family remain together below. Check the chosen bore or accessory code against the drawing letters, then include that exact unit designation in the RFQ.
Selection should move from fixed machine dimensions to the bearing code: first the mounting interface, then shaft size, then locking method and environment. This avoids choosing a familiar-looking unit that does not match the frame. In this family, the intended role is corrosion-resistant mounted support using thermoplastic housings.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | housing footprint |
| 3 | locking method |
| 4 | cleaning environment, cover and grease requirements |
Series nomenclature helps narrow the choice, but the final check should be made against the model row and installation data. This avoids treating a nearby bore size or housing variant as interchangeable without verification.
Send the preferred unit number or shaft size with a drawing, quantity and mounting constraints. The catalogue page can then be used as a common reference during quotation. Ever Power Netherlands Branch can review the quotation basis against the same reference.
