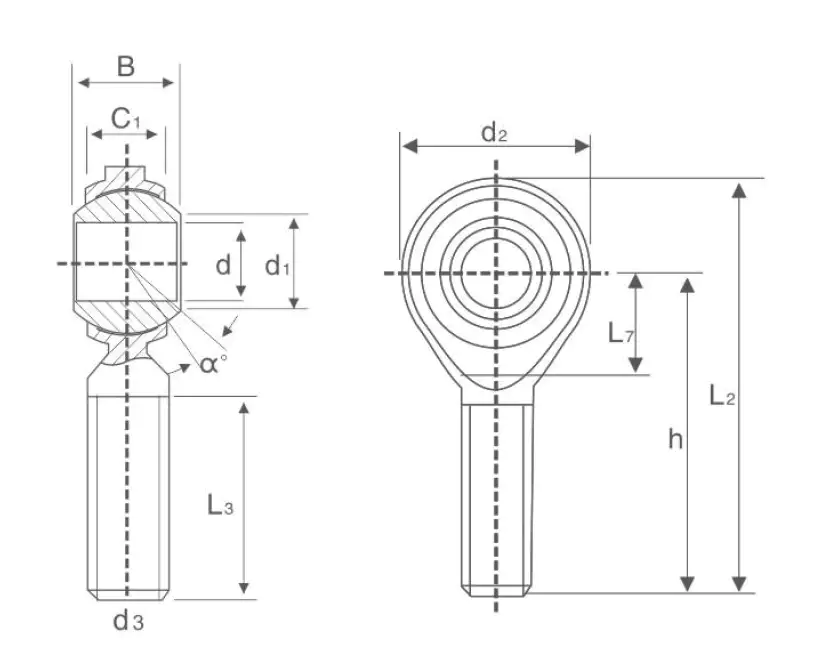

NOS Rod End Bearing is a documented maintenance-free series for industrial linkage or pivot applications. PTFE-composite maintenance-free sliding surface; male metric thread. Use the main image for identification and the full product description for model-by-model dimensions and load data.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
NOS takes the NHS maintenance-free construction and adds an external threaded shank. The result is a small, direct-mount rod end for applications where a tapped linkage can accept the bearing without a separate stud. The supplied range covers 3–25 mm bores and corresponding metric threads.
| Model | Bore d (mm) | Male Thread | B (mm) | C1 (mm) | Reference L (mm) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| NOS3 | 3 | M3x0.5 | 6 | 4.9 | 33 | 1.7 | 2.0 | 10 |
| NOS4 | 4 | M4x0.7 | 7 | 5.25 | 37 | 2.5 | 2.9 | 12 |
| NOS5 | 5 | M5x0.8 | 8 | 6 | 42 | 5.7 | 6.0 | 13 |
| NOS6 | 6 | M6x1.0 | 9 | 6.75 | 46 | 7.2 | 7.65 | 20 |
| NOS8 | 8 | M8x1.25 | 12 | 9 | 54 | 11.6 | 12.9 | 38 |
| NOS10 | 10 | M10x1.5 | 14 | 10.5 | 62 | 14.5 | 18.0 | 55 |
| NOS12 | 12 | M12x1.75 | 16 | 12 | 70 | 17.0 | 24.0 | 85 |
| NOS14 | 14 | M14x2.0 | 19 | 13.5 | 78 | 24.0 | 31.0 | 140 |
| NOS16 | 16 | M16x2.0 | 21 | 15 | 87 | 28.5 | 39.0 | 210 |
| NOS18 | 18 | M18x1.5 | 23 | 16.5 | 94 | 42.5 | 47.5 | 280 |
| NOS20 | 20 | M20x1.5 | 25 | 18 | 103 | 42.5 | 57.0 | 380 |
| NOS22 | 22 | M22x1.5 | 28 | 20 | 111 | 57.0 | 68.0 | 480 |
| NOS25 | 25 | M24x2.0 | 31 | 22 | 124 | 68.0 | 85.0 | 640 |
Check the thread engagement available in the mating part as well as the bearing rating. A high-capacity eye does not compensate for too little thread engagement or a thin receiving boss.
Keep installation torque on the shank and locknut, not on the bearing eye. This is a maintenance-free PTFE-lined joint, so the service plan should focus on cleanliness, play and freedom of movement rather than greasing.
NHS is the female-thread match; SA T/K is a larger maintenance-free male-thread alternative; GAR C / GAR ET 2RS serves heavier male-thread rod-end layouts.
