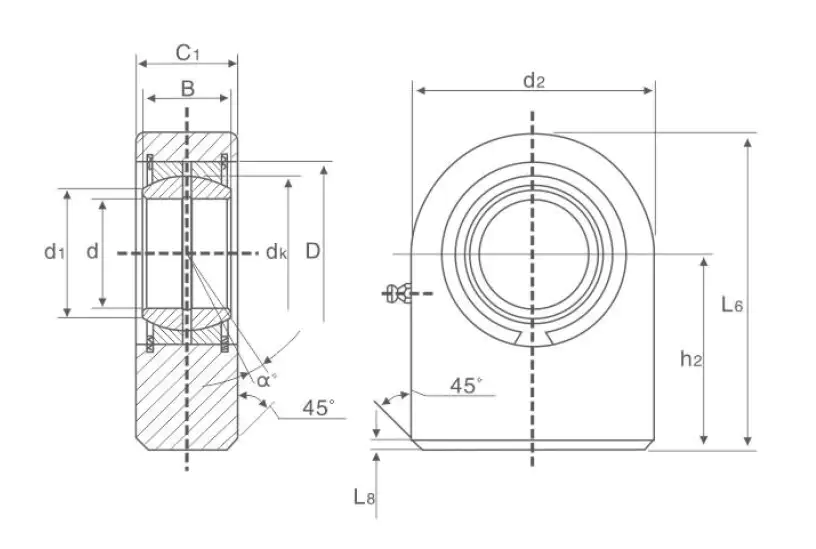

GF DO Weldable Rod End Housing is a documented maintenance required series for industrial linkage or pivot applications. Weldable rod-end base; ge es / ge es 2rs bearing insert. Use the main image for identification and the full product description for model-by-model dimensions and load data.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
GF DO is intended to become part of a fabricated structure. The flat weldable base carries a radial spherical plain bearing and provides a direct pivot point without a separate threaded shank. The series is notably broad, with catalogue bores from 20 to 120 mm.
| Model | Bore d (mm) | C1 (mm) | B (mm) | d2 (mm) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|
| GF20DO | 20 | 19 | 16 | 50 | 30.0 | 67 | 350 |
| GF25DO | 25 | 23 | 20 | 55 | 48 | 69.5 | 530 |
| GF30DO | 30 | 28 | 22 | 65 | 62 | 118 | 870 |
| GF35DO | 35 | 30 | 25 | 83 | 80 | 196 | 1500 |
| GF40DO | 40 | 35 | 28 | 100 | 100 | 300 | 2400 |
| GF45DO | 45 | 40 | 32 | 110 | 127 | 380 | 3400 |
| GF50DO | 50 | 40 | 35 | 123 | 156 | 440 | 4400 |
| GF60DO | 60 | 50 | 44 | 140 | 245 | 570 | 7100 |
| GF70DO | 70 | 55 | 49 | 164 | 315 | 695 | 10500 |
| GF80DO | 80 | 60 | 55 | 180 | 400 | 780 | 15000 |
| GF90DO | 90 | 65 | 60 | 226 | 490 | 1340 | 23500 |
| GF100DO | 100 | 70 | 70 | 250 | 610 | 1500 | 31500 |
| GF110DO | 110 | 80 | 70 | 295 | 655 | 2160 | 48500 |
| GF120DO | 120 | 90 | 85 | 360 | 950 | 3250 | 79000 |
Treat the housing as a weldment first and a bearing second. Check center height, base width and access for the mating pin, then review load ratings. Welding sequence, plate thickness and fixture design can influence alignment.
Remove the bearing from direct exposure to welding heat and spatter wherever the assembly method permits, or use a controlled procedure that protects it.
GK DO adds a female-thread and locating-pin arrangement; GIHR DO covers heavy threaded housings; GE E / GE ES 2RS is suitable when the machine already provides its own bearing seat.
