HL heavy-duty universal joint bearing series with the seven catalogue models and their published dimensions, ratings and weights.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
The HL Series is presented as one Heavy Duty Universal Joint Bearing product because HL is the model family shown on the supplied catalogue page. The seven documented part numbers remain as rows in the technical table; blank H/H1 cells are left blank exactly because the source does not publish values there.
This page covers the HL Series Heavy Duty Universal Joint Bearings as one catalogue series. Individual part numbers remain inside the technical table instead of being published as separate products. The supplied catalogue is the source of record for dimensions, ratings, speed data and weight shown below.
HL-405, HL-404, HL-406, HL-403, HL-403A, HL-407 and HL-402 are kept together as one series.
The catalogue names this family Heavy Duty Universal Joint Bearings. No unsupported capacity claim is added beyond the printed ratings.
Where H or H1 is empty on the source page, the web table shows — rather than an estimated dimension.
Part number, key dimensions, load ratings and weight are searchable and mobile-scrollable.
For the broader range and neighbouring bearing families, visit our bearings catalogue.

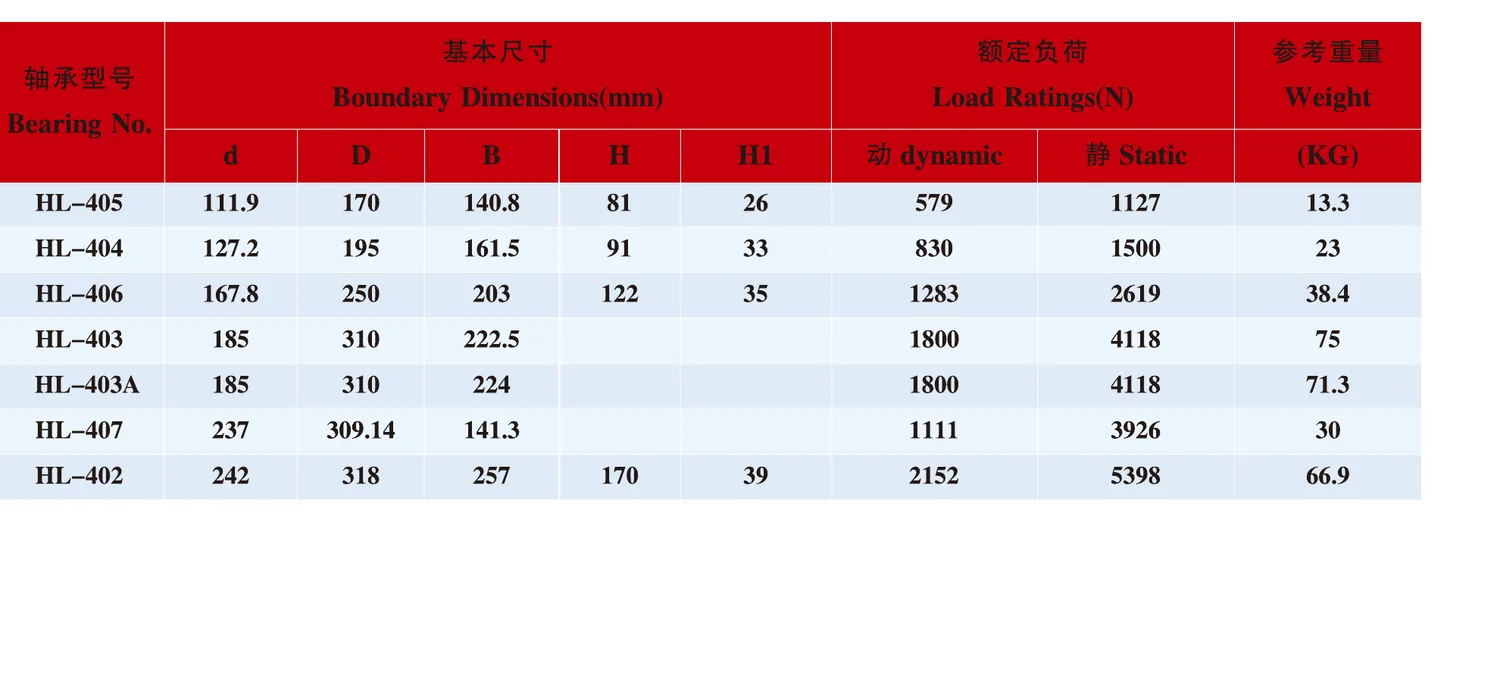

The table is transcribed from the supplied bearing catalogue. It is horizontally scrollable on phones and tablets so model numbers and technical values stay readable without forcing the page beyond the viewport.
| Bearing No. | d (mm) | D (mm) | B (mm) | H (mm) | H1 (mm) | Dynamic Load Rating | Static Load Rating | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HL-405 | 111.9 | 170 | 140.8 | 81 | 26 | 579 | 1127 | 13.3 |
| HL-404 | 127.2 | 195 | 161.5 | 91 | 33 | 830 | 1500 | 23 |
| HL-406 | 167.8 | 250 | 203 | 122 | 35 | 1283 | 2619 | 38.4 |
| HL-403 | 185 | 310 | 222.8 | — | — | 1800 | 4118 | 75 |
| HL-403A | 185 | 310 | 224 | — | — | 1800 | 4118 | 71.3 |
| HL-407 | 237 | 309.14 | 141.3 | — | — | 1111 | 3926 | 30 |
| HL-402 | 242 | 318 | 257 | 170 | 39 | 2152 | 5398 | 66.9 |
Catalogue source pages: 35. Values and units are reproduced from the supplied catalogue. Missing fields remain blank/—; no missing value is estimated.
Start from the full HL part number and compare every published envelope dimension.
Use the printed dynamic/static values only after confirming their unit convention for the project.
Send the mating assembly drawing or dimensions when H/H1 data is absent from the catalogue.
This family is intended for heavy-duty universal-joint related bearing requirements. Provide the joint assembly, shaft dimensions and operating load/speed information so the exact HL reference can be checked.
Send the catalogue part number, required quantity, shaft/bore requirement, operating speed, radial/axial load information and any fit or sealing requirement. If the source table contains a blank field, our team can confirm it before quotation.
