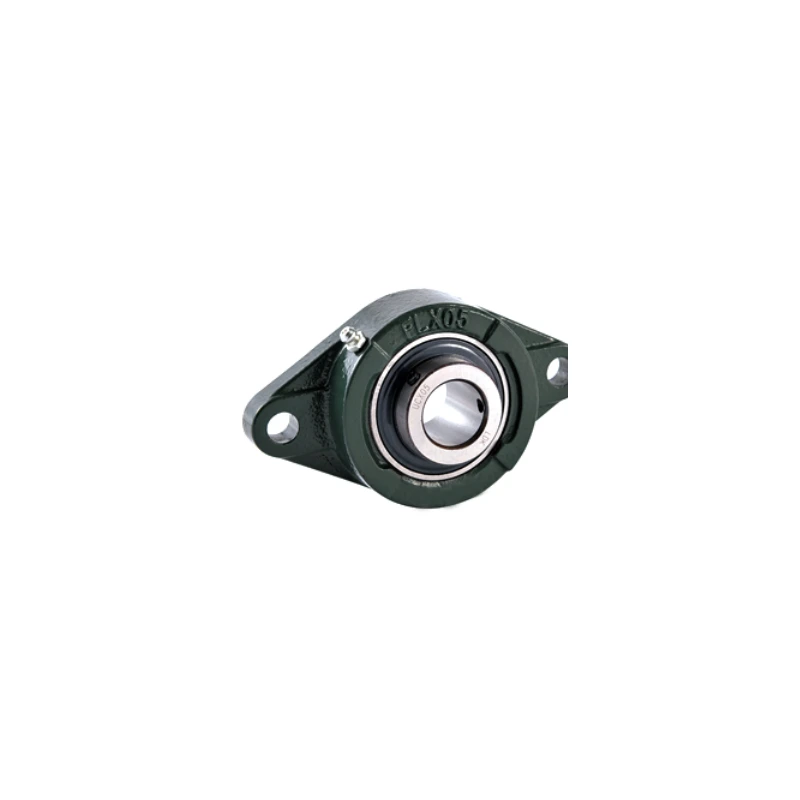

UCFLX is a medium duty 2-bolt flange bearing units series for compact face mounting with a two-bolt flange footprint. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
UCFLX is a medium duty series configured around 2-bolt flange bearing units. Its catalogue definition uses setscrew locking, with individual bore and dimensional variants retained in one model table.
This product page groups the complete catalogue series under one title. Engineers can compare the available unit numbers inside the dimensional reference instead of moving between many nearly identical SKU pages.
Series selection works best from the machine interface outward: mounting face, shaft, locking method and finally the exact catalogue line. Related bearing families can be compared from the main bearing index. Browse related bearing families.
UCFLX is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is 2-bolt flange bearing units, intended for compact face mounting with a two-bolt flange footprint.
The catalogue identifies setscrew locking for this series; confirm the exact row before ordering.
Start with these family-level identifiers before reading across the dimensional table. They are the details most likely to distinguish a neighboring series with a similar overall appearance.
| Series | UCFLX |
|---|---|
| Catalogue Reference | Part B, page B33 |
| Product Family | 2-Bolt Flange Bearing Units |
| Duty Classification | Medium duty |
| Locking / Mounting Method | Setscrew locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | 2-Bolt Flange Bearing Units |
| Material Note | Material varies by unit; confirm selected model |

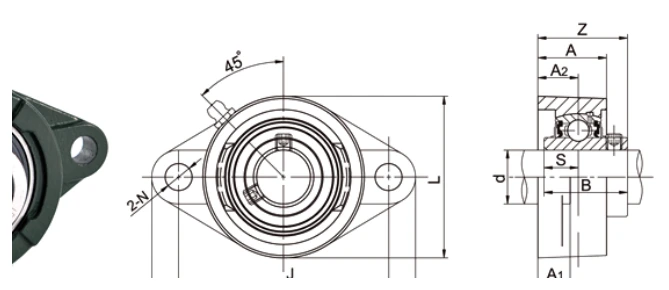

Read the drawing from the mounting interface inward. Check bolt or pilot geometry and shaft centerline first, then compare the remaining lettered dimensions with the same unit row in the catalogue table.
For conveyors and small handling systems, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
UCFLX is relevant when packaging machinery requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For general industrial frames, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.

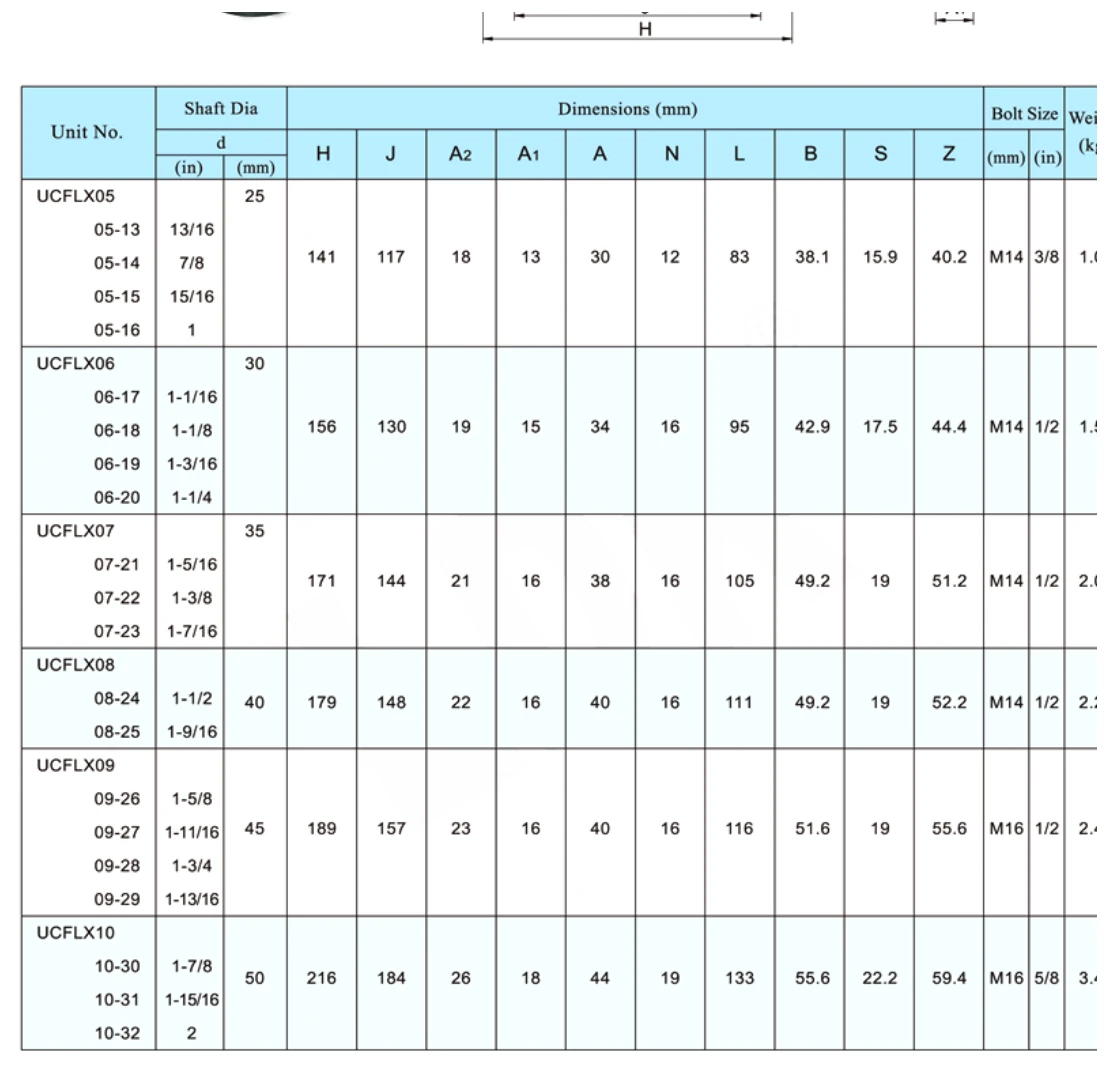

Rather than shortening the model list, the page keeps the complete source table visible. This lets engineering and purchasing refer to the same row during selection and quotation.
For replacement work, measure the installed interface before selecting by code. Shaft size is important, but housing geometry and the locking arrangement usually decide whether a unit will fit without rework. In this family, the intended role is compact face mounting with a two-bolt flange footprint.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | two-bolt spacing |
| 3 | housing orientation |
| 4 | locking method and shaft alignment |
For an RFQ, dimensions and configuration details are reviewed against the selected catalogue line item. Availability, material exceptions and application-specific options should be confirmed for the exact unit before an order is released.
Quotation review is more reliable when the request includes the model row, shaft size and installation drawing. Add any corrosion, cleaning or maintenance requirement that could change the configuration. Ever Power Netherlands Branch can review the quotation basis against the same reference.
