UCFB..A is a standard duty 3-bolt flange bearing units series for face-mounted support where a three-bolt footprint suits the available plate geometry. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
UCFB..A is a standard duty series configured around flange bracket with inch-based housing. Its catalogue definition uses setscrew locking, with individual bore and dimensional variants retained in one model table.
The catalogue treats this as a distinct series, so the page below follows the same logic: choose the series by housing and locking arrangement, then match the exact unit number and dimensions in the supplied table.
If the machine layout is not fixed yet, compare this family with other mounted-bearing formats before choosing the model row. Housing geometry usually narrows the options faster than bore size alone. Browse related bearing families.
UCFB..A is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is flange bracket with inch-based housing, intended for face-mounted support where a three-bolt footprint suits the available plate geometry.
The catalogue identifies setscrew locking for this series; confirm the exact row before ordering.
Series attributes are separated from model dimensions here. This makes the page easier to scan while keeping the original line-by-line dimensional reference intact below.
| Series | UCFB..A |
|---|---|
| Catalogue Reference | Part B, page B26 |
| Product Family | 3-Bolt Flange Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Setscrew locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | flange bracket with inch-based housing |
| Material Note | Material varies by unit; confirm selected model |
For replacement work, compare the drawing with the installed housing rather than relying on a familiar series code alone. Mounting dimensions and locking details are the better confirmation points.
UCFB..A is relevant when compact machine frames requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For light conveyors, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
UCFB..A is relevant when packaging and process equipment requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.

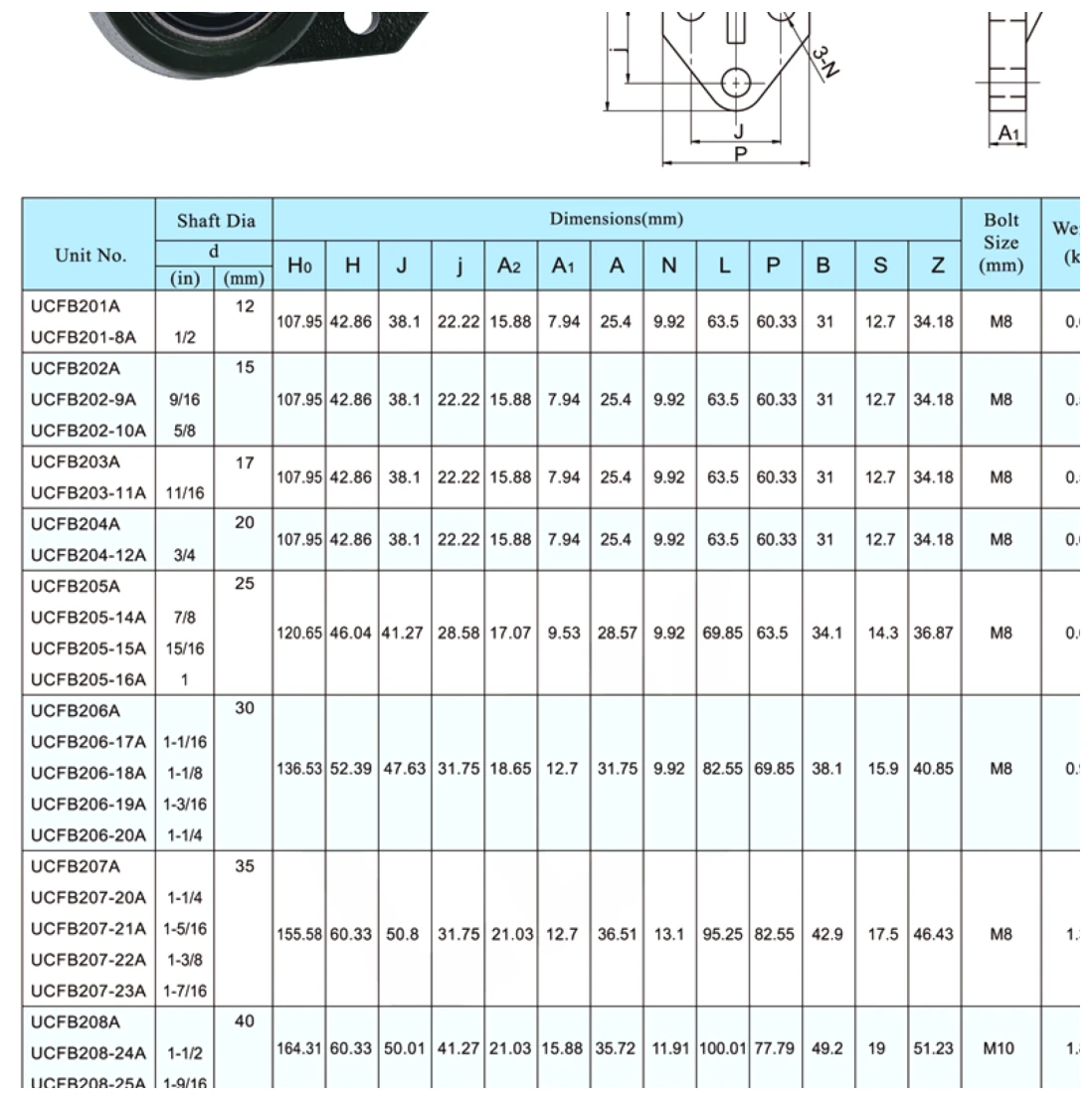

Rather than shortening the model list, the page keeps the complete source table visible. This lets engineering and purchasing refer to the same row during selection and quotation.
Selection should move from fixed machine dimensions to the bearing code: first the mounting interface, then shaft size, then locking method and environment. This avoids choosing a familiar-looking unit that does not match the frame. In this family, the intended role is face-mounted support where a three-bolt footprint suits the available plate geometry.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | three-bolt pattern |
| 3 | flange orientation |
| 4 | locking method and available mounting area |
For an RFQ, dimensions and configuration details are reviewed against the selected catalogue line item. Availability, material exceptions and application-specific options should be confirmed for the exact unit before an order is released.
Attach the machine or housing drawing with the required quantity and shaft size. This gives the technical review a clear basis for matching the catalogue row without guessing from the series name alone. Ever Power Netherlands Branch can review the quotation basis against the same reference.
