UCC is a standard duty cylindrical cartridge bearing units series for cylindrical cartridge support for a machined housing or frame opening. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
UCC is a standard duty series configured around cylindrical cartridge bearing units. Its catalogue definition uses setscrew locking, with individual bore and dimensional variants retained in one model table.
For purchasing and replacement work, the useful decision is the series itself, not a separate web page for every shaft size. The model table therefore stays together so adjacent metric and inch variants can be compared in one place.
Treat the housing format and locking method as the first filter. The broader bearing range is useful when the same shaft size must be checked against another flange, pillow, take-up or insert arrangement. Browse related bearing families.
UCC is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is cylindrical cartridge bearing units, intended for cylindrical cartridge support for a machined housing or frame opening.
The catalogue identifies setscrew locking for this series; confirm the exact row before ordering.
Start with these family-level identifiers before reading across the dimensional table. They are the details most likely to distinguish a neighboring series with a similar overall appearance.
| Series | UCC |
|---|---|
| Catalogue Reference | Part B, page B57 |
| Product Family | Cylindrical Cartridge Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Setscrew locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | Cylindrical Cartridge Bearing Units |
| Material Note | Material varies by unit; confirm selected model |

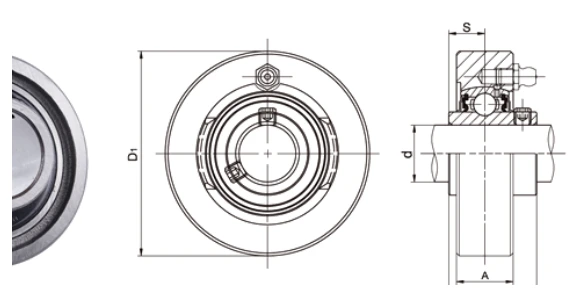

Read the drawing from the mounting interface inward. Check bolt or pilot geometry and shaft centerline first, then compare the remaining lettered dimensions with the same unit row in the catalogue table.
For machined equipment housings, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
UCC is relevant when conveyor frames requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For general rotating assemblies, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.

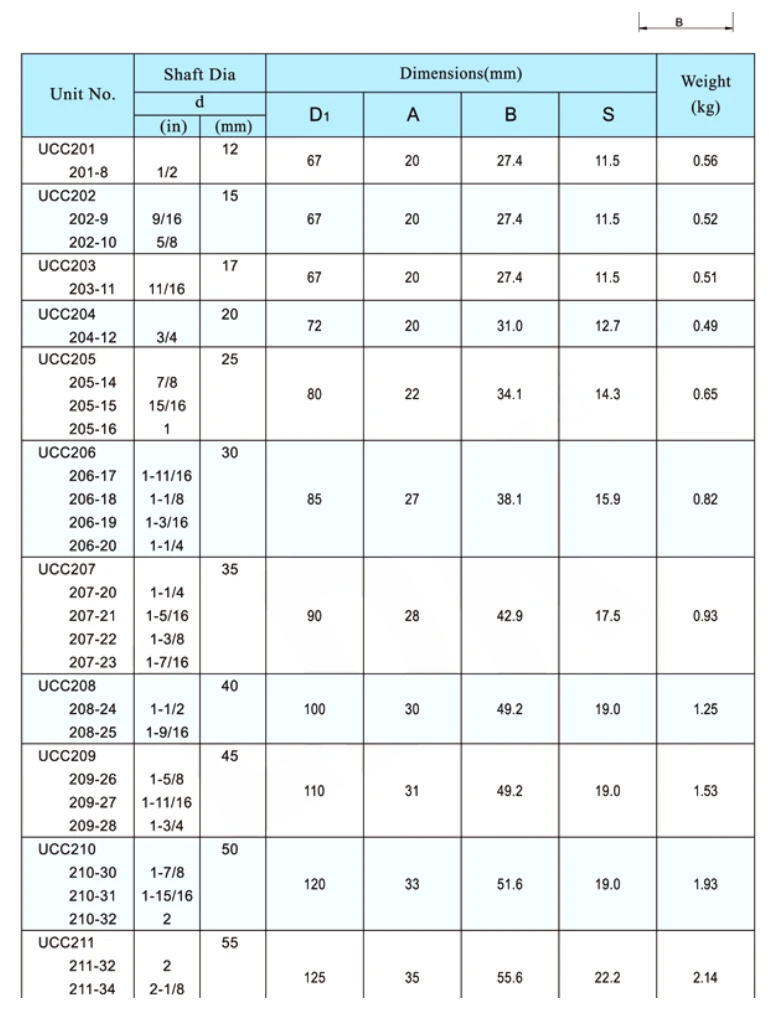

Below is the full dimensional reference for this series rather than a shortened web transcription. Keeping the table intact reduces the risk of separating a dimension from the wrong bore or unit suffix.
For replacement work, measure the installed interface before selecting by code. Shaft size is important, but housing geometry and the locking arrangement usually decide whether a unit will fit without rework. In this family, the intended role is cylindrical cartridge support for a machined housing or frame opening.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | cartridge outside fit |
| 3 | axial location |
| 4 | locking method |
A practical selection review starts with geometry and locking method, then verifies the exact model row. Special coatings, covers, grease, seals or material options should only be treated as included when they are stated for the chosen configuration.
If the existing code is uncertain, send the shaft size and mounting drawing instead. The series can be checked against the catalogue geometry before the quotation is finalized. Ever Power Netherlands Branch can review the quotation basis against the same reference.
