SUK is a standard duty corrosion resistant bearing inserts series for stainless insert selection for corrosion-sensitive housings and mounted units. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
SUK is a standard duty series configured around stainless steel tapered-bore bearing insert. Its catalogue definition uses adapter sleeve locking, with individual bore and dimensional variants retained in one model table.
For purchasing and replacement work, the useful decision is the series itself, not a separate web page for every shaft size. The model table therefore stays together so adjacent metric and inch variants can be compared in one place.
Treat the housing format and locking method as the first filter. The broader bearing range is useful when the same shaft size must be checked against another flange, pillow, take-up or insert arrangement. Browse related bearing families.
SUK is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is stainless steel tapered-bore bearing insert, intended for stainless insert selection for corrosion-sensitive housings and mounted units.
Stainless steel insert; food-grade grease and silicon rubber seal stated in catalogue. Confirm the selected insert, seal, grease and cover arrangement for the actual cleaning or corrosion exposure.
This summary deliberately avoids copying isolated dimensions out of context. Family attributes are shown here, and the exact model dimensions stay attached to their original unit numbers in the catalogue reference.
| Series | SUK |
|---|---|
| Catalogue Reference | Part B, page B137 |
| Product Family | Corrosion Resistant Bearing Inserts |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Adapter sleeve locking |
| Inner Ring / Bore Form | Tapered bore |
| Housing / Configuration | stainless steel tapered-bore bearing insert |
| Material Note | Stainless steel insert; food-grade grease and silicon rubber seal stated in catalogue |

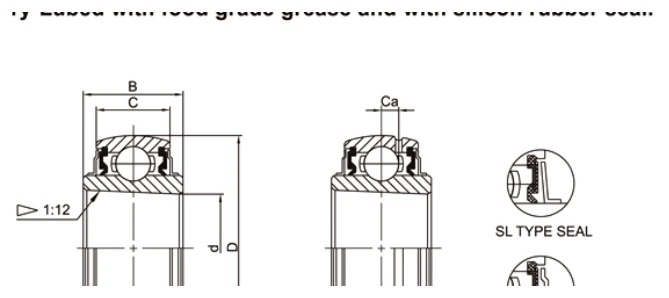

Use the drawing to confirm the mounting envelope before choosing the line item from the catalogue table. Pay particular attention to the shaft centerline, bolt or pilot geometry, overall housing envelope and the dimensions that affect adjacent machine parts.
For washdown mounted units, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
SUK is relevant when food and packaging equipment requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For corrosion-sensitive bearing housings, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.

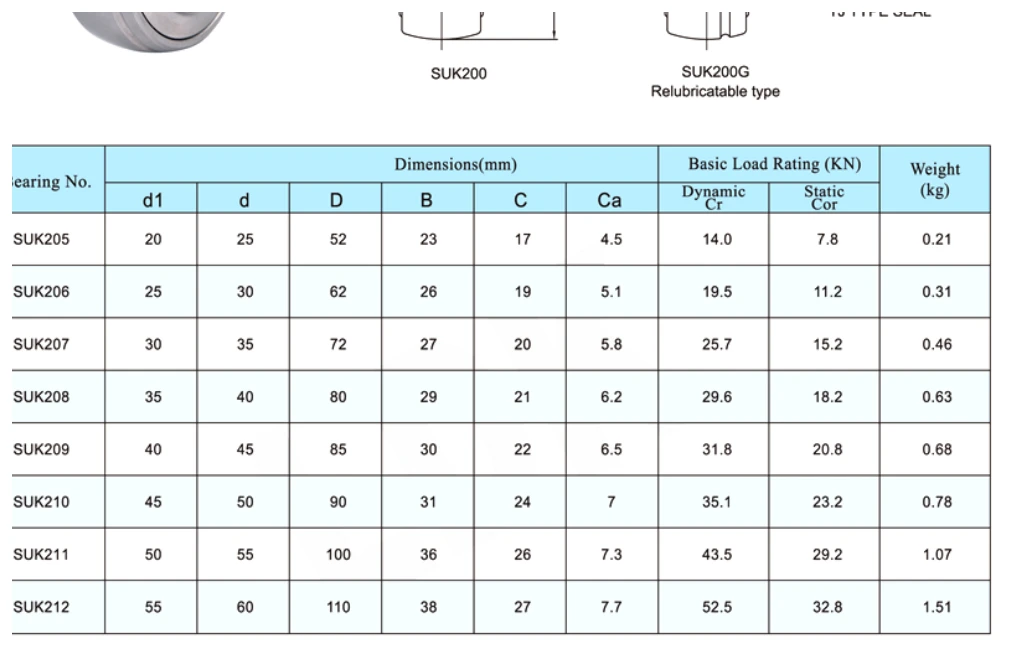

The full table is preserved as a WebP reference so every unit code remains aligned with its dimension columns. Zoom the image when checking closely spaced metric and inch variants.
For replacement work, measure the installed interface before selecting by code. Shaft size is important, but housing geometry and the locking arrangement usually decide whether a unit will fit without rework. In this family, the intended role is stainless insert selection for corrosion-sensitive housings and mounted units.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | housing compatibility |
| 3 | locking method |
| 4 | seal, grease and cleaning requirements |
Use the catalogue page as the baseline and add project requirements separately. That keeps source-backed dimensions distinct from requested seals, covers, grease, materials or other options.
A useful RFQ includes the target model or shaft size, mounting dimensions, quantity and any environment requirement. That gives the quotation review enough information to confirm the catalogue row. Ever Power Netherlands Branch can review the quotation basis against the same reference.
