SSUEFB..A is a standard duty all stainless steel bearing units series for all-stainless mounted support for corrosion-sensitive equipment. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
SSUEFB..A is a standard duty series configured around all-stainless flange bracket with inch-based housing. Its catalogue definition uses concentric locking, with individual bore and dimensional variants retained in one model table.
The catalogue treats this as a distinct series, so the page below follows the same logic: choose the series by housing and locking arrangement, then match the exact unit number and dimensions in the supplied table.
If the machine layout is not fixed yet, compare this family with other mounted-bearing formats before choosing the model row. Housing geometry usually narrows the options faster than bore size alone. Browse related bearing families.
SSUEFB..A is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is all-stainless flange bracket with inch-based housing, intended for all-stainless mounted support for corrosion-sensitive equipment.
All-stainless steel series. Confirm the selected insert, seal, grease and cover arrangement for the actual cleaning or corrosion exposure.
Series attributes are separated from model dimensions here. This makes the page easier to scan while keeping the original line-by-line dimensional reference intact below.
| Series | SSUEFB..A |
|---|---|
| Catalogue Reference | Part B, page B116 |
| Product Family | All Stainless Steel Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Concentric locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | all-stainless flange bracket with inch-based housing |
| Material Note | All-stainless steel series |
For replacement work, compare the drawing with the installed housing rather than relying on a familiar series code alone. Mounting dimensions and locking details are the better confirmation points.
SSUEFB..A is relevant when washdown or wet-process equipment requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For food-processing and packaging machinery, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
SSUEFB..A is relevant when corrosive-environment conveyors requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.

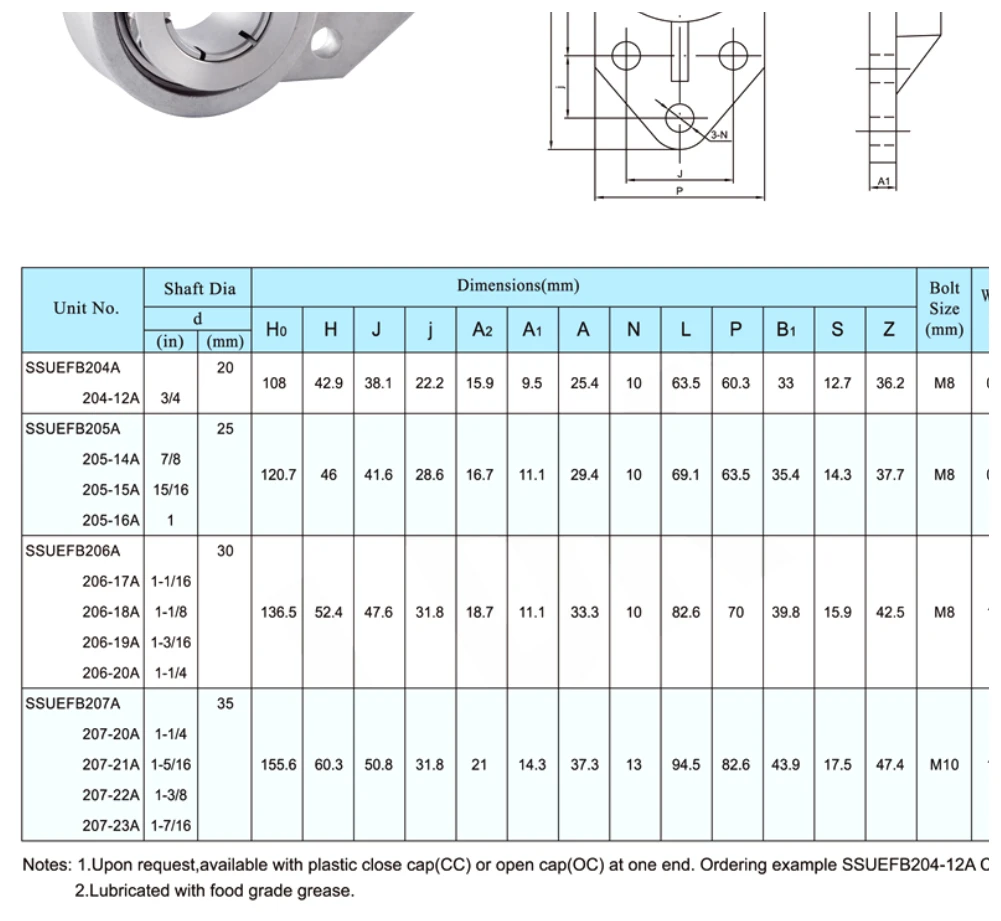

The full table is preserved as a WebP reference so every unit code remains aligned with its dimension columns. Zoom the image when checking closely spaced metric and inch variants.
Use the machine frame as the selection constraint. Confirm the fixed mounting dimensions and shaft first, then choose the series variant whose locking and housing form fit those conditions. In this family, the intended role is all-stainless mounted support for corrosion-sensitive equipment.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | housing style and bolt pattern |
| 3 | locking method |
| 4 | environment, cover and lubrication requirements |
Use the catalogue page as the baseline and add project requirements separately. That keeps source-backed dimensions distinct from requested seals, covers, grease, materials or other options.
Attach the machine or housing drawing with the required quantity and shaft size. This gives the technical review a clear basis for matching the catalogue row without guessing from the series name alone. Ever Power Netherlands Branch can review the quotation basis against the same reference.
