SSUCPA..A is a standard duty all stainless steel bearing units series for all-stainless mounted support for corrosion-sensitive equipment. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
SSUCPA..A is a standard duty series configured around all-stainless tapped-base pillow block with inch-based housing. Its catalogue definition uses setscrew locking, with individual bore and dimensional variants retained in one model table.
This product page groups the complete catalogue series under one title. Engineers can compare the available unit numbers inside the dimensional reference instead of moving between many nearly identical SKU pages.
Series selection works best from the machine interface outward: mounting face, shaft, locking method and finally the exact catalogue line. Related bearing families can be compared from the main bearing index. Browse related bearing families.
SSUCPA..A is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is all-stainless tapped-base pillow block with inch-based housing, intended for all-stainless mounted support for corrosion-sensitive equipment.
All-stainless steel series. Confirm the selected insert, seal, grease and cover arrangement for the actual cleaning or corrosion exposure.
This summary deliberately avoids copying isolated dimensions out of context. Family attributes are shown here, and the exact model dimensions stay attached to their original unit numbers in the catalogue reference.
| Series | SSUCPA..A |
|---|---|
| Catalogue Reference | Part B, page B113 |
| Product Family | All Stainless Steel Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Setscrew locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | all-stainless tapped-base pillow block with inch-based housing |
| Material Note | All-stainless steel series |

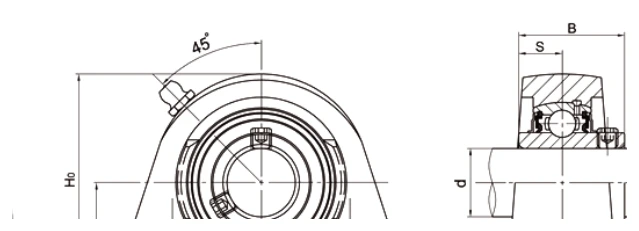

Use the drawing to confirm the mounting envelope before choosing the line item from the catalogue table. Pay particular attention to the shaft centerline, bolt or pilot geometry, overall housing envelope and the dimensions that affect adjacent machine parts.
For washdown or wet-process equipment, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
SSUCPA..A is relevant when food-processing and packaging machinery requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For corrosive-environment conveyors, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.

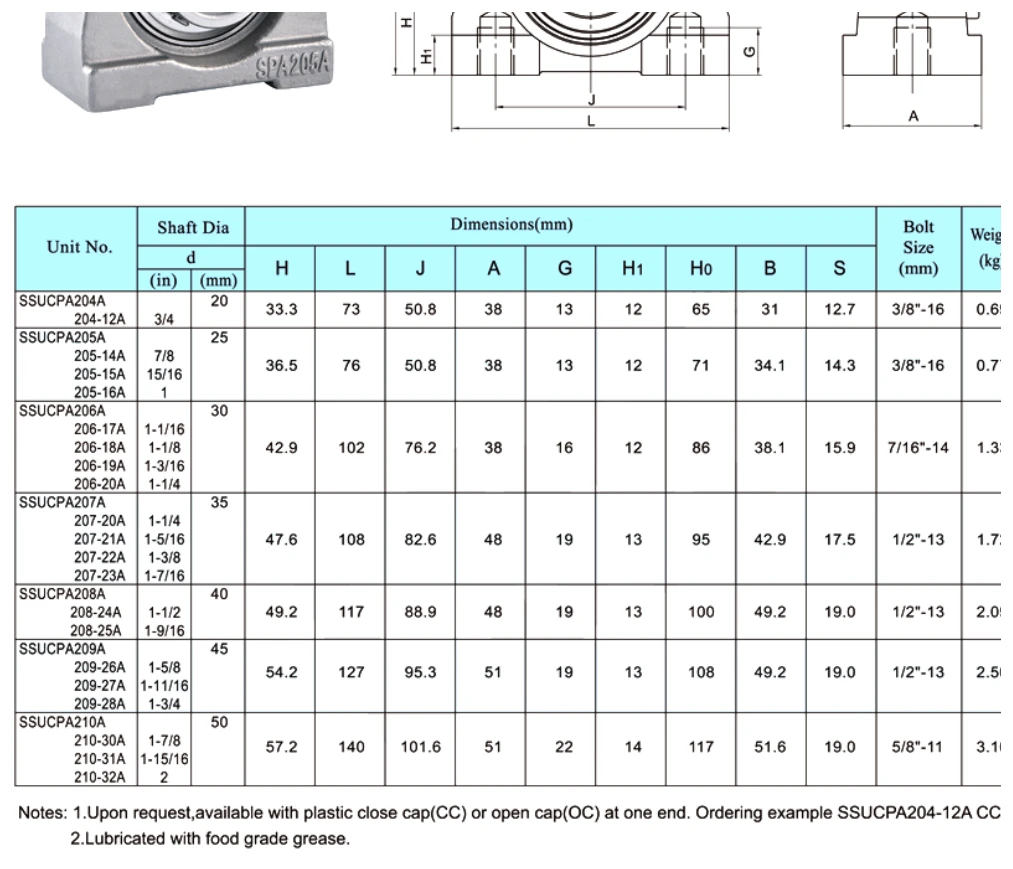

Below is the full dimensional reference for this series rather than a shortened web transcription. Keeping the table intact reduces the risk of separating a dimension from the wrong bore or unit suffix.
For replacement work, measure the installed interface before selecting by code. Shaft size is important, but housing geometry and the locking arrangement usually decide whether a unit will fit without rework. In this family, the intended role is all-stainless mounted support for corrosion-sensitive equipment.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | housing style and bolt pattern |
| 3 | locking method |
| 4 | environment, cover and lubrication requirements |
A practical selection review starts with geometry and locking method, then verifies the exact model row. Special coatings, covers, grease, seals or material options should only be treated as included when they are stated for the chosen configuration.
Include the exact bore or unit suffix whenever possible. A photo of the installed housing and a few fixed mounting dimensions are useful when a legacy code is incomplete. Ever Power Netherlands Branch can review the quotation basis against the same reference.
