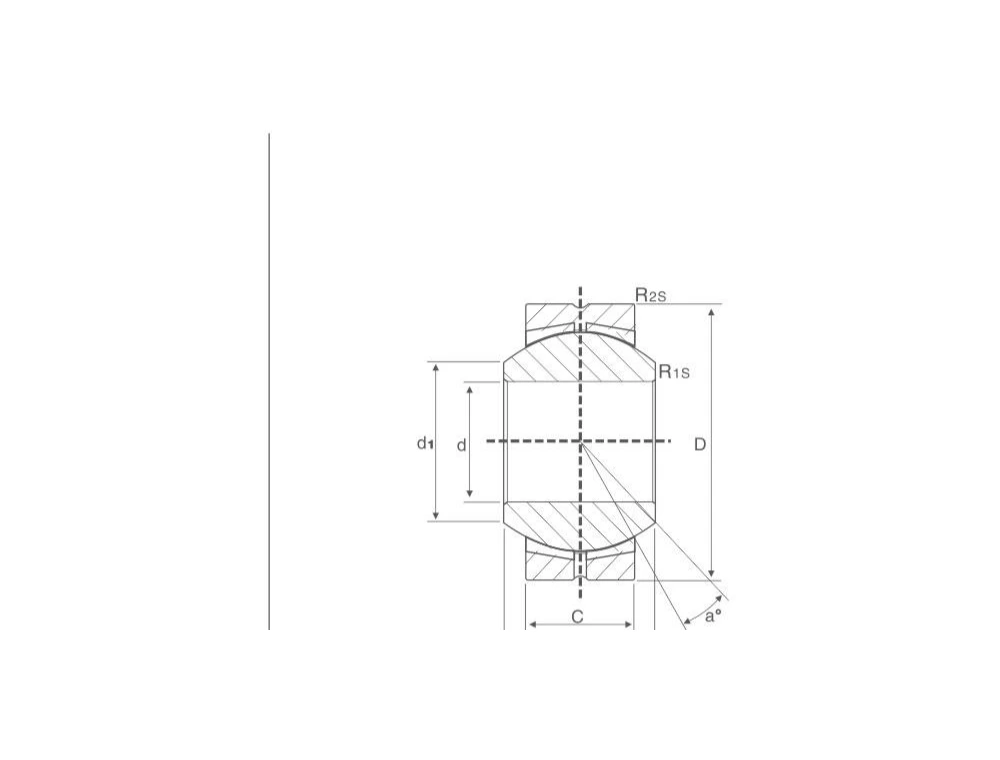

PB Spherical Plain Bearing is a documented maintenance required series for industrial linkage or pivot applications. Steel/bronze sliding pair; lubrication groove and holes. Use the main image for identification and the full product description for model-by-model dimensions and load data.
PB is a serviceable spherical plain bearing with a bronze liner at the sliding interface. It is aimed at compact, low-speed joints where periodic lubrication is feasible and a steel/bronze contact is desired. The catalogue covers 5–30 mm bores.
| Model | Bore d (mm) | Outside D (mm) | B (mm) | C (mm) | Tilt α (°) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| PB5 | 5 | 16 | 8 | 6 | 13 | 3.3 | 7.8 | 9 |
| PB6 | 6 | 18 | 9 | 6.75 | 13 | 4.3 | 9.8 | 13 |
| PB8 | 8 | 22 | 12 | 9 | 14 | 6.8 | 16 | 24 |
| PB10 | 10 | 26 | 14 | 10.5 | 14 | 10 | 23 | 39 |
| PB12 | 12 | 30 | 16 | 12 | 13 | 13 | 31 | 58 |
| PB14 | 14 | 34 | 19 | 13.5 | 16 | 17 | 40 | 84 |
| PB16 | 16 | 38 | 21 | 15 | 15 | 21 | 50 | 111 |
| PB18 | 18 | 42 | 23 | 16.5 | 15 | 26 | 61 | 160 |
| PB20 | 20 | 46 | 25 | 18 | 15 | 31 | 73 | 210 |
| PB22 | 22 | 50 | 28 | 20 | 15 | 38 | 88 | 260 |
| PB25 | 25 | 56 | 31 | 22 | 15 | 47 | 110 | 390 |
| PB28 | 28 | 62 | 35 | 25 | 15 | 59 | 138 | 530 |
| PB30 | 30 | 66 | 37 | 25 | 17 | 63 | 148 | 610 |
Begin with the housing and pin dimensions, then check the published load ratings and permissible tilt. A bronze-lined bearing still needs good alignment: if the pin bends or the housing clamps unevenly, load concentrates near the edge.
Keep the lubrication holes aligned with the machine’s grease path and service with clean lubricant.
GE E / GE ES 2RS is a wider-range serviceable spherical family; PHS/POS use bronze-lined spherical surfaces inside threaded rod-end housings; GE C is a compact maintenance-free PTFE option.
