LIN-02R alternate closed plastic linear-bearing series from the LIN plastic linear-bearing family. Designed for quiet, corrosion-resistant dry running; exact dimensions and load data remain model specific.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
LIN-02R is the companion cylindrical bearing family built around the second LIN sliding material geometry. Its geometry follows the alternate LIN-02R cylindrical family; it should be identified from the actual catalogue drawing, not by assuming LIN-01R dimensions.
Dry operation is a defining property of the family. The source lists a 0.05–0.15 steel friction coefficient and 1.48 g/cm³ material density, figures that belong to the LIN material rather than to a single model size. Temperature guidance in the outline is -50 to +90 °C for continuous work and -50 to +120 °C for short exposure.
| Check | Source Data | Engineering Use |
|---|---|---|

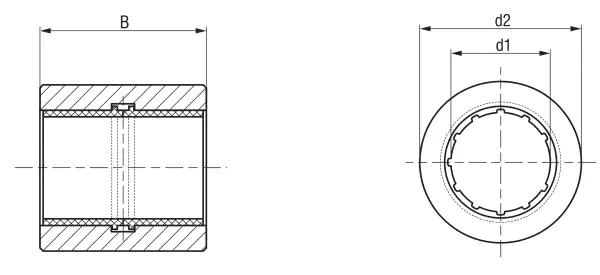

| Key drawing fields | order code / d1 / tolerance / d2 / B / housing fit / C / Co / weight | Read the exact model row |
| Dry sliding coefficient | 0.05–0.15 against steel | Family material value |
| PV ceiling | 0.4 N/mm²·m/s | Combined pressure-speed limit |
| Material density | 1.48 g/cm³ | Published LIN material property |
| Temperature window | -50/+90 °C continuous; to +120 °C short | Check ambient and frictional heating |
| Source pages | 82–102 | Supplied linear-bearing catalogue |
| Series / form | LIN-02R | alternate closed plastic linear-bearing series |
Data boundary: The figures above are published family properties. Exact dimensions, housing fits and load values for LIN-02R stay model specific and should come from the selected catalogue row.
This alternate closed cylinder is relevant to machines built around the LIN-02R envelope, especially where corrosion resistance and dry travel are preferable to a greased ball bushing.
For LIN-02R, corrosion resistance and lubricant-free travel can simplify machine housekeeping. The catalogue also notes that the LIN material can be cleaned with disinfecting solution, which is useful context for equipment where oil migration would be undesirable.
Treat LIN-02R as a distinct dimensional family. A maintenance drawing with housing bore and bearing length is usually enough to distinguish it from a same-bore LIN-01R.
After the geometry is identified, compare the real duty with the dry-running material limits. Record load, sliding speed, stroke, shaft finish and operating temperature in the RFQ so LIN-02R is checked as a system rather than as a bore-size lookup.
Use the housing fit specified for the LIN-02R model and avoid squeezing the outer shell to adjust clearance. If travel becomes rough, inspect shaft finish and alignment before replacing the liner.
This family does not depend on scheduled grease replenishment. Inspection should instead look for abnormal clearance, embedded abrasive particles, heat and uneven wear; those symptoms often point to shaft or alignment issues around the LIN-02R installation.
Send the LIN-02R model if known, shaft size, quantity, mounting dimensions and duty conditions to sales@netherlandsdrive.com. Ever Power Netherlands Branch will use the supplied catalogue family as the technical reference for selection.
