WP-SSBF is a standard duty water-proof thermoplastic bearing units series for thermoplastic mounted support intended for wet or frequent-cleaning environments. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
WP-SSBF is a standard duty series configured around water-proof thermoplastic 4-bolt flange. Its catalogue definition uses setscrew locking, with individual bore and dimensional variants retained in one model table.
The catalogue treats this as a distinct series, so the page below follows the same logic: choose the series by housing and locking arrangement, then match the exact unit number and dimensions in the supplied table.
If the machine layout is not fixed yet, compare this family with other mounted-bearing formats before choosing the model row. Housing geometry usually narrows the options faster than bore size alone. Browse related bearing families.
WP-SSBF is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is water-proof thermoplastic 4-bolt flange, intended for thermoplastic mounted support intended for wet or frequent-cleaning environments.
Water-proof thermoplastic housing; corrosion-resistant configuration. Confirm the selected insert, seal, grease and cover arrangement for the actual cleaning or corrosion exposure.

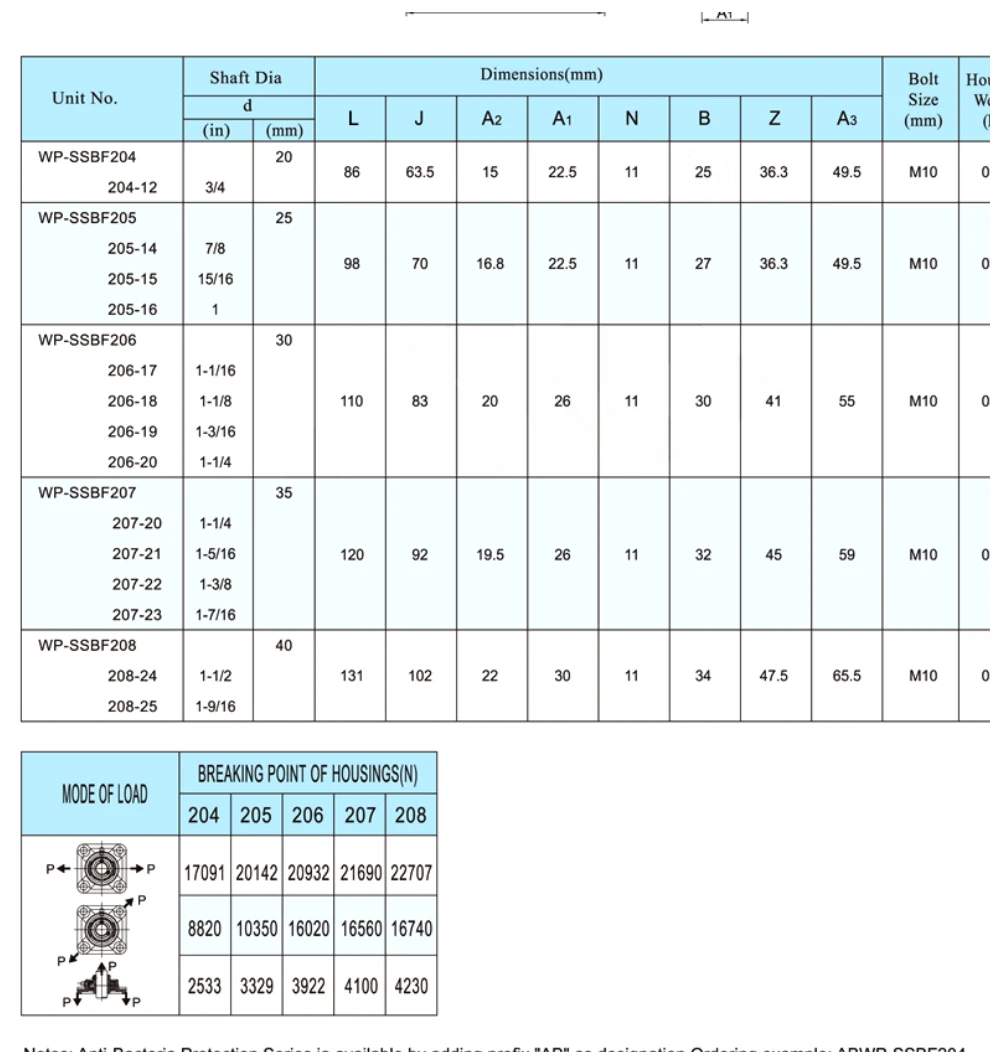

The table below records the series-level facts visible in the supplied catalogue heading. Model-specific dimensions are deliberately kept in the original dimensional table so values are not detached from their unit numbers.
| Series | WP-SSBF |
|---|---|
| Catalogue Reference | Part B, page B96 |
| Product Family | Water-Proof Thermoplastic Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Setscrew locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | water-proof thermoplastic 4-bolt flange |
| Material Note | Water-proof thermoplastic housing; corrosion-resistant configuration |

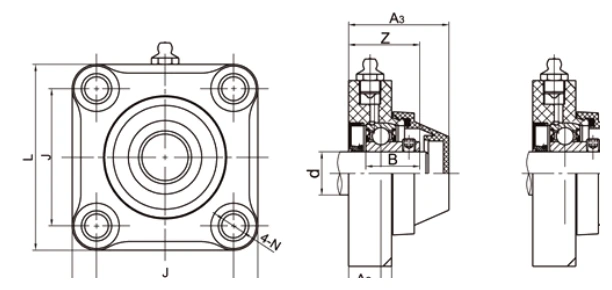

The drawing is placed directly before the dimensional reference because installation space is usually the quickest way to rule a series in or out. Match the drawing labels to the corresponding columns in the catalogue table before releasing an RFQ.
WP-SSBF is relevant when washdown conveyors requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For processing and packaging lines, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
WP-SSBF is relevant when equipment exposed to moisture requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
Rather than shortening the model list, the page keeps the complete source table visible. This lets engineering and purchasing refer to the same row during selection and quotation.
Begin with the machine mounting envelope, then confirm the shaft and locking arrangement. A similar series code does not guarantee the same center height, bolt pattern, cartridge fit, slot geometry or inner-ring dimensions. In this family, the intended role is thermoplastic mounted support intended for wet or frequent-cleaning environments.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | housing footprint |
| 3 | seal/cover requirement |
| 4 | cleaning environment and locking method |
For an RFQ, dimensions and configuration details are reviewed against the selected catalogue line item. Availability, material exceptions and application-specific options should be confirmed for the exact unit before an order is released.
Quotation review is more reliable when the request includes the model row, shaft size and installation drawing. Add any corrosion, cleaning or maintenance requirement that could change the configuration. Ever Power Netherlands Branch can review the quotation basis against the same reference.
