UCT is a standard duty take-up bearing units series for guided shaft support used where position adjustment or belt/chain tensioning is required. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
UCT is a standard duty series configured around take-up bearing units. Its catalogue definition uses setscrew locking, with individual bore and dimensional variants retained in one model table.
This product page groups the complete catalogue series under one title. Engineers can compare the available unit numbers inside the dimensional reference instead of moving between many nearly identical SKU pages.
Series selection works best from the machine interface outward: mounting face, shaft, locking method and finally the exact catalogue line. Related bearing families can be compared from the main bearing index. Browse related bearing families.
UCT is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is take-up bearing units, intended for guided shaft support used where position adjustment or belt/chain tensioning is required.
The catalogue identifies setscrew locking for this series; confirm the exact row before ordering.
These specifications describe the family, not a single bore size. Use them to confirm the housing and locking concept, then use the catalogue image for the exact dimensional row.
| Series | UCT |
|---|---|
| Catalogue Reference | Part B, page B43 |
| Product Family | Take-Up Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Setscrew locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | Take-Up Bearing Units |
| Material Note | Material varies by unit; confirm selected model |

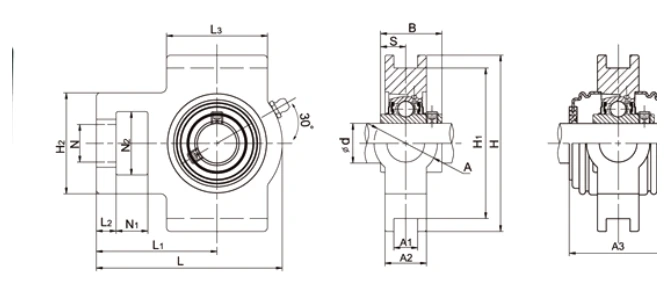

Check this outline against the machine frame before fixing the bore or unit number. The drawing shows the series geometry; the table below carries the model-by-model dimensions for the same family.
For belt conveyor take-up positions, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
UCT is relevant when bucket elevator or chain tensioning points requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For adjustable material-handling frames, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.

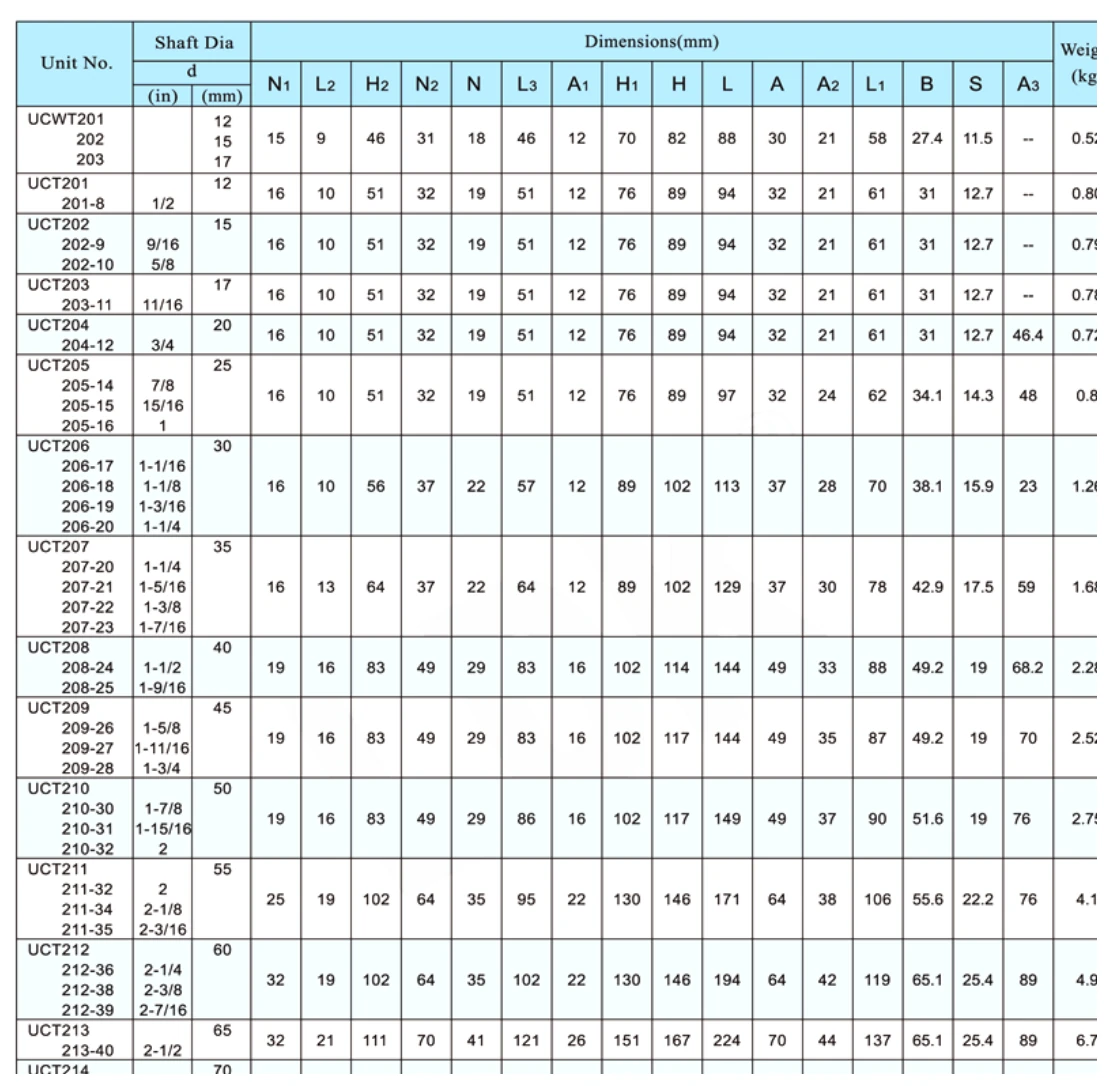

Below is the full dimensional reference for this series rather than a shortened web transcription. Keeping the table intact reduces the risk of separating a dimension from the wrong bore or unit suffix.
Check the dimensions that cannot change on the machine first. Once bolt pattern, centerline or pilot geometry and shaft size are known, the locking and environment details can be used to finish the selection. In this family, the intended role is guided shaft support used where position adjustment or belt/chain tensioning is required.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | take-up slot or guide geometry |
| 3 | required adjustment/travel position |
| 4 | locking method and lubrication access |
A practical selection review starts with geometry and locking method, then verifies the exact model row. Special coatings, covers, grease, seals or material options should only be treated as included when they are stated for the chosen configuration.
Send the current bearing designation and quantity if available. For a new design, provide shaft size and mounting geometry so the family can be checked before a specific unit number is proposed. Ever Power Netherlands Branch can review the quotation basis against the same reference.
