SSUCFL..EHB/ESB is a standard duty all stainless steel bearing units series for all-stainless mounted support for corrosion-sensitive equipment. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
SSUCFL..EHB/ESB is a standard duty series configured around all-stainless 2-bolt flange with hollow/solid base options. Its catalogue definition uses setscrew / eccentric locking, with individual bore and dimensional variants retained in one model table.
This series is organized as one catalogue-level product family rather than one product per bore size. That keeps RFQ work focused on the mounting form and locking method first, while the dimensional table remains available for the final unit selection.
This series sits within the wider bearing catalogue. Use the bearing index when comparing another housing format, then return here to verify the selected series drawing and dimensions. Browse related bearing families.
SSUCFL..EHB/ESB is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is all-stainless 2-bolt flange with hollow/solid base options, intended for all-stainless mounted support for corrosion-sensitive equipment.
All-stainless steel series. Confirm the selected insert, seal, grease and cover arrangement for the actual cleaning or corrosion exposure.
Start with these family-level identifiers before reading across the dimensional table. They are the details most likely to distinguish a neighboring series with a similar overall appearance.
| Series | SSUCFL..EHB/ESB |
|---|---|
| Catalogue Reference | Part B, page B105 |
| Product Family | All Stainless Steel Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Setscrew / eccentric locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | all-stainless 2-bolt flange with hollow/solid base options |
| Material Note | All-stainless steel series |

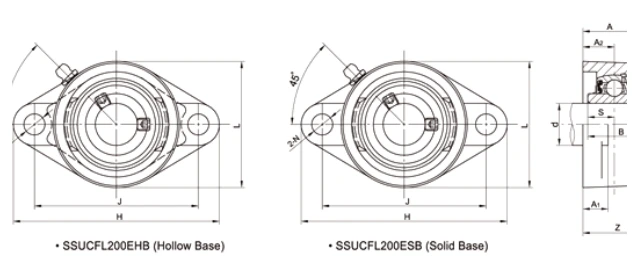

Read the drawing from the mounting interface inward. Check bolt or pilot geometry and shaft centerline first, then compare the remaining lettered dimensions with the same unit row in the catalogue table.
For washdown or wet-process equipment, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
SSUCFL..EHB/ESB is relevant when food-processing and packaging machinery requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For corrosive-environment conveyors, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.

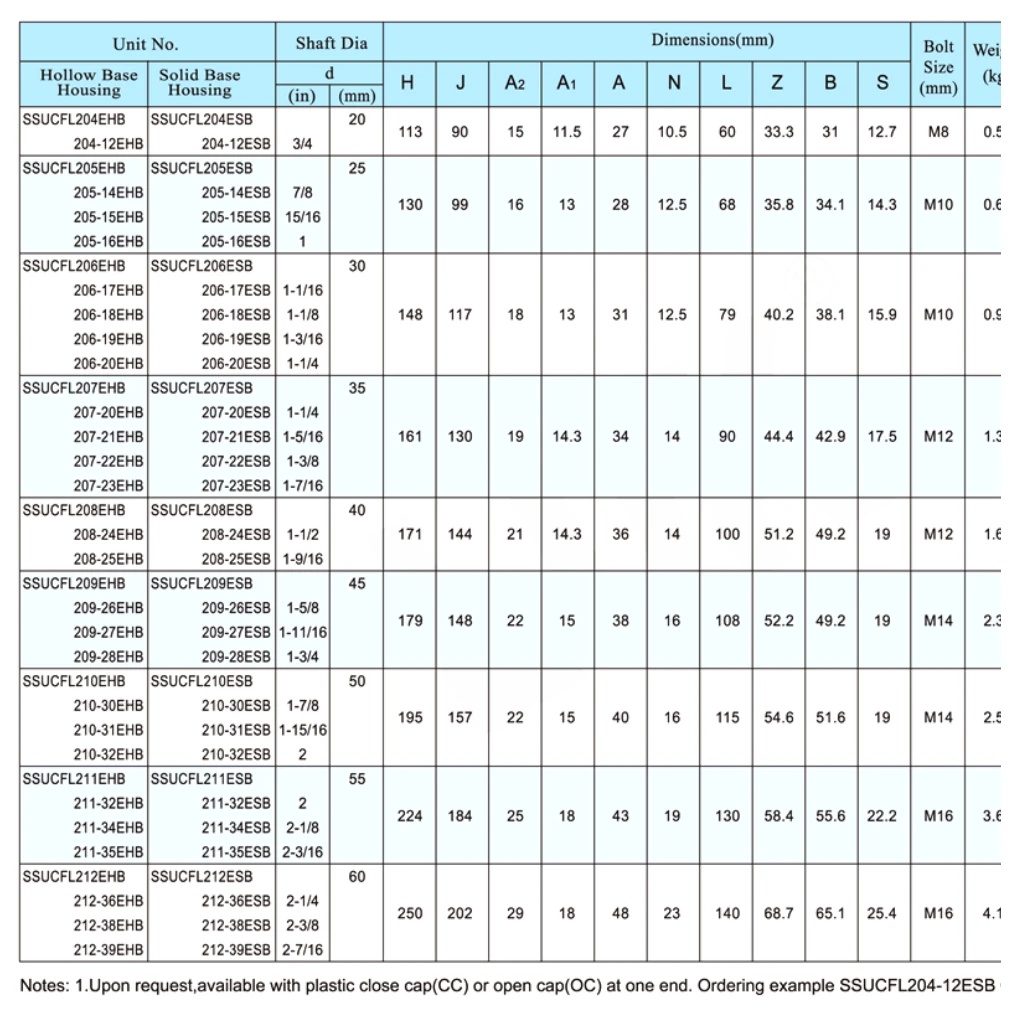

The original model table is shown at high resolution so metric and inch unit numbers remain attached to the correct drawing-letter dimensions. Select the row visually and confirm it again in the RFQ.
For replacement work, measure the installed interface before selecting by code. Shaft size is important, but housing geometry and the locking arrangement usually decide whether a unit will fit without rework. In this family, the intended role is all-stainless mounted support for corrosion-sensitive equipment.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | housing style and bolt pattern |
| 3 | locking method |
| 4 | environment, cover and lubrication requirements |
The supplied catalogue is used here as the technical selection reference. Final quotation review should confirm the exact model, shaft size, mounting interface and any environment-specific requirement.
Quotation review is more reliable when the request includes the model row, shaft size and installation drawing. Add any corrosion, cleaning or maintenance requirement that could change the configuration. Ever Power Netherlands Branch can review the quotation basis against the same reference.
