LMF…UU round-flange metric family linear bearing for d = 6–60 mm. Built for round-shaft linear motion, with model-specific dimensions and load ratings selected from the supplied catalogue.
LMF...UU is the round-flange metric family member of the catalogue linear-bearing range. The circular flange lets the bushing bolt directly to a plate or carriage without a separate cylindrical bearing block. The practical buying question is whether its envelope and mounting style match the shaft, housing and carriage already designed into the machine.
The supplied catalogue places this series on pages 45–46. The documented selection range is d = 6–60 mm. Rather than treating the series code as interchangeable with a similar-looking bushing, confirm the exact diameter family and the mounting geometry before an RFQ is released.
| Item | Documented Value | Why It Matters |
|---|---|---|
| Series | LMF...UU | Catalogue family identifier |
| Design form | Round-flange metric family | Mounting / envelope decision |
| Documented range | d = 6–60 mm | Use the exact model row for final dimensions |

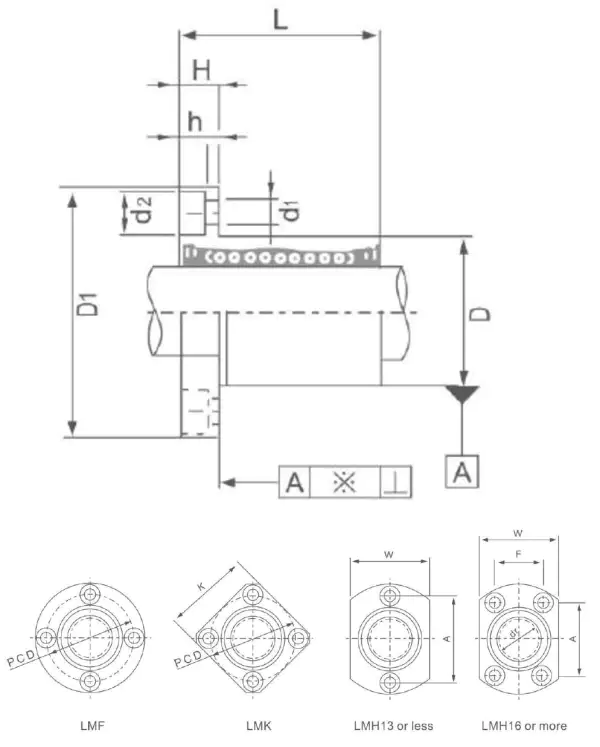

| Key specification fields | model / dr / D / L / D1 / H / PCD / K / W / A / flange F / hole geometry / runout / C / Co / weight | Check drawing symbols and tolerance columns |
| Source | Catalogue pp. 45–46 | Supplied bearing catalogue / outline |
Catalogue note: The source provides model-by-model tables. This import row intentionally keeps the published family limits and field structure; final dimensions, C/Co ratings and mass must be taken from the selected catalogue model rather than inferred from a neighbouring size.
LMF bearings suit flat carriage plates, automation modules and machine frames where a round flange gives straightforward bolt access and a symmetric footprint.
The flange simplifies installation, but the surrounding plate still needs enough stiffness to keep the bearing axis aligned with the shaft.
Select by shaft diameter, then check flange diameter, pitch-circle dimensions and hole geometry against the mounting plate.
Load ratings are model specific; when the carriage sees an overturning moment, bearing spacing and plate stiffness must be checked along with C and Co.
Seat the flange flat without pulling it down across burrs or paint build-up, which can tilt the bearing axis.
Recheck bolt torque after initial operation and inspect the shaft for one-sided wear that would indicate angular misalignment.
To check a catalogue model for your machine, send the series, shaft size, quantity, mounting details and operating conditions to sales@netherlandsdrive.com. Ever Power Netherlands Branch will confirm the applicable catalogue configuration before quotation.
