SSUET is a standard duty all stainless steel bearing units series for all-stainless mounted support for corrosion-sensitive equipment. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
SSUET is a standard duty series configured around all-stainless take-up housing. Its catalogue definition uses concentric locking, with individual bore and dimensional variants retained in one model table.
The page keeps the full series together because housing geometry and locking method define the product family more clearly than a single bore size. Exact unit numbers remain in the source table for side-by-side checking.
The series can also be compared with other mounted-bearing families when the machine design is still open. Start from the bearing index, then return to the drawing that best matches the mounting interface. Browse related bearing families.
SSUET is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is all-stainless take-up housing, intended for all-stainless mounted support for corrosion-sensitive equipment.
All-stainless steel series. Confirm the selected insert, seal, grease and cover arrangement for the actual cleaning or corrosion exposure.
These specifications describe the family, not a single bore size. Use them to confirm the housing and locking concept, then use the catalogue image for the exact dimensional row.
| Series | SSUET |
|---|---|
| Catalogue Reference | Part B, page B109 |
| Product Family | All Stainless Steel Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Concentric locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | all-stainless take-up housing |
| Material Note | All-stainless steel series |

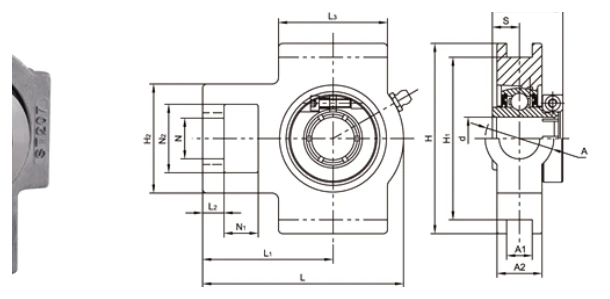

Check this outline against the machine frame before fixing the bore or unit number. The drawing shows the series geometry; the table below carries the model-by-model dimensions for the same family.
For washdown or wet-process equipment, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
SSUET is relevant when food-processing and packaging machinery requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For corrosive-environment conveyors, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.

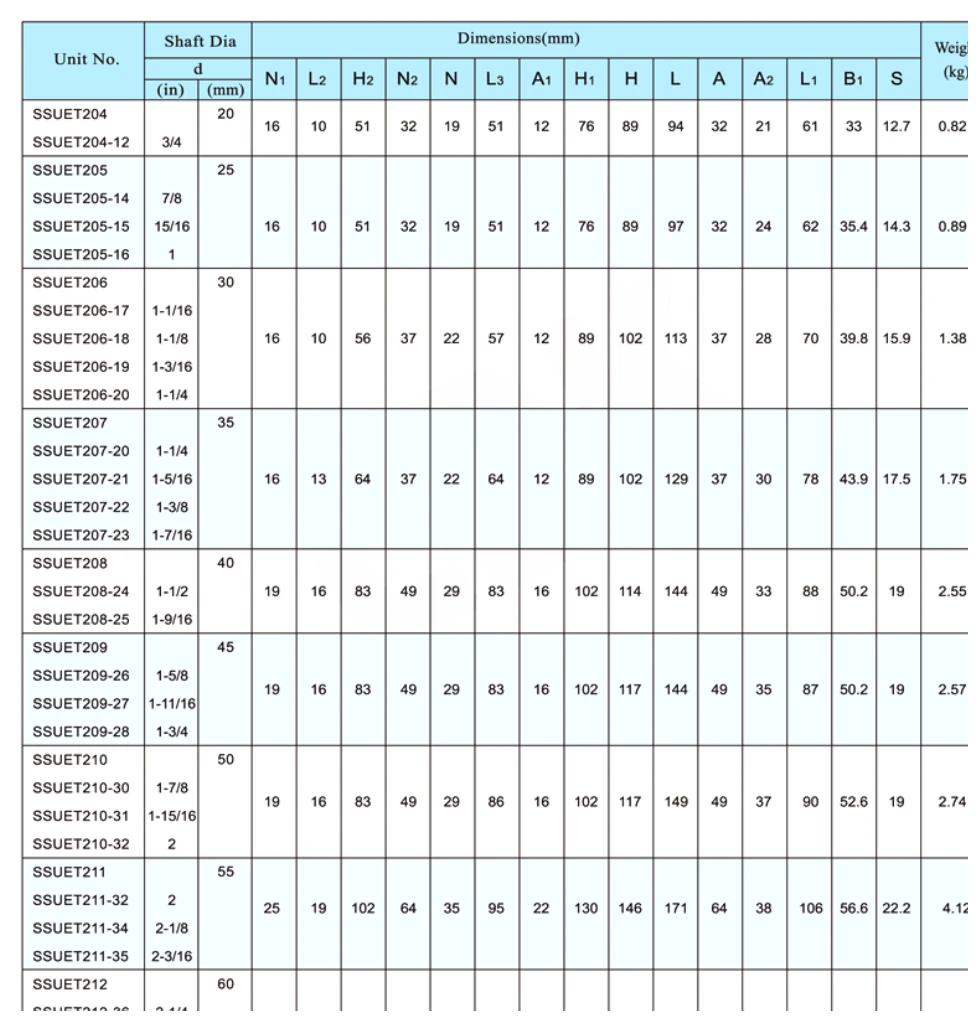

The full table is preserved as a WebP reference so every unit code remains aligned with its dimension columns. Zoom the image when checking closely spaced metric and inch variants.
A replacement should be checked against measurable interfaces, not appearance alone. Record the shaft size, mounting pattern, centerline or pilot dimensions and the method used to secure the bearing to the shaft. In this family, the intended role is all-stainless mounted support for corrosion-sensitive equipment.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | housing style and bolt pattern |
| 3 | locking method |
| 4 | environment, cover and lubrication requirements |
Use the catalogue page as the baseline and add project requirements separately. That keeps source-backed dimensions distinct from requested seals, covers, grease, materials or other options.
For a faster series check, include the installed unit code when available, plus shaft size, quantity and a photo or drawing of the mounting interface. Ever Power Netherlands Branch can review the quotation basis against the same reference.
