SSUEPA..A is a standard duty all stainless steel bearing units series for all-stainless mounted support for corrosion-sensitive equipment. The page keeps the complete catalogue drawing and model-by-model dimensional reference together for RFQ selection.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
SSUEPA..A is a standard duty series configured around all-stainless tapped-base pillow block with inch-based housing. Its catalogue definition uses concentric locking, with individual bore and dimensional variants retained in one model table.
The page keeps the full series together because housing geometry and locking method define the product family more clearly than a single bore size. Exact unit numbers remain in the source table for side-by-side checking.
The series can also be compared with other mounted-bearing families when the machine design is still open. Start from the bearing index, then return to the drawing that best matches the mounting interface. Browse related bearing families.
SSUEPA..A is treated as one catalogue series, with individual unit numbers retained inside the dimensional table.
The primary configuration is all-stainless tapped-base pillow block with inch-based housing, intended for all-stainless mounted support for corrosion-sensitive equipment.
All-stainless steel series. Confirm the selected insert, seal, grease and cover arrangement for the actual cleaning or corrosion exposure.
The table below records the series-level facts visible in the supplied catalogue heading. Model-specific dimensions are deliberately kept in the original dimensional table so values are not detached from their unit numbers.
| Series | SSUEPA..A |
|---|---|
| Catalogue Reference | Part B, page B114 |
| Product Family | All Stainless Steel Bearing Units |
| Duty Classification | Standard duty |
| Locking / Mounting Method | Concentric locking |
| Inner Ring / Bore Form | Wider inner ring / series-specific bore |
| Housing / Configuration | all-stainless tapped-base pillow block with inch-based housing |
| Material Note | All-stainless steel series |

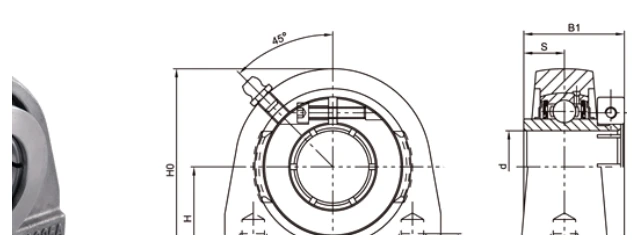

The drawing is placed directly before the dimensional reference because installation space is usually the quickest way to rule a series in or out. Match the drawing labels to the corresponding columns in the catalogue table before releasing an RFQ.
SSUEPA..A is relevant when washdown or wet-process equipment requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.
For food-processing and packaging machinery, this series provides the catalogue mounting form shown above. Confirm load, speed, shaft dimensions and service environment for the chosen model.
SSUEPA..A is relevant when corrosive-environment conveyors requires this housing format; verify shaft geometry, mounting interface, operating conditions and environment before final selection.

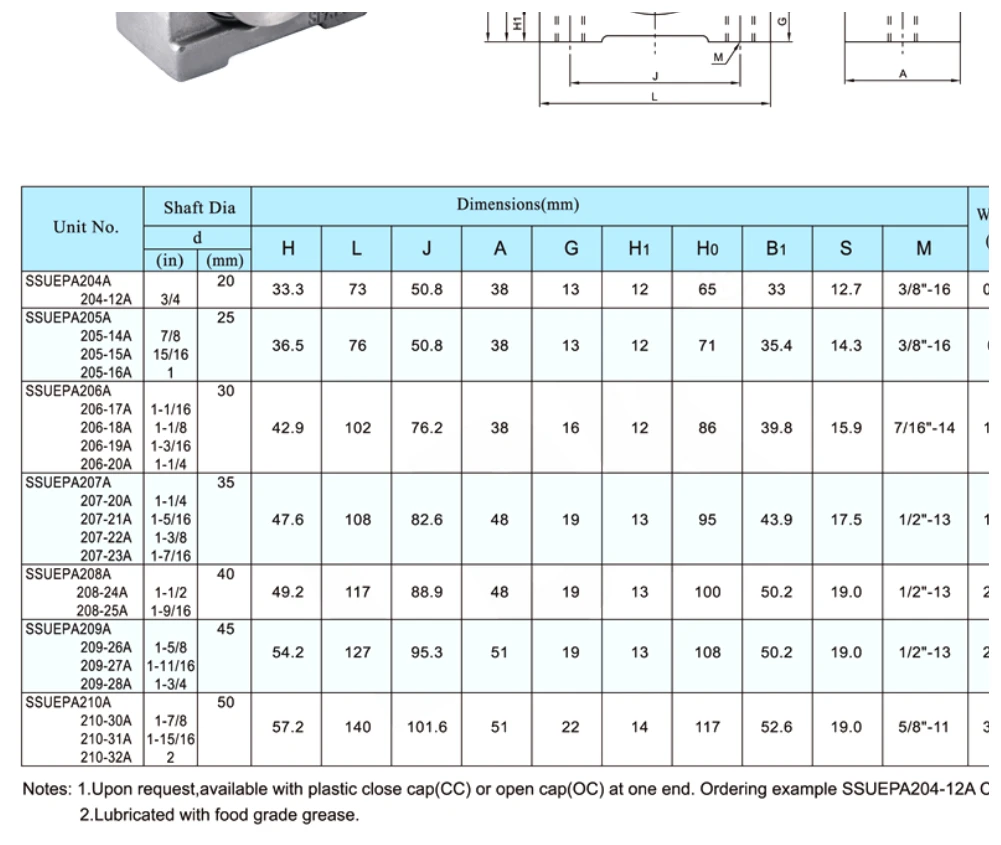

Use this catalogue table for the final unit-number check. It preserves the source row order, dimensional columns and metric/inch alternatives on one reference image.
Selection should move from fixed machine dimensions to the bearing code: first the mounting interface, then shaft size, then locking method and environment. This avoids choosing a familiar-looking unit that does not match the frame. In this family, the intended role is all-stainless mounted support for corrosion-sensitive equipment.
| Step | Information To Confirm |
|---|---|
| 1 | shaft diameter |
| 2 | housing style and bolt pattern |
| 3 | locking method |
| 4 | environment, cover and lubrication requirements |
Before quotation, confirm the source row that matches the required shaft and housing dimensions. Any option not stated for that row should be treated as an RFQ item rather than assumed as standard.
Quotation review is more reliable when the request includes the model row, shaft size and installation drawing. Add any corrosion, cleaning or maintenance requirement that could change the configuration. Ever Power Netherlands Branch can review the quotation basis against the same reference.
