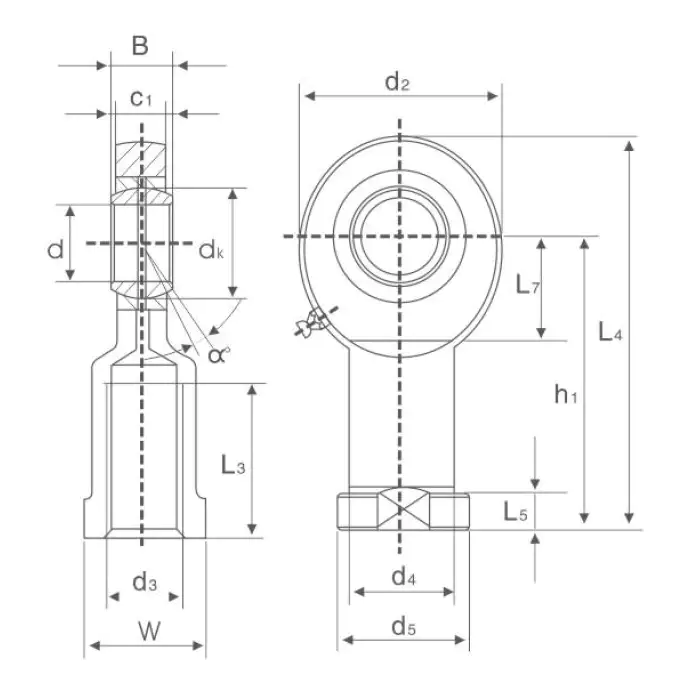

SI ES Rod End Bearing is a documented maintenance required series for industrial linkage or pivot applications. Rod-end housing with GE E(S)/GE ES 2RS insert; female metric thread. Use the main image for identification and the full product description for model-by-model dimensions and load data.
SI ES is built around a radial spherical plain bearing insert rather than a simple pressed liner. The female-thread housing accepts GE..E(S) or GE..ES 2RS type bearing construction and includes a lubrication route. That gives designers a serviceable rod end in sizes from 6 to 80 mm bore.
| Model | Bore d (mm) | Female Thread | B (mm) | C1 (mm) | Reference L (mm) | Dynamic Load (kN) | Static Load (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| SI6ES | 6 | M6x1.0 | 6 | 4.4 | 30 | 3.4 | 8.15 | 21 |
| SI8ES | 8 | M8x1.25 | 8 | 6 | 36 | 5.5 | 12.9 | 39 |
| SI10ES | 10 | M10x1.5 | 9 | 7 | 43 | 8.15 | 17.6 | 61 |
| SI12ES | 12 | M12x1.75 | 10 | 8 | 50 | 10.8 | 24.5 | 96 |
| SI15ES | 15 | M14x2.0 | 12 | 10 | 61 | 17.0 | 36.0 | 180 |
| SI17ES | 17 | M16x2.0 | 14 | 11 | 67 | 21.2 | 45.0 | 220 |
| SI20ES | 20 | M20x1.5 | 16 | 13 | 77 | 30.0 | 60.0 | 350 |
| SI25ES | 25 | M24x2.0 | 20 | 17 | 94 | 48.0 | 83.0 | 640 |
| SI30ES | 30 | M30x2.0 | 22 | 19 | 110 | 62.0 | 110 | 930 |
| SI35ES | 35 | M36x3.0 | 25 | 21 | 125 | 80.0 | 146 | 1300 |
| SI40ES | 40 | M39x3.0 | 28 | 23 | 142 | 100 | 180 | 2000 |
| SI45ES | 45 | M42x3.0 | 32 | 27 | 145 | 127 | 240 | 2500 |
| SI50ES | 50 | M45x3.0 | 35 | 30 | 160 | 156 | 290 | 3500 |
| SI60ES | 60 | M52x3.0 | 44 | 38 | 175 | 245 | 450 | 5500 |
| SI70ES | 70 | M56x4.0 | 49 | 42 | 200 | 315 | 610 | 8600 |
| SI80ES | 80 | M64x4.0 | 55 | 47 | 230 | 400 | 750 | 12000 |
The insert style and sealing arrangement should be chosen with the environment in mind. Start with bore and thread, then verify the eye width, center distance and load rating.
Provide a grease path that remains accessible after the cylinder or linkage is installed. When a sealed 2RS insert is selected, keep the seal lips clean during assembly.
SA ES uses a male thread; GE E / GE ES 2RS is the corresponding spherical plain bearing family without the rod-end housing; GIR C / GIR ET 2RS is the maintenance-free female-thread alternative.
