Metric tapered roller bearing series covering 302, 303, 313, 320, 322, 323, 330, 331 and 332 catalogue ranges.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
The Metric Series groups the catalogue’s metric tapered roller bearing references into a single product page while retaining every documented model row. Buyers can compare bore, outside diameter, overall width, load ratings and weight without creating a separate WordPress product for each size.
This page covers the Metric Series Tapered Roller Bearings as one catalogue series. Individual part numbers remain inside the technical table instead of being published as separate products. The supplied catalogue is the source of record for dimensions, ratings, speed data and weight shown below.
Tapered raceways are used where radial load is accompanied by axial load. Selection still depends on the actual load direction and bearing arrangement.
The catalogue separates inch, metric and SET references. Keep the exact catalogue number in the RFQ to avoid a size-system mismatch.
Confirm d, D and T against the mating shaft and housing before replacement or new-design approval.
Dimensions, load ratings and weight on this page come from the supplied catalogue; missing cells are not estimated.
For the broader range and neighbouring bearing families, visit our bearings catalogue.

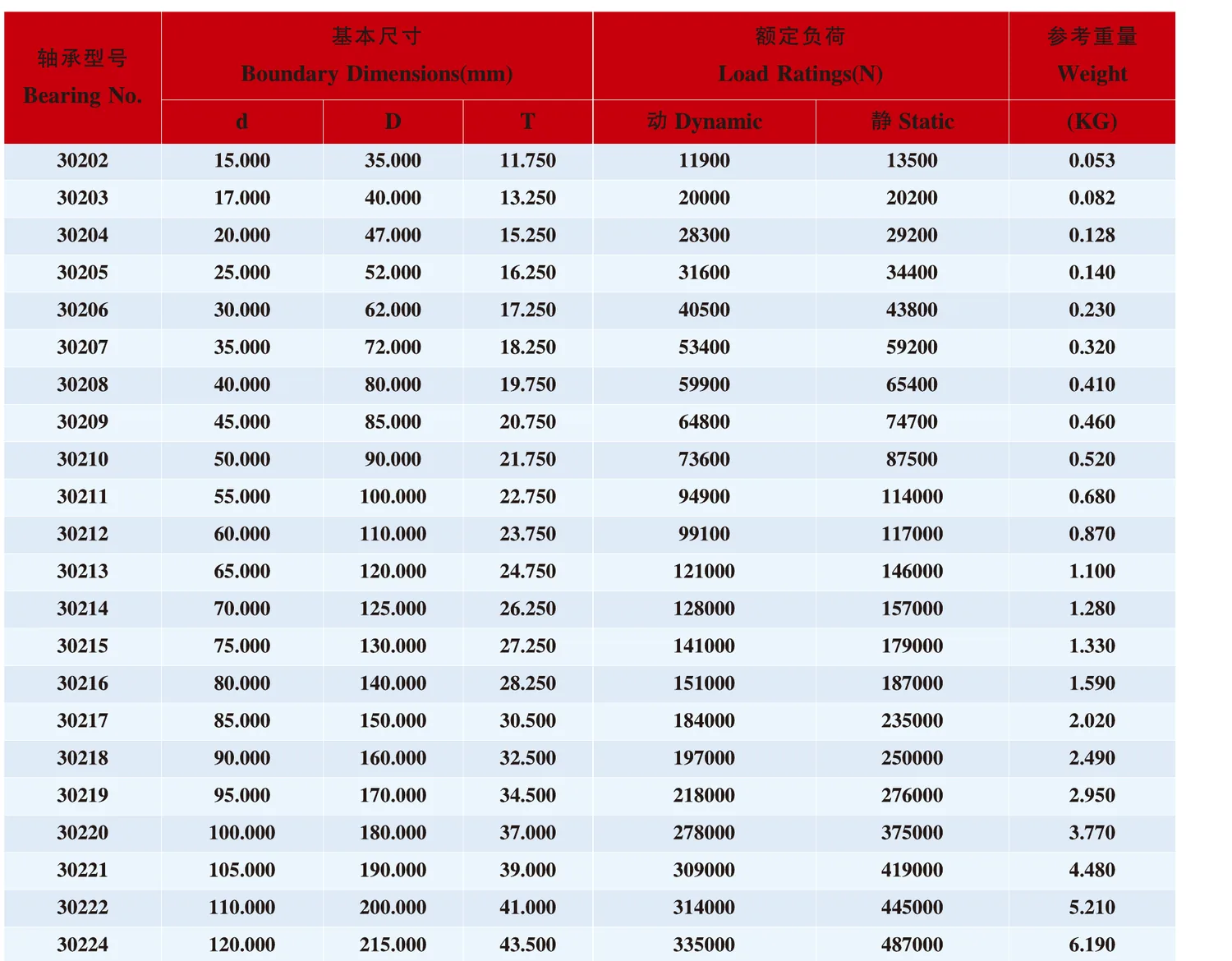

The table is transcribed from the supplied bearing catalogue. It is horizontally scrollable on phones and tablets so model numbers and technical values stay readable without forcing the page beyond the viewport.
| Bearing No. | d (mm) | D (mm) | T (mm) | Dynamic Load Rating (N) | Static Load Rating (N) | Weight (kg) |
|---|---|---|---|---|---|---|
| 30202 | 15.000 | 35.000 | 11.750 | 11900 | 13500 | 0.053 |
| 30203 | 17.000 | 40.000 | 13.250 | 20000 | 20200 | 0.082 |
| 30204 | 20.000 | 47.000 | 15.250 | 28300 | 29200 | 0.128 |
| 30205 | 25.000 | 52.000 | 16.250 | 31600 | 34400 | 0.140 |
| 30206 | 30.000 | 62.000 | 17.250 | 40500 | 43800 | 0.230 |
| 30207 | 35.000 | 72.000 | 18.250 | 53400 | 59200 | 0.320 |
| 30208 | 40.000 | 80.000 | 19.750 | 59900 | 65400 | 0.410 |
| 30209 | 45.000 | 85.000 | 20.750 | 64800 | 74700 | 0.460 |
| 30210 | 50.000 | 90.000 | 21.750 | 73600 | 87500 | 0.520 |
| 30211 | 55.000 | 100.000 | 22.750 | 94900 | 114000 | 0.680 |
| 30212 | 60.000 | 110.000 | 23.750 | 99100 | 117000 | 0.870 |
| 30213 | 65.000 | 120.000 | 24.750 | 121000 | 146000 | 1.100 |
| 30214 | 70.000 | 125.000 | 26.250 | 128000 | 157000 | 1.280 |
| 30215 | 75.000 | 130.000 | 27.250 | 141000 | 179000 | 1.330 |
| 30216 | 80.000 | 140.000 | 28.250 | 151000 | 187000 | 1.590 |
| 30217 | 85.000 | 150.000 | 30.500 | 184000 | 235000 | 2.020 |
| 30218 | 90.000 | 160.000 | 32.500 | 197000 | 250000 | 2.490 |
| 30219 | 95.000 | 170.000 | 34.500 | 218000 | 276000 | 2.950 |
| 30220 | 100.000 | 180.000 | 37.000 | 278000 | 375000 | 3.770 |
| 30221 | 105.000 | 190.000 | 39.000 | 309000 | 419000 | 4.480 |
| 30222 | 110.000 | 200.000 | 41.000 | 314000 | 445000 | 5.210 |
| 30224 | 120.000 | 215.000 | 43.500 | 335000 | 487000 | 6.190 |
| 30226 | 130.000 | 230.000 | 43.750 | 364000 | 525000 | 6.940 |
| 30228 | 140.000 | 250.000 | 45.750 | 407000 | 589000 | 8.750 |
| 30302 | 15.000 | 42.000 | 14.250 | 24400 | 22500 | 0.100 |
| 30303 | 17.000 | 47.000 | 15.250 | 30300 | 28400 | 0.130 |
| 30304 | 20.000 | 52.000 | 16.250 | 35600 | 34500 | 0.170 |
| 30305 | 25.000 | 62.000 | 18.250 | 50200 | 50100 | 0.260 |
| 30306 | 30.000 | 72.000 | 20.750 | 59500 | 60600 | 0.380 |
| 30307 | 35.000 | 80.000 | 22.750 | 80400 | 85600 | 0.520 |
| 30308 | 40.000 | 90.000 | 25.250 | 91400 | 102000 | 0.720 |
| 30309 | 45.000 | 100.000 | 27.250 | 114000 | 130000 | 0.960 |
| 30310 | 50.000 | 110.000 | 29.250 | 131000 | 150000 | 1.230 |
| 30311 | 55.000 | 120.000 | 31.500 | 150000 | 172000 | 1.560 |
| 30312 | 60.000 | 130.000 | 33.500 | 186000 | 221000 | 1.960 |
| 30313 | 65.000 | 140.000 | 36.000 | 206000 | 242000 | 2.410 |
| 30314 | 70.000 | 150.000 | 38.000 | 233000 | 276000 | 2.920 |
| 30315 | 75.000 | 160.000 | 40.000 | 250000 | 318000 | 3.580 |
| 30316 | 80.000 | 170.000 | 42.500 | 278000 | 356000 | 4.270 |
| 30317 | 85.000 | 180.000 | 44.500 | 304000 | 292000 | 4.970 |
| 30318 | 90.000 | 190.000 | 46.500 | 341000 | 341000 | 5.790 |
| 30319 | 95.000 | 200.000 | 49.500 | 368000 | 483000 | 6.800 |
| 30320 | 100.000 | 215.000 | 51.500 | 402000 | 490000 | 8.200 |
| 31305 | 25.000 | 62.000 | 18.250 | 40700 | 46000 | 0.264 |
| 31306 | 30.000 | 72.000 | 20.750 | 47300 | 50000 | 0.396 |
| 31307 | 35.000 | 80.000 | 22.750 | 61600 | 67000 | 0.518 |
| 31308 | 40.000 | 90.000 | 25.250 | 81000 | 96000 | 0.727 |
| 31309 | 45.000 | 100.000 | 27.250 | 91000 | 102000 | 0.947 |
| 31310 | 50.000 | 110.000 | 29.250 | 106000 | 120000 | 1.220 |
| 31311 | 55.000 | 120.000 | 31.500 | 130000 | 158000 | 1.560 |
| 31312 | 60.000 | 130.000 | 33.500 | 145000 | 176000 | 1.910 |
| 31313 | 65.000 | 140.000 | 36.000 | 165000 | 202000 | 2.390 |
| 31314 | 70.000 | 150.000 | 38.000 | 218000 | 274000 | 2.950 |
| 31315 | 75.000 | 160.000 | 40.000 | 209000 | 245000 | 3.390 |
| 32004X | 20.000 | 42.000 | 15.000 | 21100 | 29400 | 0.100 |
| 32005X | 25.000 | 47.000 | 15.000 | 28500 | 35400 | 0.140 |
| 32006X | 30.000 | 55.000 | 17.000 | 36300 | 45400 | 0.170 |
| 32007X | 35.000 | 62.000 | 18.000 | 44200 | 57800 | 0.230 |
| 32008X | 40.000 | 68.000 | 19.000 | 51400 | 71600 | 0.270 |
| 32009X | 45.000 | 75.000 | 20.000 | 61600 | 84600 | 0.330 |
| 32010X | 50.000 | 80.000 | 20.000 | 64800 | 92900 | 0.370 |
| 32011X | 55.000 | 90.000 | 23.000 | 88000 | 126000 | 0.570 |
| 32012X | 60.000 | 95.000 | 23.000 | 89600 | 132000 | 0.600 |
| 32013X | 65.000 | 100.000 | 23.000 | 91000 | 138000 | 0.630 |
| 32014X | 70.000 | 110.000 | 25.000 | 105000 | 166000 | 0.940 |
| 32015X | 75.000 | 115.000 | 25.000 | 106100 | 170000 | 0.900 |
| 32016X | 80.000 | 125.000 | 29.000 | 154000 | 239000 | 1.280 |
| 32017X | 85.000 | 130.000 | 29.000 | 151000 | 235000 | 1.340 |
| 32018X | 90.000 | 140.000 | 32.000 | 170000 | 264000 | 1.730 |
| 32019X | 95.000 | 145.000 | 32.000 | 172000 | 274000 | 1.800 |
| 32020X | 100.000 | 150.000 | 32.000 | 180000 | 296000 | 1.770 |
| 32021X | 105.000 | 160.000 | 35.000 | 210000 | 339000 | 2.320 |
| 32022X | 110.000 | 170.000 | 38.000 | 261000 | 433000 | 3.110 |
| 32024X | 120.000 | 180.000 | 38.000 | 271000 | 466000 | 3.340 |
| 32028X | 140.000 | 210.000 | 45.000 | 364000 | 641000 | 5.290 |
| 32030X | 150.000 | 225.000 | 48.000 | 369000 | 655000 | 6.380 |
| 32032X | 160.000 | 240.000 | 51.000 | 429000 | 780000 | 7.530 |
| 32036X | 180.000 | 280.000 | 64.000 | 644000 | 1160000 | 14.500 |
| 32204 | 20.000 | 47.000 | 19.250 | 36500 | 39500 | 0.161 |
| 32205 | 25.000 | 52.000 | 19.250 | 42000 | 47000 | 0.184 |
| 32206 | 30.000 | 62.000 | 21.250 | 50300 | 57600 | 0.280 |
| 32207 | 35.000 | 72.000 | 24.250 | 69300 | 82300 | 0.430 |
| 32208 | 40.000 | 80.000 | 24.750 | 74900 | 86400 | 0.520 |
| 32209 | 45.000 | 85.000 | 24.750 | 81100 | 98800 | 0.560 |
| 32210 | 50.000 | 90.000 | 24.750 | 82300 | 100000 | 0.600 |
| 32211 | 55.000 | 100.000 | 26.750 | 112000 | 141000 | 0.820 |
| 32212 | 60.000 | 110.000 | 29.750 | 127000 | 160000 | 1.120 |
| 32213 | 65.000 | 120.000 | 32.750 | 161000 | 209000 | 1.520 |
| 32214 | 70.000 | 125.000 | 33.250 | 169000 | 224000 | 1.590 |
| 32215 | 75.000 | 130.000 | 33.250 | 170000 | 227000 | 1.650 |
| 32216 | 80.000 | 140.000 | 35.250 | 190000 | 249000 | 2.030 |
| 32217 | 85.000 | 150.000 | 38.500 | 227000 | 305000 | 2.570 |
| 32218 | 90.000 | 160.000 | 42.500 | 258000 | 348000 | 3.280 |
| 32219 | 95.000 | 170.000 | 45.500 | 293000 | 401000 | 4.010 |
| 32220 | 100.000 | 180.000 | 49.000 | 341000 | 478000 | 4.900 |
| 32221 | 105.000 | 190.000 | 53.000 | 369000 | 516000 | 5.900 |
| 32222 | 110.000 | 200.000 | 56.000 | 426000 | 612000 | 7.060 |
| 32224 | 120.000 | 215.000 | 61.500 | 502000 | 753000 | 8.890 |
| 32226 | 130.000 | 230.000 | 67.750 | 549000 | 895000 | 11.500 |
| 32228 | 140.000 | 250.000 | 71.750 | 640000 | 1060000 | 14.400 |
| 32230 | 150.000 | 270.000 | 77.000 | 718000 | 1190000 | 18.200 |
| 32232 | 160.000 | 290.000 | 84.000 | 852000 | 1440000 | 21.100 |
| 32234 | 170.000 | 310.000 | 91.000 | 1010000 | 1630000 | 28.500 |
| 32236 | 180.000 | 320.000 | 91.000 | 998000 | 1720000 | 29.800 |
| 32238 | 190.000 | 340.000 | 97.000 | 1110000 | 1920000 | 36.000 |
| 32240 | 200.000 | 360.000 | 104.000 | 1210000 | 2000000 | 42.700 |
| 32244 | 220.000 | 400.000 | 115.000 | 1530000 | 2560000 | 58.300 |
| 32304 | 20.000 | 52.000 | 22.250 | 46400 | 48300 | 0.230 |
| 32305 | 25.000 | 62.000 | 25.250 | 67000 | 72300 | 0.360 |
| 32306 | 30.000 | 72.000 | 28.750 | 81100 | 89800 | 0.550 |
| 32307 | 35.000 | 80.000 | 32.750 | 107000 | 123000 | 0.740 |
| 32308 | 40.000 | 90.000 | 35.250 | 123000 | 150000 | 1.010 |
| 32309 | 45.000 | 100.000 | 38.250 | 143000 | 172000 | 1.340 |
| 32310 | 50.000 | 110.000 | 42.250 | 173000 | 211000 | 1.660 |
| 32311 | 55.000 | 120.000 | 45.500 | 211000 | 265000 | 2.130 |
| 32312 | 60.000 | 130.000 | 48.500 | 244000 | 310000 | 2.690 |
| 32313 | 65.000 | 140.000 | 51.000 | 280000 | 358000 | 3.260 |
| 32314 | 70.000 | 150.000 | 54.000 | 316000 | 407000 | 4.250 |
| 32315 | 75.000 | 160.000 | 58.000 | 346000 | 488000 | 5.340 |
| 32316 | 80.000 | 170.000 | 61.500 | 387000 | 549000 | 6.380 |
| 32317 | 85.000 | 180.000 | 63.500 | 421000 | 599000 | 7.300 |
| 32318 | 90.000 | 190.000 | 67.500 | 477000 | 477000 | 8.780 |
| 32319 | 95.000 | 200.000 | 71.500 | 515000 | 745000 | 10.700 |
| 32320 | 100.000 | 215.000 | 77.500 | 572000 | 780000 | 13.000 |
| 32321 | 105.000 | 225.000 | 81.500 | 646000 | 955000 | 14.500 |
| 32322 | 110.000 | 240.000 | 84.500 | 722000 | 1070000 | 17.800 |
| 32324 | 120.000 | 260.000 | 90.500 | 824000 | 1240000 | 21.700 |
| 32334 | 170.000 | 360.000 | 128.000 | 1300000 | 1760000 | 59.500 |
| 33015 | 75.000 | 115.000 | 31.000 | 147000 | 240000 | 1.150 |
| 33019 | 95.000 | 145.000 | 39.000 | 228000 | 378000 | 2.190 |
| 33022 | 110.000 | 170.000 | 47.000 | 315000 | 563000 | 3.800 |
| 33109 | 45.000 | 80.000 | 26.000 | 88000 | 119000 | 0.520 |
| 33115 | 75.000 | 125.000 | 37.000 | 189000 | 287000 | 1.730 |
| 33116 | 80.000 | 130.000 | 37.000 | 193000 | 299000 | 1.850 |
| 33118 | 90.000 | 150.000 | 45.000 | 284000 | 447000 | 3.220 |
| 33205 | 25.000 | 52.000 | 22.000 | 51100 | 63600 | 0.220 |
| 33206 | 30.000 | 62.000 | 25.000 | 64400 | 76500 | 0.370 |
| 33207 | 35.000 | 72.000 | 28.000 | 84200 | 106000 | 0.522 |
| 33208 | 40.000 | 80.000 | 32.000 | 112000 | 144000 | 0.730 |
| 33209 | 45.000 | 85.000 | 32.000 | 116000 | 155000 | 0.810 |
| 33210 | 50.000 | 90.000 | 32.000 | 120000 | 166000 | 0.830 |
| 33211 | 55.000 | 100.000 | 35.000 | 150000 | 201000 | 1.130 |
| 33212 | 60.000 | 110.000 | 38.000 | 183000 | 253000 | 1.530 |
| 33213 | 65.000 | 120.000 | 41.000 | 205000 | 280000 | 1.990 |
| 33214 | 70.000 | 125.000 | 41.000 | 220000 | 314000 | 2.080 |
| 33215 | 75.000 | 130.000 | 41.000 | 219000 | 316000 | 2.140 |
| 33216 | 80.000 | 140.000 | 46.000 | 272000 | 403000 | 2.940 |
| 33217 | 85.000 | 150.000 | 49.000 | 325000 | 483000 | 2.030 |
| 33220 | 100.000 | 180.000 | 63.000 | 429000 | 655000 | 6.780 |
Catalogue source pages: 12–15. Values and units are reproduced from the supplied catalogue. Missing fields remain blank/—; no missing value is estimated.
Start with the exact metric series and model number shown on the existing bearing or drawing.
Check dynamic/static rating, operating speed and expected life together rather than selecting on bore alone.
Confirm shaft/housing fits, axial setting and lubrication method during RFQ.
Metric tapered roller bearings are considered for industrial transmissions, shafts, hubs and machinery that need controlled support under radial and axial loading. Use the exact duty and bearing arrangement when selecting a size.
Send the catalogue part number, required quantity, shaft/bore requirement, operating speed, radial/axial load information and any fit or sealing requirement. If the source table contains a blank field, our team can confirm it before quotation.
