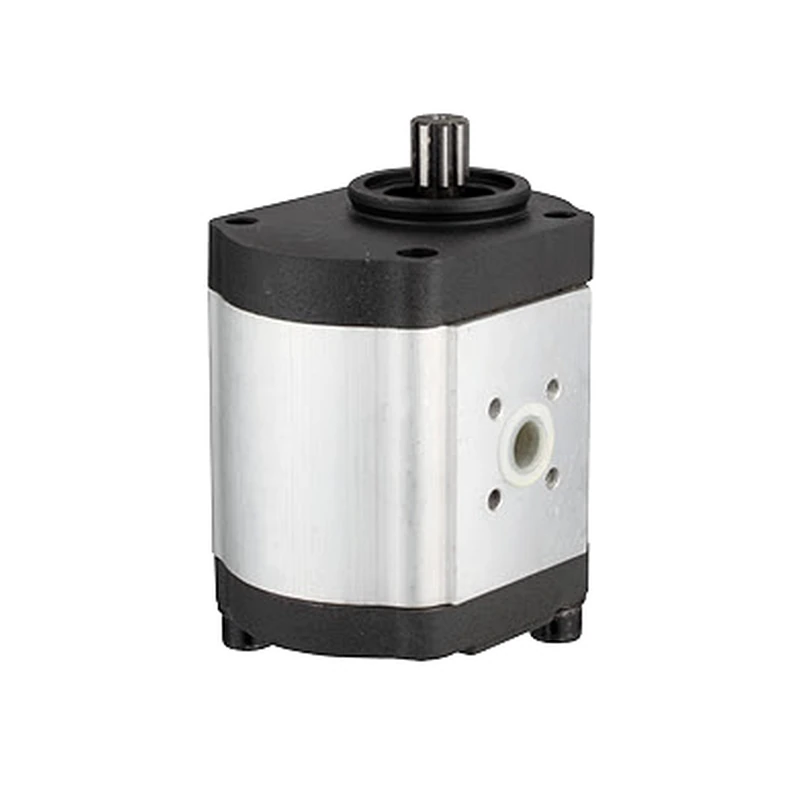

7228132 / 20 cc: 20 ml/rev, 200 bar, clockwise (CW). Flexible MOQ by model and order value; 1–2 pcs can be considered at a higher unit price.
The 7228132 line is a 20 ml/rev clockwise Massey Ferguson reference at 200 bar. With 20 mm feed and 15 mm discharge holes, it is not a direct match for the similarly sized 14 ml/rev MF unit. The table also lists 72277154 and 2452995 as search references to verify against the removed part.
The main identification for this entry is 7228132 / 20 cc. The accompanying reference list is 7228132; 72277154; 2452995; compare the reference stamped on the removed body rather than relying on a generic seller photo.
No specific tractor serial ranges are established here for 7228132 / 20 cc. Use the parts manual and existing hardware to complete the application check.
| Reference / model | 7228132 / 20 cc |
|---|---|
| Product type | Tractor Hydraulic Gear Pump |
| Original reference numbers | 7228132; 72277154; 2452995 |
| Applicable tractor models | Confirm from original pump / equipment parts list |
| Manufacturer reference | Not provided |
| Nominal displacement | 20 ml/rev |
| Maximum pressure | 200 bar |
| Rotational speed | 600–3000 rpm |
| Controlled flow rate | Not stated |
| Feed hole / connection | Ø20 |
| Discharge hole / connection | Ø15 |
| Rotation | clockwise (CW) |
The directional entry is CW, viewed using the catalogue’s shaft orientation. A correct replacement should use the same viewing convention rather than assuming clockwise from the engine side.
For hose matching, write down both port specifications: feed Ø20, discharge Ø15. Thread class and sealing face matter as much as nominal size.
Drive rotationCW
Displacement20 ml/rev
Connection checkØ20 / Ø15
One comparison point is Massey Ferguson 3533911M91 / 14 cc, where the record shows 14 ml/rev and 250 bar. The present 7228132 / 20 cc specification (20 ml/rev, 200 bar) should be kept separate.
When two options remain, request front and side views of the actual units rather than treating parts-list overlap as a full approval.
7228132 / 20 cc carries a 20 ml/rev displacement entry. This is not a stand-alone guarantee of a required lift speed; the working rpm and load-dependent losses remain system-specific.
Within the comparison set, 3533911M91 / 14 cc lists 14 ml/rev and 250 bar. That is a useful limit check for the 7228132 / 20 cc hydraulic request, not permission to alter the tractor’s original pump rating.
There is no controlled-flow figure in this entry. A system drawing is needed if a regulated or priority hydraulic flow function is involved.
The stated speed is 600–3000 rpm. Before commissioning, verify the engine accessory drive ratio and that normal operating conditions do not exceed this listing.
For a unit marked 7228132, compare the housing register and drive stub before connecting pressure lines. A distorted mounting face or damaged coupling should be corrected rather than forcing the new pump into place.
Make the clockwise/counterclockwise check explicit in the workshop instruction: 7228132 / 20 cc is CW.
Please identify the tractor or engine installation for 7228132 / 20 cc, together with the serial number if available. A sketch showing the Ø20 and Ø15 connections will shorten the matching process.
Let the quotation identify any uncertainties in compatibility before manufacturing begins.
No. Confirm the exact pump removed from the tractor, its drive-side rotation and its connection geometry.
No interchangeability is implied. The supplied listing is CW and the shaft-end reference direction must be confirmed.
Order quantities are set according to pump type and total order value. A small order of 1–2 pieces can be considered at a higher unit price; new customers may request 1–5 samples when the item is suitable. Mixed-model orders are available, normally with a combined order value of approximately USD 1,500.
Typical production schedules are 10–25 working days for standard items, 20–45 working days for customized components, and 45–120 working days for project equipment. Usual delivery terms are EXW, FOB, CIF and DAP. FCA, CFR, CPT, CIP and DDP can be discussed for specific shipments. Confirm the final schedule and terms with the quotation.
Third-party brand names and trademarks are used only for product identification and cross-reference. They remain the property of their respective owners; such references do not imply affiliation, sponsorship, authorization or endorsement.
Send the old pump reference, quantity, photos and interface measurements to our sales team.
