CBFZ-F32ALK1X — 32 ml/rev; max. 25 MPa; 3000 rpm; counterclockwise rotation. MOQ is flexible by pump type and order value, with 1–2 pcs available at higher unit prices.
25 MPa • 3000 rpm • Counterclockwise rotation

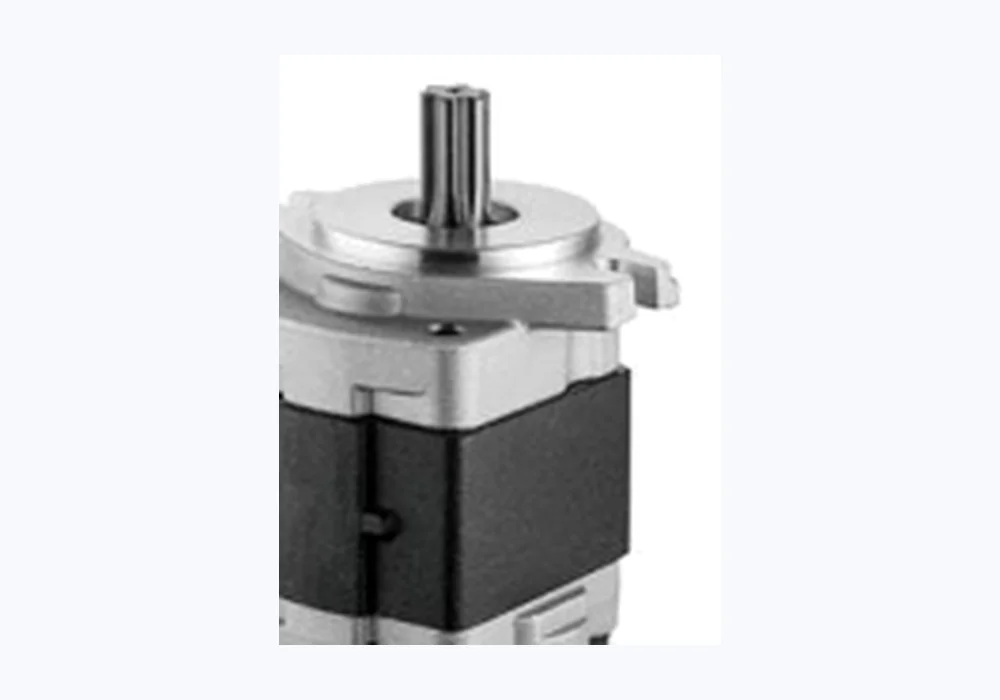

CBFZ-F32ALK1X is a forklift hydraulic gear pump offered by Ever Power Netherlands Branch. Nominal displacement is 32 ml/rev, the listed pressure is 25 MPa, and the speed reference is 3000 rpm.
A forklift working pump supplies oil to lifting, tilting and, depending on machine layout, other hydraulic services. Displacement and pressure determine only part of the selection; rotation hand and mechanical interfaces often decide whether a replacement will fit.
This CBFZ reference provides 32 ml/rev at a listed 25 MPa, with counterclockwise rotation. It shares those hydraulic figures with CPC30.5.18 but still needs separate dimensional matching.
Most listed working pumps are counterclockwise; CBHZA-F36-AF is clockwise.
Compare system relief pressure and continuous demand with the selected model.
Shaft, flange, drive features and ports must be checked against the original assembly.
A shared 32 ml/rev displacement does not guarantee the same flange, drive tang, shaft length or inlet/outlet position.
The pump draws from the hydraulic reservoir through the suction circuit.
Pressurised flow serves lift, tilt or another circuit as controlled by valves.
The circuit returns oil to the tank; cleanliness and pressure relief protect the system.
Compare nearby pump references by actual hydraulic figures first. Connection geometry and pump drive arrangement still need to be matched independently.
| Model | Displacement | Pressure | Speed | Rotation |
|---|---|---|---|---|
| CBFZ-F32ALK1X | 32 ml/rev | 25 MPa | 3000 rpm | Counterclockwise |
| CBHZA-F36-AF | 36 ml/rev | 25 MPa | 3000 rpm | Clockwise |
| CPC30.5.18 | 32 ml/rev | 25 MPa | 3000 rpm | Counterclockwise |
| SGP1A36A1H1-L534D | 35.7 ml/rev | 24.5 MPa | 3000 rpm | Counterclockwise |
| Product reference | CBFZ-F32ALK1X |
|---|---|
| Pump application | Forklift Hydraulic Gear Pump |
| Nominal displacement | 32 ml/rev |
| Listed maximum pressure | 25 MPa |
| Speed reference | 3000 rpm |
| Rotation direction | Counterclockwise |
| Inlet / suction connection | Not specified |
| Outlet / discharge connection | Not specified |
| Typical application | forklift lifting and auxiliary hydraulic circuits |
| Mounting/shaft drawing | Confirm dimensions and drawing availability for the ordered configuration |
| Supplier | Ever Power Netherlands Branch |
Flow and pressure must be evaluated with the machine’s pump drive, circuit relief setting and duty cycle. The listed maximum is not a blanket continuous-duty guarantee.
The 32 ml/rev displacement and 25 MPa rating belong to a counterclockwise working pump. Compare the pump with the installed drive-end geometry and machine hydraulic scheme. A near match in flow does not prove physical interchangeability.
A forklift enquiry is more precise when it includes the truck make and model, current pump code, shaft and flange photos, suction/discharge positions, relief setting and the required quantity.
Check the rotation arrow and shaft-end viewing convention. Wrong-hand rotation can prevent proper suction and damage the pump.
Measure flange registers, mounting holes, shaft projection and inlet/outlet port centres against the removed assembly.
Use the machine-approved hydraulic oil, maintain reservoir cleanliness and verify relief settings and operating noise after installation.
Use the original pump marking for identification, then compare the shaft, flange, port layout, rotation and hydraulic duty. OEM reference numbers help start a cross-check; they do not by themselves establish one-to-one interchangeability.
| Reference to compare | CBFZ-F32ALK1X |
|---|---|
| Hydraulic figures | 32 ml/rev; 25 MPa; 3000 rpm |
| Rotation check | Counterclockwise |
| Physical check | Drive end, flange, ports, clearance and mounting hole centres |
| Documents for confirmation | Nameplate or OEM reference, photos, dimensioned drawing where available |
Use the drive-end view and the machine or pump drawing to determine the rotation convention; never infer direction from the general forklift application alone.
Not automatically. Compare the duty rating, relief settings and thermal operating conditions as well as physical interfaces.
Matching displacement alone is insufficient. Shaft, flange, direction and port positions must also be checked.
Include the forklift make/model, original pump reference, rotation, shaft/flange measurements or photos and the number of units needed.
Minimum order quantity (MOQ) is assessed by pump type, specification and total order value. Where production conditions allow, orders of just 1–2 units can be quoted, although the unit price will usually be higher than for a batch order.
New customers may request 1–5 samples when suitable. Availability and sample pricing are confirmed for the selected model.
Different hydraulic pump models may be combined in one order; the target combined order value is approximately USD 1,500.
Standard parts: 10–25 working days. Customized assemblies: 20–45 working days. Project equipment: 45–120 working days.
Trade terms: EXW, FOB, CIF and DAP are normally available. FCA, CFR, CPT, CIP and DDP can be discussed according to the destination and shipment requirements. The agreed lead time and Incoterm will be stated in the formal quotation.
For another pump reference within this application, compare CPC30.5.18. Confirm the replacement interfaces rather than ordering from displacement figures alone.
For CBFZ-F32ALK1X, send the required quantity, the equipment model, an existing part number, shaft and port photos, and any available dimension drawing. Contact Ever Power Netherlands Branch at sales@netherlandsdrive.com.
