LIN-02 alternate sliding-membrane series from the LIN plastic linear-bearing family. Designed for quiet, corrosion-resistant dry running; exact dimensions and load data remain model specific.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
LIN-02 provides the second catalogue membrane geometry for designers matching a different housing or wall arrangement. It belongs to designers choosing the second membrane geometry, usually because the receiving bore or wall arrangement differs from the LIN-01 installation.
For material screening, the published figures are 1.48 g/cm³ density and a dry steel friction band from 0.05 to 0.15. Pressure and speed must also stay inside the stated 0.4 N/mm²·m/s PV envelope. The published thermal window allows continuous use from -50 °C through +90 °C; +120 °C is listed only for short-duration exposure.
| Check | Source Data | Engineering Use |
|---|---|---|

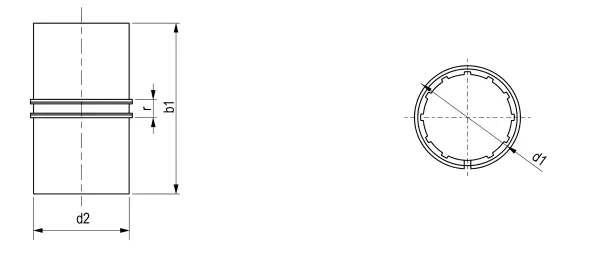

| Key drawing fields | order code / d1 / tolerance / d2 / b1 / radius / weight | Read the exact model row |
| Dry sliding coefficient | 0.05–0.15 against steel | Family material value |
| PV ceiling | 0.4 N/mm²·m/s | Combined pressure-speed limit |
| Material density | 1.48 g/cm³ | Published LIN material property |
| Temperature window | -50/+90 °C continuous; to +120 °C short | Check ambient and frictional heating |
| Source pages | 82–102 | Supplied linear-bearing catalogue |
| Series / form | LIN-02 | alternate sliding-membrane series |
Data boundary: The figures above are published family properties. Exact dimensions, housing fits and load values for LIN-02 stay model specific and should come from the selected catalogue row.
The alternate membrane can suit special housings, guides and compact mechanisms where the designer wants a thin polymer interface but the LIN-01 geometry does not match the bore arrangement.
For LIN-02, corrosion resistance and lubricant-free travel can simplify machine housekeeping. The catalogue also notes that the LIN material can be cleaned with disinfecting solution, which is useful context for equipment where oil migration would be undesirable.
Use the LIN-02 table when the housing envelope points to the second membrane family. Avoid converting a nearby LIN-01 size by wall thickness unless the catalogue dimensions explicitly agree.
After the geometry is identified, compare the real duty with the dry-running material limits. Record load, sliding speed, stroke, shaft finish and operating temperature in the RFQ so LIN-02 is checked as a system rather than as a bore-size lookup.
Keep the receiving bore free of burrs and verify the liner is fully seated. Uneven support behind a thin membrane can produce local pressure peaks even when the nominal shaft fit is correct.
This family does not depend on scheduled grease replenishment. Inspection should instead look for abnormal clearance, embedded abrasive particles, heat and uneven wear; those symptoms often point to shaft or alignment issues around the LIN-02 installation.
Send the LIN-02 model if known, shaft size, quantity, mounting dimensions and duty conditions to sales@netherlandsdrive.com. Ever Power Netherlands Branch will use the supplied catalogue family as the technical reference for selection.
