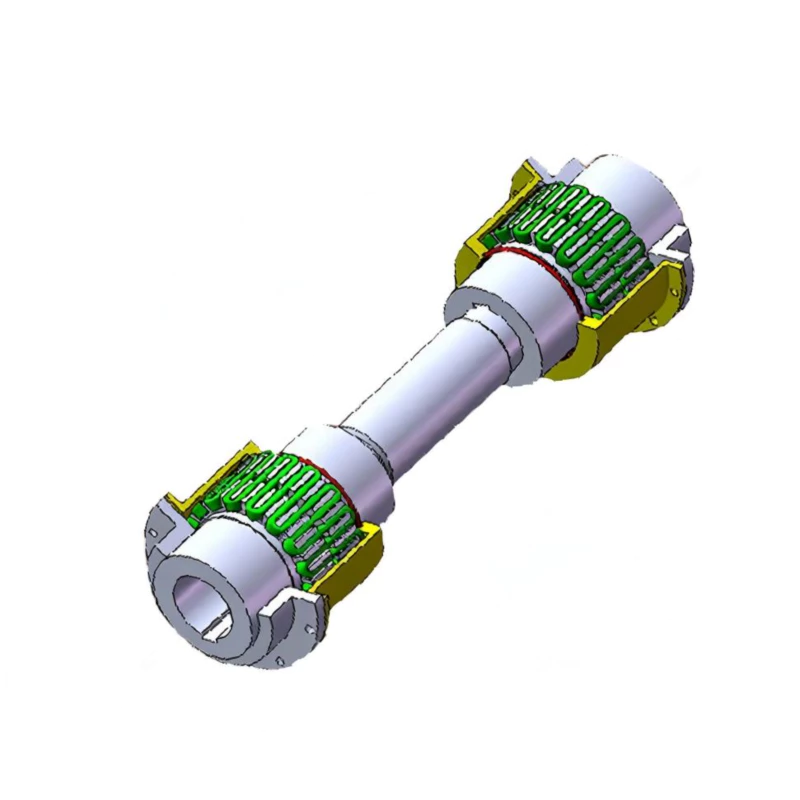

JSJ Intermediate Shaft Grid Coupling

JSJ Intermediate Shaft Grid Coupling: engineering overview

JSJ Intermediate Shaft Grid Coupling is presented here as an engineering selection page rather than a repetition of catalogue copy. The purpose is to make the operating logic, dimensional checks and ordering information easier to review while keeping the original technical values intact.

A grid coupling transmits torque through a serpentine spring grid seated in curved grooves machined into two hubs. The grid flexes under load, giving the coupling a combination of metallic torque capacity and shock-absorbing behavior. A split cover retains lubricant and protects the spring and groove contact surfaces.

Key Features & Design Characteristics

How this version is configured

The grid can deflect under shock and transient overload, helping reduce the peak load passed to connected equipment. At the same time, the spring-to-groove contact needs adequate lubrication. Alignment, cover sealing, grid condition and hub fit all influence service life, especially on reversing or high-cyclic duties.

• The intermediate member increases the separation between connected shafts, so shaft stiffness, balance and critical-speed behavior become part of the selection.

Selection sequence for a real machine

Select from calculated design torque after applying the appropriate service factor, then verify speed, bore range, hub dimensions, cover clearance and shaft spacing. Special arrangements such as brake wheels, brake discs, flange interfaces or intermediate shafts add dimensional checks that should be resolved from the exact model drawing.

1. Define continuous torque, starting torque and any short-duration peak load instead of selecting from motor power alone.
2. Confirm rotational speed and check whether balance, centrifugal loading or critical-speed limits affect the chosen size.
3. Match every shaft interface: bore diameter, key or locking method, hub length, flange pilot, bolt pattern and available assembly clearance.
4. Review angular, axial and parallel displacement separately. A coupling that tolerates one form of movement may have a much lower limit for another.
5. Check the surrounding equipment for guards, brakes, bearings, seals and maintenance access before freezing the final outside diameter and overall length.
6. Use the exact model matrix for the final dimensional decision; do not interpolate a bore, torque or speed value that is not listed.

Technical Specifications & Dimensions

Use the tables below as the dimensional and model reference. Confirm bore, shaft fit, speed, torque and installation envelope before final selection.

Standards and designation references found in the source data

Where a standard or designation is shown below, treat it as a reference tied to the original product data and verify the applicable revision when placing an order.

Shaft fit, alignment and assembly checks

Install the hubs at the specified gap, align the shafts, fit the grid progressively into the grooves and pack the coupling with the recommended lubricant before closing the cover. Check cover gaskets and fasteners carefully; lubricant loss can quickly change the operating condition of the grid and grooves.

Measure the actual shaft diameters and keyways before machining or confirming a finished bore. A drawing should identify shaft tolerances, key dimensions, required hub position and any shoulder, locknut or axial-retention feature. Alignment readings should be taken after the machine is in its normal installed condition because base distortion, pipe strain, belt pull or thermal growth can move the shaft centers after an initial bench alignment.

After assembly, turn the drive through at least one full revolution by hand where practical. Check for interference with guards, brake hardware and adjacent structures, then verify fastener security. On equipment that changes temperature significantly between start-up and steady operation, compare cold and hot alignment expectations before setting final offsets.

Operating behavior and service planning

Inspect for grease leakage, cracked grid sections, groove wear, loose bolts, corrosion and rising vibration. During scheduled service, clean the components sufficiently to inspect contact surfaces rather than adding fresh grease over contaminated material. A damaged grid should be replaced together with an investigation of alignment and overload conditions.

A coupling should not be used as a permanent correction for poor machine alignment. If vibration, temperature or noise changes after commissioning, compare the current condition with the initial baseline. Check connected bearings and shafts at the same time, because many coupling symptoms originate from looseness, soft foot, imbalance or movement elsewhere in the drivetrain.

For planned maintenance, record the installed model, actual bore sizes, fastener details, lubricant or flexible-element grade where applicable, and the measured alignment at return to service. That information makes later inspection more useful and helps distinguish normal wear from a change in machine condition.

Information to include with an RFQ or drawing review

• Required model or the closest model already identified from the specification data.
• Driving and driven shaft diameters, tolerances, keyways and available engagement length.
• Continuous torque, peak torque, starts per hour and whether the drive reverses.
• Normal and maximum rotational speed.
• Expected angular, axial and parallel movement during operation.
• Required overall length, shaft separation, flange or brake dimensions and surrounding clearance.
• Operating temperature, contamination, washdown, corrosion or other environmental conditions.
• Quantity, drawing revision and any material, coating, balance or inspection requirement.

Frequently asked engineering questions

Can I select this coupling only from the motor power?

No. Motor power is only a starting point. The selection should use actual torque, service factor, peak load, speed and the driven-machine characteristics.

Which dimension should be confirmed before ordering?

Confirm the shaft interface first, then the overall installation envelope. Bore, key or locking method, hub length, pilot or flange details and available removal clearance all affect whether a listed model will fit.

How much misalignment should be allowed in normal service?

Use the model-specific limit as a maximum capability, not as the target installation condition. Better initial alignment usually reduces cyclic load, heat and wear in both the coupling and connected bearings.

What information is needed for a custom bore or connection?

Provide a dimensioned shaft drawing or at minimum the shaft diameter and tolerance, keyway, engagement length, shoulder or axial-retention details and required hub position.

Should the coupling be inspected after commissioning?

Yes. A short follow-up inspection after the machine has run under real load can reveal fastener settlement, lubricant leakage, unexpected movement or alignment change before these develop into a larger problem.

How should I use the specification blocks on this page?

Treat the listed values as the model reference. Select a candidate from torque and speed, then verify every geometric field that affects your installation before issuing the final order drawing.
