E6NN3K514AB: 14.0 ml/rev, 225 bar, anticlockwise (CCW). Flexible MOQ by model and order value; 1–2 pcs can be considered at a higher unit price.
E6NN3K514AB shares the 14 ml/rev displacement of E4NN3K514AB but is rated at 225 bar in this catalogue and lists class-2A threads. This is not a reason to assume the two pumps interchange: check the port mating specification, shaft and housing before selecting the stronger-rated reference.

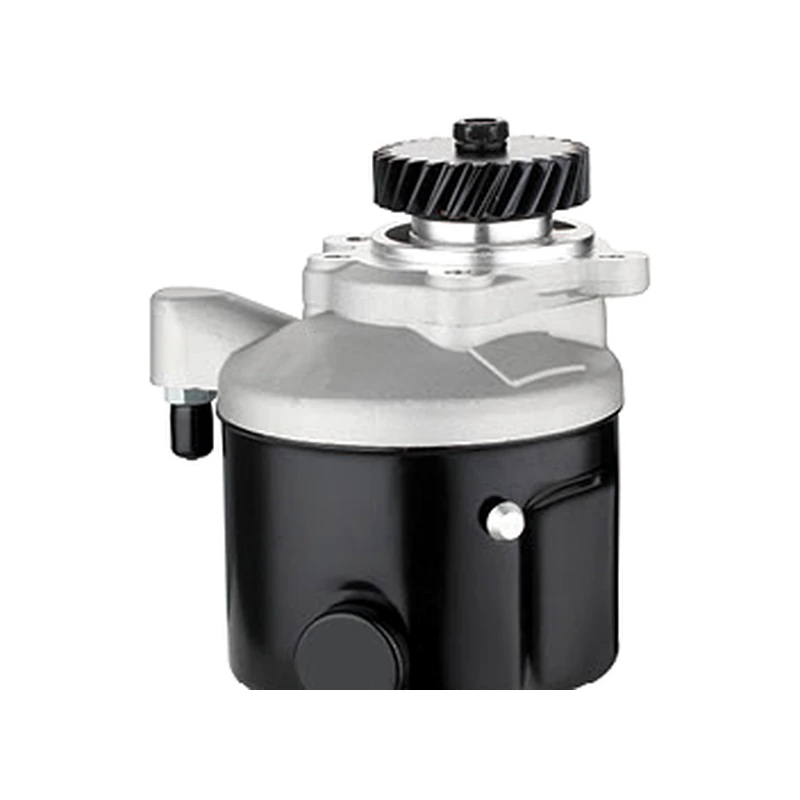

The catalogue associates this assembly with E6NN3K514AB. It is a sourcing reference rather than a controlled installation drawing, so no unlisted dimensions are presumed.
No specific tractor serial ranges are established here for E6NN3K514AB. Use the parts manual and existing hardware to complete the application check.
| Reference / model | E6NN3K514AB |
|---|---|
| Product type | Tractor Hydraulic Gear Pump |
| Original reference numbers | E6NN3K514AB |
| Applicable tractor models | Confirm from original pump / equipment parts list |
| Manufacturer reference | Not provided |
| Nominal displacement | 14.0 ml/rev |
| Maximum pressure | 225 bar |
| Rotational speed | 3000 rpm |
| Controlled flow rate | 17.0 L/min |
| Feed hole / connection | 3/4-16 UNF-2A |
| Discharge hole / connection | 9/16-18 UNF-2A |
| Rotation | anticlockwise (CCW) |
Use the dismantling photographs to place E6NN3K514AB at the same mounting angle as the original. Verify that hoses reach naturally and that no connection has been cross-threaded or over-tightened.
Correct relief protection and uncontaminated oil matter more than the appearance of the replacement housing.
The 14.0 ml/rev figure represents swept volume, not a constant litres-per-minute delivery. For a correct substitute, ask whether the hydraulic equipment was designed around the same shaft-speed band.
Within the comparison set, E4NN3K514AB lists 14.0 ml/rev and 130 bar. That is a useful limit check for the E6NN3K514AB hydraulic request, not permission to alter the tractor’s original pump rating.
Controlled flow is shown as 17.0 L/min for this listing. Its circuit function should be reviewed before specifying a valve or control setting.
The stated speed is 3000 rpm. Before commissioning, verify the engine accessory drive ratio and that normal operating conditions do not exceed this listing.
One of the first installation checks is direction: this reference is CCW. Also check that the pump body can be seated without stressing the hoses.
The feed port is shown as 3/4-16 UNF-2A; the discharge port as 9/16-18 UNF-2A. Confirm the fitting seat and whether the opening is measured as a bore or a thread.
Drive rotationCCW
Displacement14.0 ml/rev
Connection check3/4-16 UNF-2A / 9/16-18 UNF-2A
Ford E4NN3K514AB can serve as a useful control example while sorting this catalogue family. Its 130 bar listing should not be transferred to E6NN3K514AB, for which the recorded value is 225 bar.
Do not infer a warranty of interchangeability from an OEM number appearing in a search list.
Include the part E6NN3K514AB, the delivery destination and any customization needs. Attach the removed pump’s outline dimensions rather than depending on an estimated scale from the catalogue image.
Please highlight any change from the original connection standard to avoid quotation assumptions.
It is better to provide the original pump marking and photos, especially when a tractor has had earlier repairs or modifications.
Not necessarily; controlled-flow information is separate from geometric displacement and actual delivery.
Order quantities are set according to pump type and total order value. A small order of 1–2 pieces can be considered at a higher unit price; new customers may request 1–5 samples when the item is suitable. Mixed-model orders are available, normally with a combined order value of approximately USD 1,500.
Typical production schedules are 10–25 working days for standard items, 20–45 working days for customized components, and 45–120 working days for project equipment. Usual delivery terms are EXW, FOB, CIF and DAP. FCA, CFR, CPT, CIP and DDP can be discussed for specific shipments. Confirm the final schedule and terms with the quotation.
Third-party brand names and trademarks are used only for product identification and cross-reference. They remain the property of their respective owners; such references do not imply affiliation, sponsorship, authorization or endorsement.
Send the old pump reference, quantity, photos and interface measurements to our sales team.
