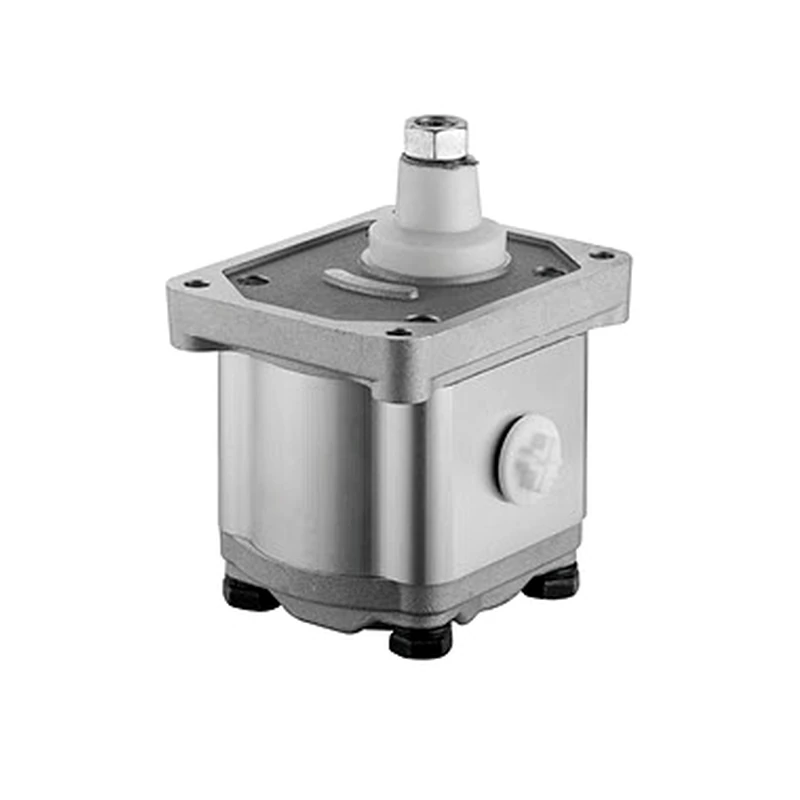

Fiat 480SH: 13.0 ml/rev, 160 bar, anticlockwise (CCW). Flexible MOQ by model and order value; 1–2 pcs can be considered at a higher unit price.
Fiat 480SH matches the 640SH displacement, speed band and thread sizes but the catalogue marks it anticlockwise. Check the original shaft as viewed from the same drive end before replacing it. The threaded feed and discharge specification also differs from the BH and 5129xxx product groups.
If the existing machine’s service documentation lists Fiat 480SH, check the full cross-reference FIAT. The serial range and original pump details still determine the final match.
No specific tractor serial ranges are established here for Fiat 480SH. Use the parts manual and existing hardware to complete the application check.
| Reference / model | Fiat 480SH |
|---|---|
| Product type | Tractor Hydraulic Gear Pump |
| Original reference numbers | FIAT |
| Applicable tractor models | Confirm from original pump / equipment parts list |
| Manufacturer reference | FIAT 480SH |
| Nominal displacement | 13.0 ml/rev |
| Maximum pressure | 160 bar |
| Rotational speed | 500–3000 rpm |
| Controlled flow rate | 6.0 L/min |
| Feed hole / connection | 5/8-18 UNF |
| Discharge hole / connection | M14×1.5 |
| Rotation | anticlockwise (CCW) |
The 13.0 ml/rev figure represents swept volume, not a constant litres-per-minute delivery. For a correct substitute, ask whether the hydraulic equipment was designed around the same shaft-speed band.
Within the comparison set, Fiat 640SH lists 13.0 ml/rev and 160 bar. That is a useful limit check for the Fiat 480SH hydraulic request, not permission to alter the tractor’s original pump rating.
The flow-control annotation reads 6.0 L/min. Keep it with the original pump record rather than treating it as a measured output at 500–3000 rpm.
The stated speed is 500–3000 rpm. Before commissioning, verify the engine accessory drive ratio and that normal operating conditions do not exceed this listing.
Fiat Fiat 640SH appears in the same broad product range. Compared with its 13.0 ml/rev displacement, the 13.0 ml/rev for Fiat 480SH is not enough to establish replacement suitability.
A supplier can review alternatives after the damaged part is identified by its original drawing or measurements.
Checking rotation for Fiat 480SH requires a known viewpoint. Record whether the shaft was observed from the coupling face, as the listing gives counterclockwise.
The feed port is shown as 5/8-18 UNF; the discharge port as M14×1.5. Confirm the fitting seat and whether the opening is measured as a bore or a thread.
Drive rotationCCW
Displacement13.0 ml/rev
Connection check5/8-18 UNF / M14×1.5
Before the first start, rotate the drive in the correct direction by the approved maintenance procedure and verify Fiat 480SH receives oil. Run unloaded initially and monitor for abnormal sound or leakage.
Correct relief protection and uncontaminated oil matter more than the appearance of the replacement housing.
If replacing a failed Fiat unit, share its stamped identifier, gearbox or engine-side drive photo and port measurements. The listed 160 bar pressure is not a substitute for the machine’s actual relief setting.
Please highlight any change from the original connection standard to avoid quotation assumptions.
It is better to provide the original pump marking and photos, especially when a tractor has had earlier repairs or modifications.
It describes displacement per revolution, not a guaranteed service flow; compare actual shaft rpm and pump efficiency.
Order quantities are set according to pump type and total order value. A small order of 1–2 pieces can be considered at a higher unit price; new customers may request 1–5 samples when the item is suitable. Mixed-model orders are available, normally with a combined order value of approximately USD 1,500.
Typical production schedules are 10–25 working days for standard items, 20–45 working days for customized components, and 45–120 working days for project equipment. Usual delivery terms are EXW, FOB, CIF and DAP. FCA, CFR, CPT, CIP and DDP can be discussed for specific shipments. Confirm the final schedule and terms with the quotation.
Third-party brand names and trademarks are used only for product identification and cross-reference. They remain the property of their respective owners; such references do not imply affiliation, sponsorship, authorization or endorsement.
Send the old pump reference, quantity, photos and interface measurements to our sales team.
