Round Baler Gearbox

Round Baler Gearbox EP250-YJ for Round Baler and Harvester

Round Baler Gearbox EP250-YJ Dimensions

Round Baler Gearbox EP250-YJ Dimensions

i Uygun Rpm input Rpm output KW(Nom) KW(Max) Toothing
dev/dak dev/dak hp hp
Decelerate 1.92:1 Round baler,
harvester, etc		 540 282 80 1800 Gleason Helical
Teeth
Remark: If you have any special requirements, feel free to let me know; we also accept customization.

Round Baler Gearbox EP9.0 for Round Baler and Harvester

Round Baler Gearbox EP9.0 Dimensions Round Baler Gearbox EP9.0 Dimensions

i Uygun Rpm input Rpm output KW(Nom) KW(Max) Toothing
dev/dak dev/dak hp hp
Decelerate 1.92:1 Round baler,
harvester, etc		 540 282 120 3000 Gleason Helical
Teeth
Remark: If you have any special requirements, feel free to let me know; we also accept custom.

Round Baler Gearbox EP9.0-HL01 for Round Baler and Harvester

Round Baler Gearbox EP9.0-HL01 Dimensions Round Baler Gearbox EP9.0-HL01 Dimensions

i Uygun Rpm input Rpm output KW(Nom) KW(Max) Toothing
dev/dak dev/dak hp hp
Decelerate 1.92:1 Round baler,
harvester, etc		 540 282 120 3000 Gleason Helical
Teeth
Remark: If you have any special requirements, feel free to let me know; we also accept customs.

Round Baler Gearbox EP9.35 for Round Baler and Harvester

Round Baler Gearbox EP9.35 Dimensions Round Baler Gearbox EP9.35 Dimensions

i Uygun Rpm input Rpm output KW(Nom) KW(Max) Toothing
dev/dak dev/dak hp hp
Decelerate 1.92:1 Round baler,
harvester, etc		 540 282 120 3000 Gleason Helical
Teeth
Remark: If you have any special requirements, feel free to let me know; we also accept customs.

Round Baler Gearbox EP246 for Round Baler and Harvester

Round Baler Gearbox EP246 Double Output Dimensions

Round Baler Gearbox EP246 Single Output Dimensions

i Uygun Rpm input Rpm output KW(Nom) Output torque Toothing
dev/dak dev/dak hp N.m
Decelerate 1.92:1 Round baler, harvester, etc 540 282 100 2000 Gleason Helical
Teeth
Remark: If you have any special requirements, feel free to let me know; we also accept customs.

Round Baler Gearbox EP2100-T3 for Round Baler and Harvester

Round Baler Gearbox EP2100-T3 Dimensions

Round Baler Gearbox EP2100-T3 Shaft Dimensions

i Uygun Rpm input Rpm output KW(Nom) Output torque Toothing
dev/dak dev/dak hp N.m
Decelerate 2.1 :1 Round baler, harvester, etc 540 257 80 100 Gleason Helical
Teeth
Remark: If you have any special requirements, feel free to let me know; we also accept customs.

Round Baler Gearbox – Replacement of Comer Brand

Code T-304A 1:3

Round Baler Gearbox T-304A Specifications Round Baler Gearbox T-304A Specifications

Description
Round Baler Gearbox – Replacement of Comer Gearbox T-304A 1:3
Ürün Detayları
  • All gearboxes are supplied without oil.
  • The first oil change is recommended after 50 operating hours.
  • Further oil changes approx. Every 500-800 hours and/or twice per year.
Application
  • Various (agricultural) applications
  • Mowers
  • Shakers
Consists of
  • Gearbox
  • Without oil
Technical information
  • If you have any questions regarding performance at different speeds, please do not hesitate to contact us
  • When using it for the first time, replace the oil after 50 operating hours
Max. output torque
94.5 daNm
Contains oil
No
Max. oil capacity
1.1 l
Max. oil change interval
500 h
Oil SAE viscosity grade
80W-90
Housing material
Cast iron GG25
Ağırlık
19 kg
Gear arrangement Increasing
25 – 26 – 27 – 28
Gear arrangement Reducing
5 – 6
Input power kW / HP Increasing
36.8 / 50 kW/HP
Input shaft Increasing
X – Y
Input shaft Reducing
Z
Input power KW / HP Reducing
18.4 / 25 kW/HP
Output Torque DaNm Increasing
21 daNm
Ratio Increasing
1: 3
Ratio Reducing
3: 1
Shaft X
1 3/8″ (6) (A)
Shaft Y
1 3/8″ (6) (A)
Shaft Z
1 3/8″ Z6

Code TV-290H

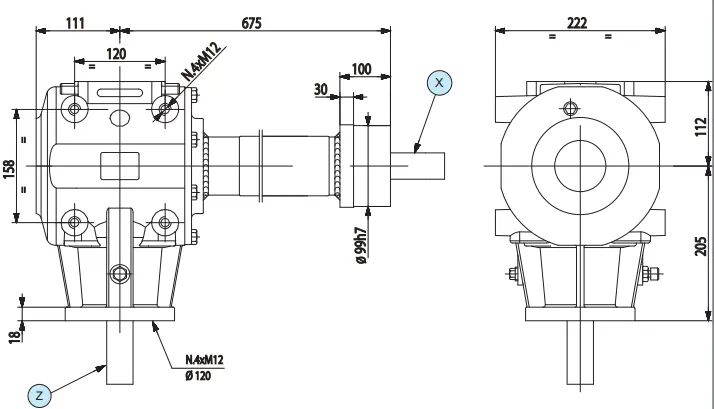

Round Baler Gearbox T290H

i 2.07
N1[rpm] 540
P1[kW] 51.5
M2[Nm] 1828
Shaft X 39*40
Shaft Z 1” 3/8 Z6
Input Z

Code T-290HD

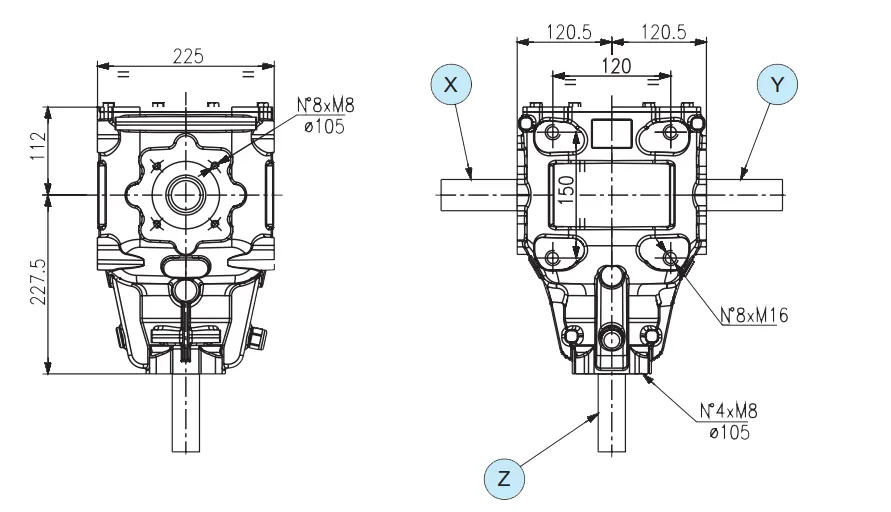

Round Baler Gearbox Specification T290HD

i 1.63/3.0
N1[rpm] 540/1000
P1[kW] 78/58
M2[Nm] 2180/1694
Shaft X 40*2*18
Shaft Y 40*2*18
Shaft Z 1” 3/8 Z6
Input Z

Code T-292E

Round Baler Gearbox Detail T292E

i 1.86
N1[rpm] 540
P1[kW] 47.7
M2[Nm] –
Shaft X
  1” 3/8 Z6
Shaft Y 1” 3/8 Z6
Shaft Z L200 Φ55
Input X
