EP-RC61T Rotary Cutter Gearbox
 |  |
| ITEM | RC61T Rotary Cutter Gearbox |
| Ratio | 1:1/1:1.21/1:1.46/1:1.93 |
| Teeth | 16/16 17/14 19/13 27/14 |
| Module | 7.0/7.0/7.0/5.5 |
| Power（HP） | 60 |
| Rated Input | 540rpm |
| Input/Output description | 1 3/8 Z6 1 3/8 Z6 Spline Shaft |
| Weight（N.W） | 33.5Kg |
Rotary Cutter Gearboxes – Replacement of Omni Brand

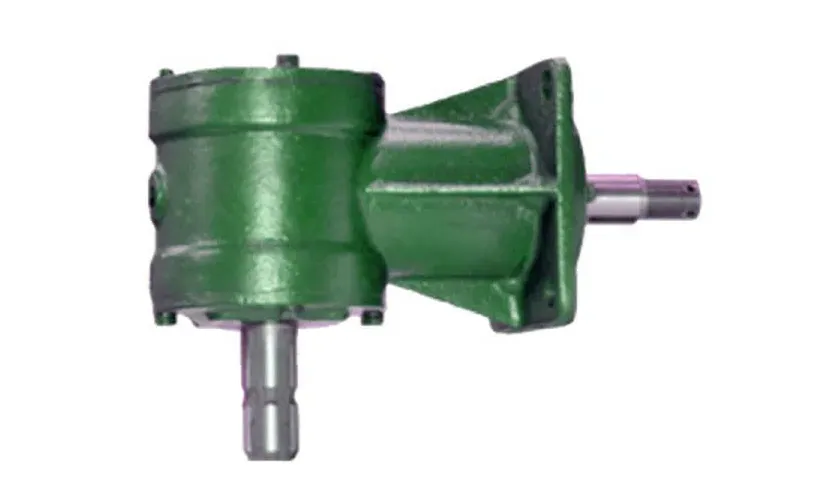

RC-20 Gearbox
 | |
| Model: | EPT-RC20 Rotary Cutter Gearbox |
| Power: | 15 – 18 hp 11 – 21 kW |
| Torque: | 1,750 – 3,267 lb.-in. (198 – 369 Nm.) |
| Ratios: | 1:1.25, 1:2.83 |
| Gear Type: | Bevel |
| Seal Type: | Triple Lip Spring Loaded |
| Bearing Type: | Deep Groove Ball |
| Oil Capacity: | 16 oz. (0.47 L) |
| Weight: | 34 lbs. (15.4 kg.) |
| Applications: | Finishing Mowers Rotary Cutters Rotary Slashers |
RC-27 Gearbox
 | |
| Model: | EPT-RC27 Rotary Cutter Gearbox |
| Power: | 23 – 53 hp 17 – 40 kW |
| Torque | 2,683 – 6,183 lb.-in. (303 – 698 Nm.) |
| Ratios | 1:2.5, 1:2.83 |
| Gear Type | Bevel |
| Seal Type | Double Lip Spring Loaded |
| Oil Capacity | 20 oz. (0.59 L) |
| Weight | 47 lbs. (21.3 kg.) |
| Applications: | Finishing Mowers Rotary Cutters Rotary Slashers |

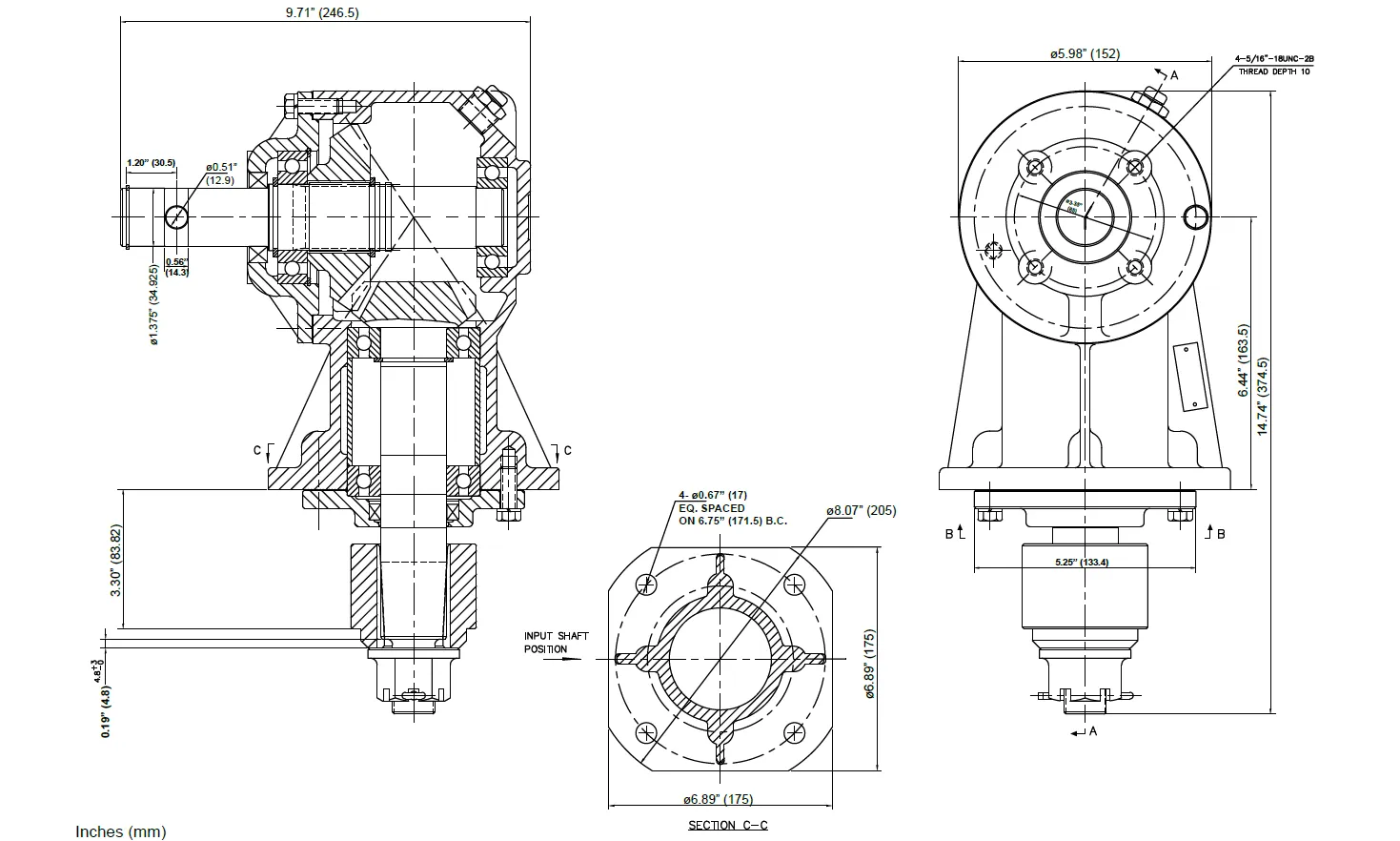

RC-30 Gearbox
| Model | EP-RC30 Series Rotary Cutter Gearboxes | Horsepower | 40HP |
| Torque | 2,800 – 4,667 lb.-in. | Input RPM | 540/1000 |
| (316 – 527 Nm.) | Output RPM | 793/1470 | |
| Ratios | 1:1.47, 1:1.71, 1:1.93 | Input Shaft Diameter | 1-3/8” – 6 spline |
| Gear Type | Bevel | Shear Bolt Hole | 1/2″ |
| Seal Type | Triple Lip Spring Loaded | Output Shaft Diameter | 1.47″ – 12 tapered spline |
| Bearing Type | Deep Groove Ball | Mount | 4-bolt mounting |
| Oil Capacity | 23 oz. | Bolt Pattern | 4-3/4″ |
| (0.68 L) | Rotation | CCW input gives CW output | |
| Weight | 51 lbs. | Size | 10-1/4″ x 7″ x 7″ |
| (23.1 kg.) | Pilot | 5-1/4″ dia. |
RC-33 Gearbox
 | |
| Horsepower: | 65 HP |
| Applications: | For 4 ft., 5 ft., and 6 ft. rotary cutters |
| Outside rotation: | Clockwise or counterclockwise with no modifications |
| Housing material: | Ductile iron |
| Smooth input shaft: | 1-3/8 in. |
| Gear ratio: | 1:1.47 |
| Gear type: | Bevel gear |
| Output shaft: | 1.57″ 12 Spline |
| Weight: | 50.6 lbs |
| Mounting holes: | 4-3/4″ on center adjacent hole to adjacent hole and 6-3/4″ on diagonal |

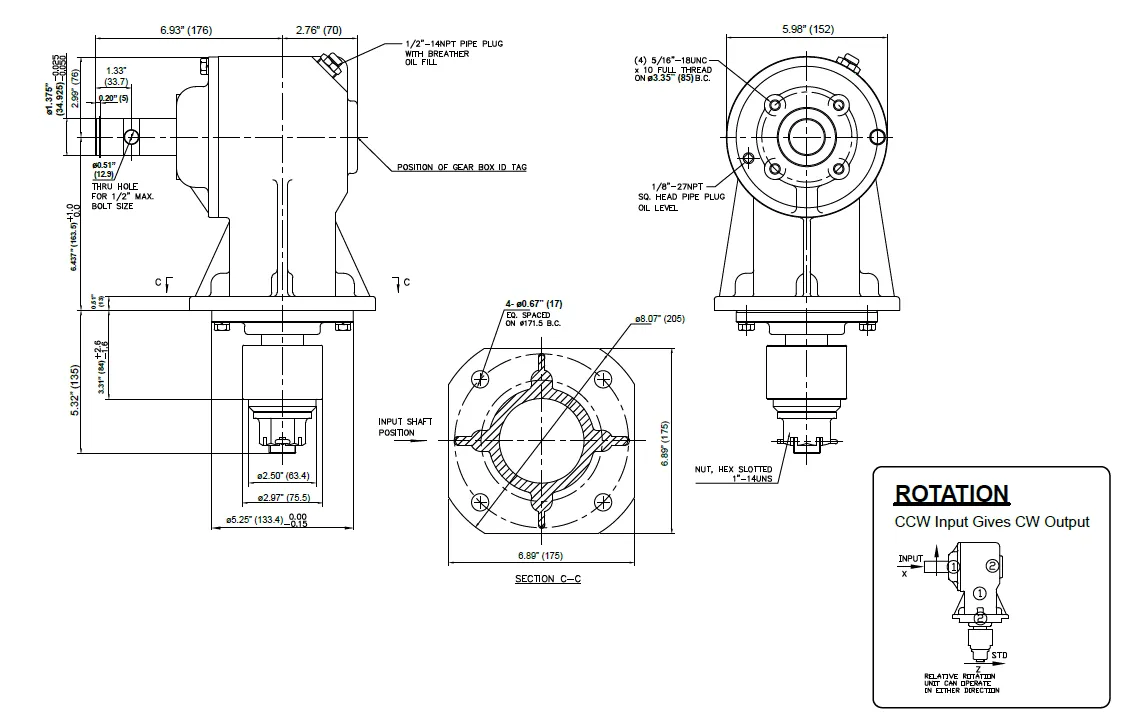

RC-51 Gearbox
 | |
| Model | EPT-RC51 Rotary Cutter Gearbox |
| Torque | 2,800 – 4,667 lb.-in. (316 – 527 Nm.) |
| Ratios | 1:1.47, 1:1.71, 1:1.93 |
| Gear Type | Bevel |
| Seal Type | Triple Lip Spring Loaded |
| Bearing Type | Tapered Roller, Deep Groove Ball |
| Oil Capacity | 27 oz. (0.80 L) |
| Weight | 56 lbs. (25.4 kg.) |

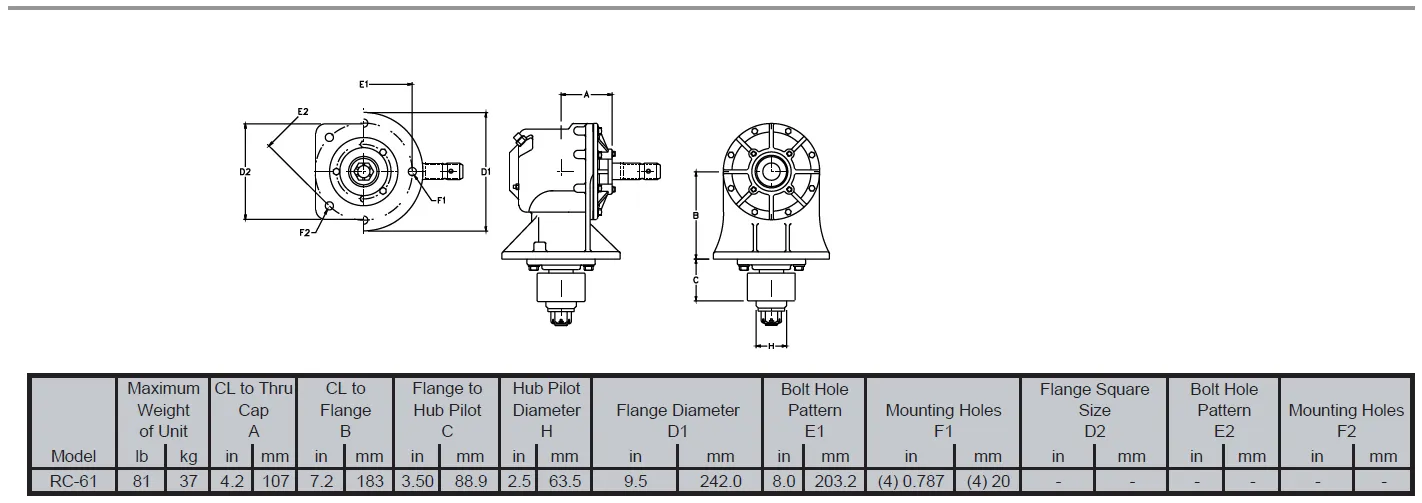

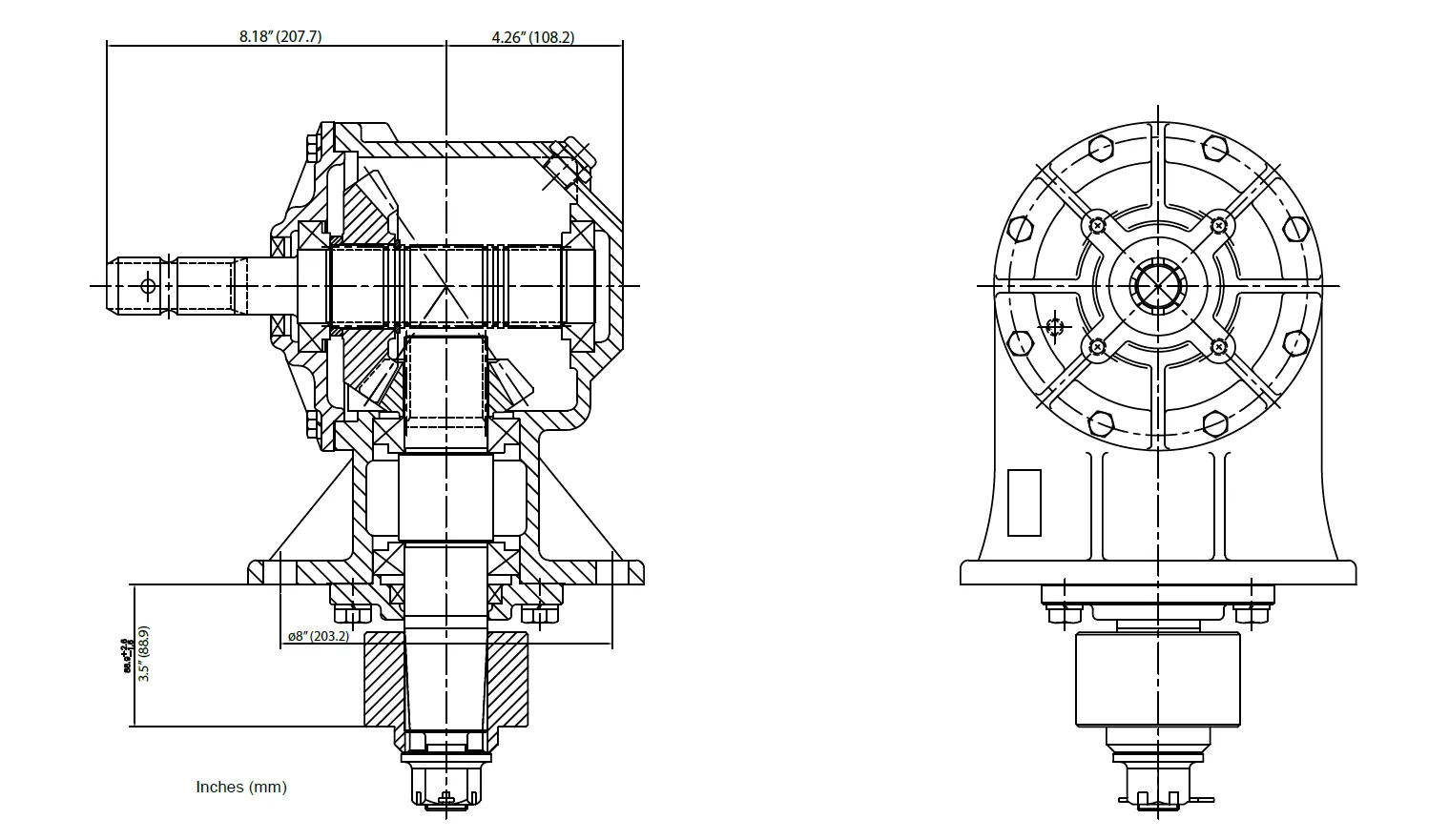

RC-61 Gearbox
  | |
| Model | EPT-RC61 Rotary Cutter Gearbox |
| Torque | 4,803 – 9,683 lb.-in. (461 – 1,903 Nm.) |
| Ratios | 1.21:1, 1:1, 1:1.21, 1:1.46, 1:1.93 |
| Gear Type | Bevel |
| Seal Type | Tapered Roller |
| Oil Capacity | 32 oz. (0.95 L) |
| Weight | 81 lbs. (36.7 kg.) |

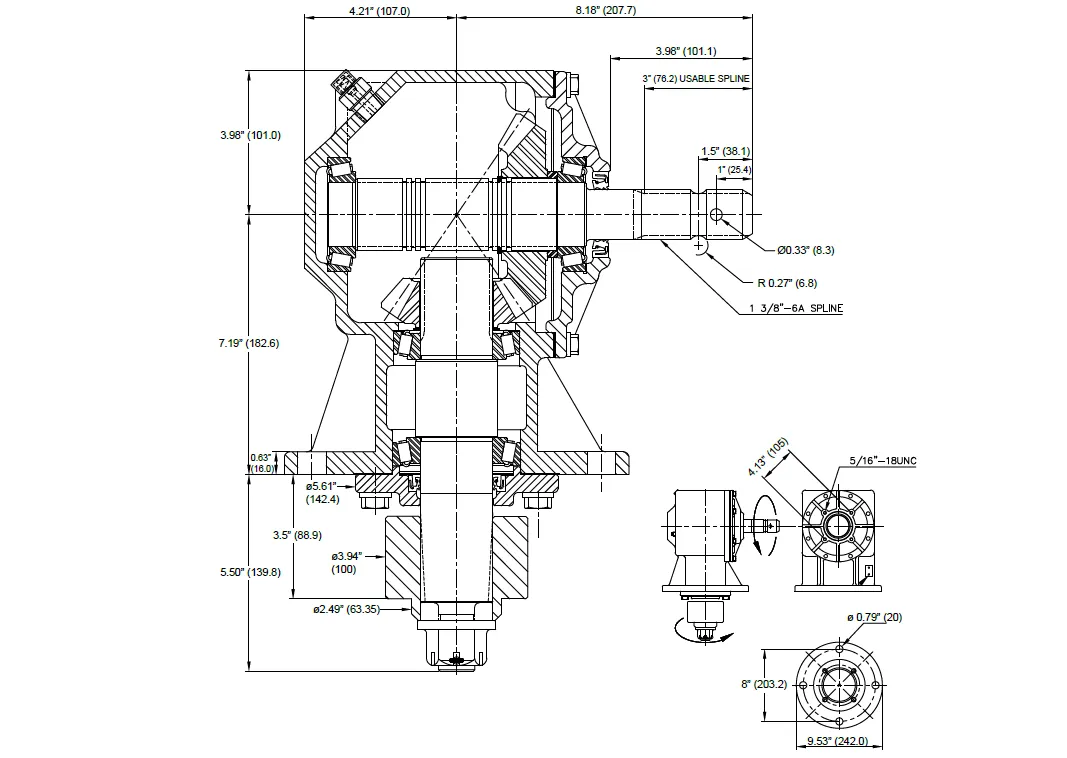

RC-71 Gearbox
 | |
| Model | EPT-RC71 Rotary Cutter Gearbox |
| Torque | 4,083 – 9,683 lb.-in. (461 – 1,093 Nm.) |
| Ratios | 1.21:1, 1:1, 1:1.21, 1:1.46, 1:1.93 |
| Gear Type | Bevel |
| Seal Type | Triple Lip Spring Loaded |
| Bearing Type | Tapered Roller |
| Oil Capacity | 35 oz. (1.04 L) |
| Weight | 83 lbs. (37.7 kg.) |
RC-81 Gearbox
 | |
| Model | EPT-RC-81 Rotary Cutter Gearbox |
| Torque | 5,483 – 12,133 lb.-in. (619 – 1,370 Nm.) |
| Ratios | 1.21:1, 1:1, 1:1.21, 1:1.46, 1:1.92 |
| Gear Type | Bevel |
| Seal Type | Triple Lip Spring Loaded |
| Bearing Type | Tapered Roller |
| Oil Capacity | 62 oz. (1.8 L) |
| Weight | 98 lbs. (44.5 kg.) |
| Use | Part Number | Input Parameters | Output Parameters | |||||
| Ratio | Rotational Speed | Power | Horse Power | Torque | Torque | Rotational Speed | ||
| R.P.M | KW | HP-CV | N.M | N.M | R.P.M | |||
| Rotary Cutter | RC81-01 | 1:1.92 | 540 | 74 | 100 | 1308 | 680 | 1038 |
| RC81-02 | 1:1.46 | 540 | 74 | 100 | 1308 | 680 | 788 | |

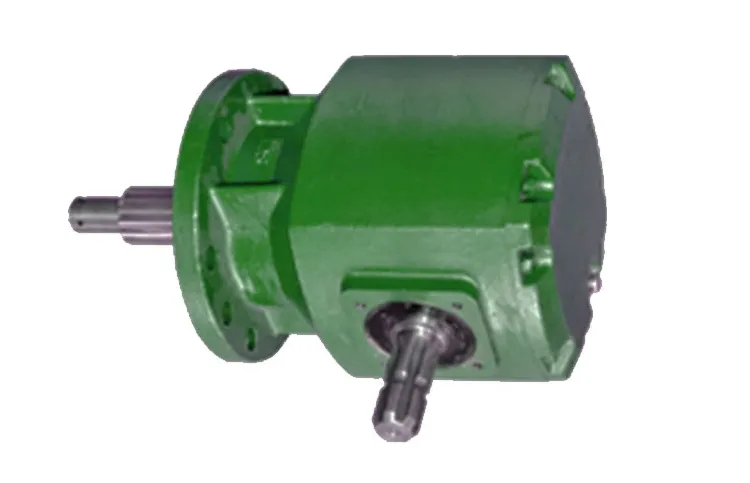

RC-100 Gearbox
 | |
| Model: | EPT-RC100 Rotary Cutter Gearbox |
| Horsepower: | 50-150 HP |
| Input Shaft: | 1 3/8 in 6 A Spline |
| Output Shaft: | 15 Spline |
| Ratio: | 1:1.46 |
| Rotation: | Reverse |
| Applications | Finishing Mowers Rotary Cutters Rotary Slashers |

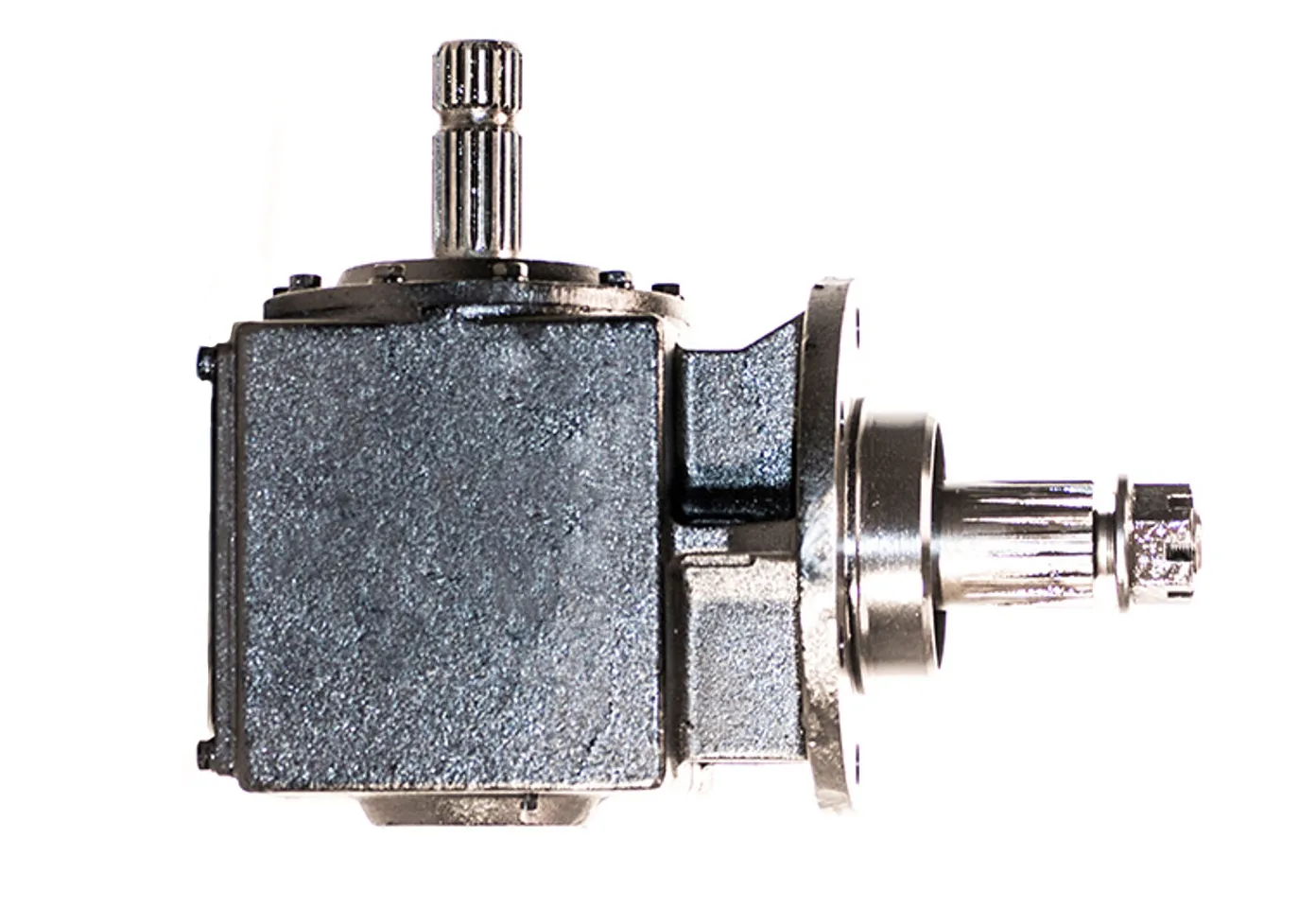

RC-130 Gearbox
 | |
| Model: | EPT-RC130 Rotary Cutter Gearbox |
| Power: | 47 – 104 hp 35 – 78 kW |
| Applications: | Finishing Mowers Rotary Cutters Rotary Slashers |
| Torque: | 7,117 – 19,950 lb.-in. (803 – 2,252 Nm.) |
| Ratios: | 1.21:1, 1:1, 1:1.21, 1:1.46, 1:1.92 |
| Gear Type: | Bevel |
| Seal Type: | Triple Lip Spring Loaded |
| Bearing Type: | Tapered Roller |
| Oil Capacity: | 60 oz. (1.8 L) |
| Weight: | 109 lbs. (49.9 kg.) |

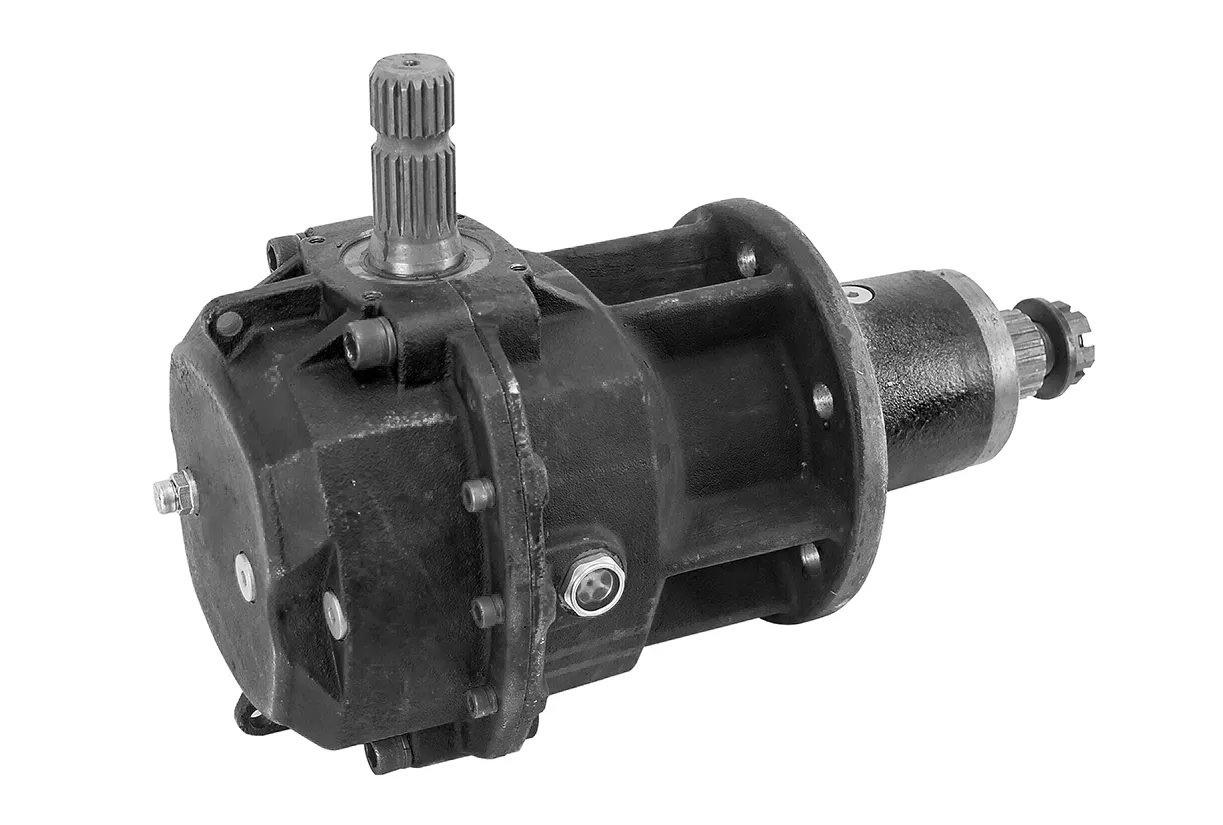

RC-145 Gearbox
 | |
| Model: | EPT-RC-145 Rotary Cutter Gearbox |
| Rotation: | CW input gives CW output |
| Gear Ratio: | 1:1.833 |
| Input RPM: | 540/1000 rmp |
| Output RPM: | 989/1833 rmp |
| Input HP: | 61-171 hp |
| Max Torque: | 7117-19950 in.lbs. |
| Input Shaft: | 1-3/4″ dia. x 3-7/8″ long 20T spline |
| Output Shaft: | 2-1/4″ dia. 18 tooth tapered spline w/threaded end. 3-1/4″ total length |
| Mount: | 6 holes on 8″ dia. B.C. |
| Pilot: | 5-5/8″ dia. |
| Centerline Distance: | 8.9″ (input shaft to the mounting surface) |
| Size: | 14-1/2″ x 11″ x 11″ |
| Actual Weight: | 120 lbs. |
RC-200 Gearbox
 | |
| Model: | EPT-RC200 Rotary Cutter Gearbox |
| Torque | 21,000 – 28,350 lb.-in. (2,371 – 3,201 Nm.) |
| Ratios | 1.21:1, 1:1, 1:1.21, 1:1.46 |
| Gear Type | Bevel |
| Seal Type | Triple Lip Spring Loaded |
| Bearing Type | Tapered Roller |
| Oil Capacity | 174 oz. (5.2 L) |
| Weight | 220 lbs. (99.8 kg.) |
| Applications: | Finishing Mowers Rotary Cutters Rotary Slashers |
