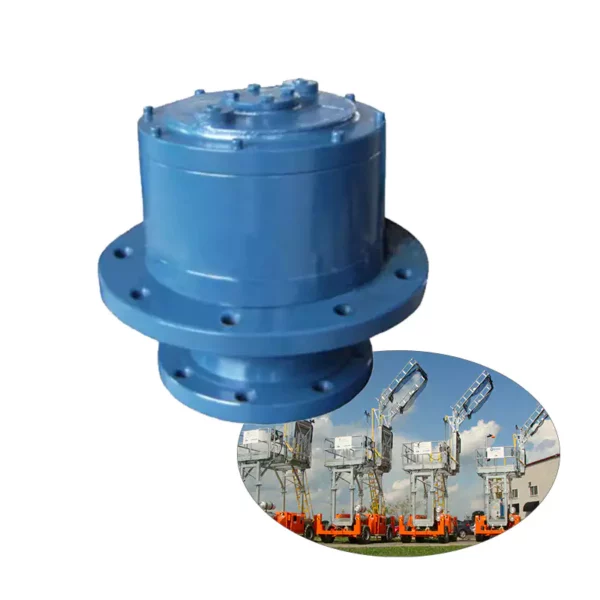

Wheel Drive Planetary Gearbox Reducer for Access Plateform

The Wheel Drive Planetary Gearbox Reducer is designed for access platforms, providing efficient power transmission and torque reduction. This gearbox ensures smooth operation and enhanced stability for aerial work applications. Its compact design allows for easy integration into various access platform models, making it an essential component for safe and effective lifting operations in construction and maintenance tasks.

SKU: 90f4459abce3 Categories: , Tags: ,
Get a Quote

Parameter

SpecificationDetails
Output torque range1000-60000 N.m
Gear ratiosi=5.3-142
SupportThe gearbox has rotating housing flanges to fit wheel
Applicable motorsAxial piston hydraulic motors, hydraulic orbit motors or others
Hydraulic motor optionsPressure relief valve, overcenter valve
BearingRobust bearing system absorbing the forces exerted by the ring gear
BrakeHydraulically released parking brake
OthersEP600L Series wheel drives with manual disconnect application
Load capacityLarge radial and axial load capacity due to the use of strong tapered roller bearings
Oil seal protectionReliable oil seal protection, designed according to our field experience
Mounting flangesUniversal and SAE input direct mounting flanges
Direct mountingThe units are designed for their direct mounting into the wheel rims
InterchangeabilityTechnical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably
Track drives TypeMax. torque N.mRange of ratios (i)Max. Input speed (rpm)Braking torque (N.m)
EP601 L1A17505.771000450-600
EP603 L2A400019-23-32-403000210
EP603 L2B400019-23-32-403000210
EP602 L2500012.4-25.83000-
EP605 L2700022-27-30-42-533000220-310
EP606 L2, L31200030-35-43-68-793000300-800
EP607 L2, L31700033-75-1083000300-600
EP609 L2, L32300033-1423000300-600
EP610 L2, L33000020-1113000300-800
EP611 L2, L33600041-473000300-800
EP613 L3450001083000300-800
EP615 L3600001083000300-1000

Characteristics and Benefits of Wheel Drive Planetary Gearbox Reducer for Access Platform

The Wheel Drive Planetary Gearbox Reducer for Access Platforms is designed to enhance performance and reliability in various applications. Here are some key characteristics and benefits:

  • High Torque Output: The planetary design allows for higher torque output, making it ideal for heavy-duty operations.
  • Compact Size: Its compact structure ensures it fits easily into limited spaces without compromising on power.
  • Efficiency: The gearbox operates with minimal power loss, leading to improved energy efficiency and reduced operational costs.
  • Durability: Built with high-quality materials, it offers excellent resistance to wear and tear, ensuring long service life.
  • Easy Maintenance: The design facilitates straightforward maintenance procedures, reducing downtime and enhancing productivity.
  • Smooth Operation: The gearbox provides smooth and precise control of movement, essential for operational safety and efficiency.
  • Versatile Applications: Suitable for various access platforms, it can be adapted for different equipment and operational needs.

Wheel Drive Planetary Gearbox

How to Choose a Wheel Drive Planetary Gearbox Reducer for Access Platform

When selecting a Wheel Drive Planetary Gearbox Reducer for access platforms, consider the following factors:

  • Load Type: Assess the maximum load your platform will handle. Different gearboxes are optimized for different load types, such as static or dynamic loads.
  • Operating Environment: Evaluate the conditions in which the gearbox will operate, including temperature, humidity, and exposure to dust or chemicals, to ensure durability and reliability.
  • Installation Method: Choose between flange connections or shaft outputs based on your platform's design requirements for easier integration and maintenance.

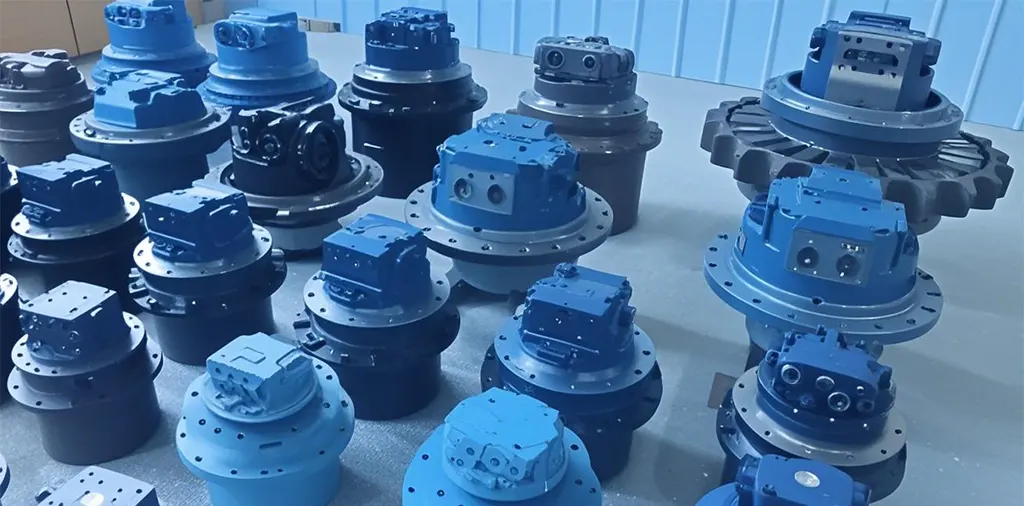

Wheel Drive Gearbox

Maintenance of Wheel Drive Planetary Gearbox Reducer for Access Platform

To ensure optimal performance and longevity of the Wheel Drive Planetary Gearbox Reducer, follow these maintenance steps:

  • Regular Inspections: Check for any signs of wear or damage, especially on gears and bearings.
  • Lubrication: Ensure the gearbox is properly lubricated with the recommended oil type; replace oil according to the manufacturer's schedule.
  • Temperature Monitoring: Monitor operating temperatures to prevent overheating, which can lead to component failure.
  • Alignment Checks: Verify that the gearbox is correctly aligned with other machinery to reduce strain.
  • Cleaning: Keep the exterior clean and free from debris to prevent contamination.

Wheel Drive Planetary Gearbox Manufacturer

RP Techniek is the Australian-Dutch sales agent for Ever-power Group and is one of the top ten suppliers in the Netherlands.

Our Wheel Drive Planetary Gearbox Reducer for Access Platforms offers customized services tailored to client specifications, allowing for tailored gear ratios and mounting options. We pride ourselves on high-quality manufacturing, employing precision machining techniques to ensure low tolerances and extended lifespan. Our technical support includes selection guidance and after-sales service, helping to reduce the complexity of drive systems while enhancing overall equipment performance and reliability.

We encourage all customers to customize and purchase our products to experience the benefits of our innovative solutions.

Wheel Drive Planetary Gearbox
