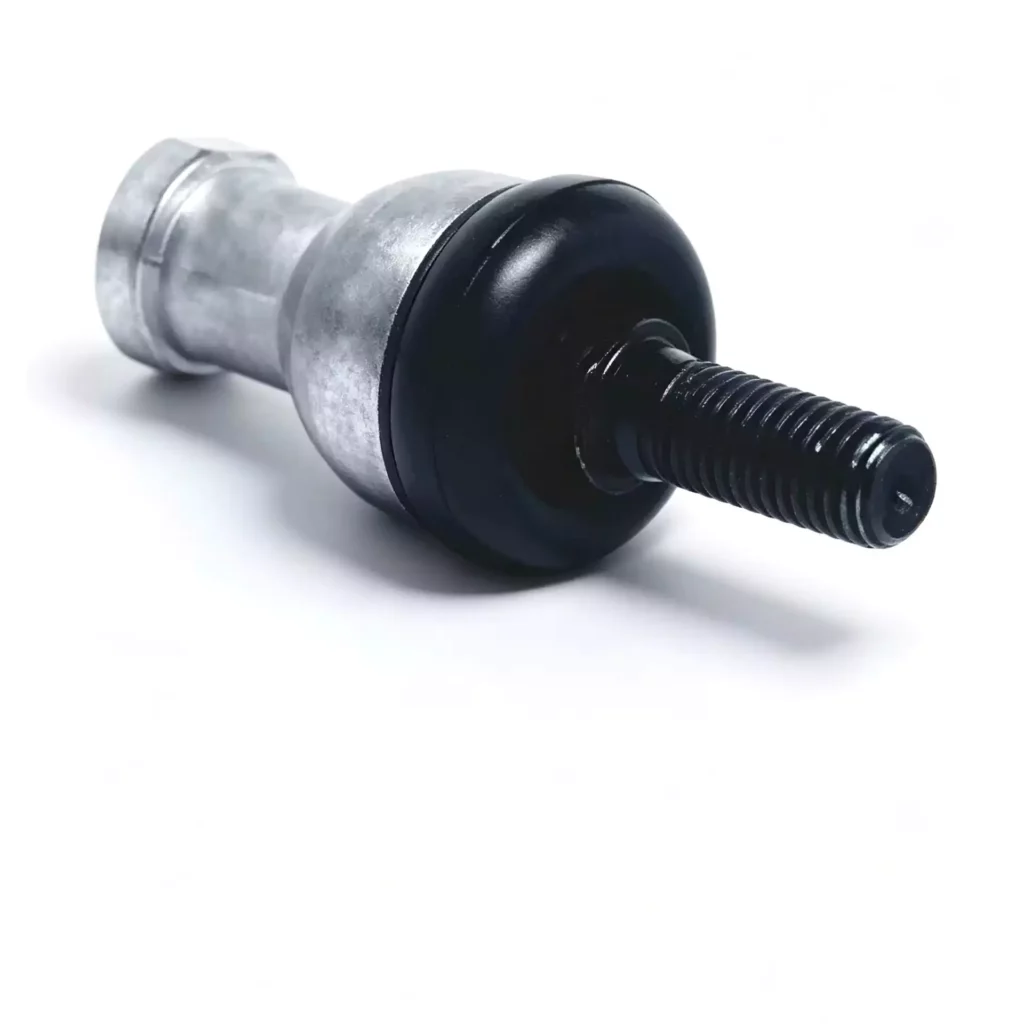

SQZ RS is a straight ball joint rather than a conventional eye-style rod end. A threaded stud passes through the ball-joint housing, and a rubber dust seal protects the moving interface. The catalogue covers M5×0.8 through M22×1.5 thread sizes, with both left- and right-hand thread arrangements available.
Key Features
Technical Drawing
Technical Specifications
| Model | Nominal d (mm) | Thread | Reference L (mm) | Load Rating (kN) | Weight (g) |
|---|---|---|---|---|---|
| SQZ5RS | 5 | M5x0.8 | 46 | 2.8 | 25 |
| SQZ6RS | 6 | M6x1.0 | 55.2 | 3.7 | 41 |
| SQZ8RS | 8 | M8x1.25 | 65 | 5.8 | 75 |
| SQZ10RS | 10 | M10x1.25 | 74.5 | 8.4 | 120 |
| SQZ10RS-1 | 10 | M10x1.5 | 80.5 | 8.4 | 120 |
| SQZ12RS | 12 | M12x1.25 | 84 | 11 | 180 |
| SQZ12RS-1 | 12 | M12x1.75 | 91 | 11 | 180 |
| SQZ14RS | 14 | M14x1.5 | 103 | 15 | 270 |
| SQZ14RS-1 | 14 | M14x2.0 | 109 | 15 | 270 |
| SQZ16RS | 16 | M16x1.5 | 112 | 15 | 360 |
| SQZ16RS-1 | 16 | M16x2.0 | 118 | 15 | 360 |
| SQZ18RS | 18 | M18x1.5 | 130.5 | 19 | 540 |
| SQZ20RS | 20 | M20x1.5 | 133 | 19 | 570 |
| SQZ22RS | 22 | M22x1.5 | 145 | 23 | 750 |
Typical Applications
Selection Guide
Here, geometry often decides the model before load does. Compare the full straight-joint drawing with the available linkage length, stud direction and wrench space. Then check the catalogue load rating.
Installation & Maintenance
Inspect the rubber seal whenever the linkage is serviced; a torn boot allows grit directly into a compact moving joint. Keep the tapered or threaded interfaces clean and do not hammer through the ball center.
Related Bearings
SQ RS uses the alternate right-angle rod-end ball-joint layout; POS provides a conventional greasable male-thread rod end; NOS is a maintenance-free eye-type male-thread rod end.
