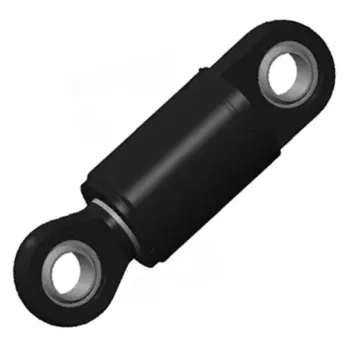

| Shield Cylinder | |
| Application: | Stabilizing the cutter head/preventing jamming due to convergence |
| Specification: | Bore diameter: 130mm-360mm Rod diameter: 80mm-220mm Stroke: 100mm-420mm |
| Pressure: | up to 25MPa Special requirements up to 35MPa |
The shield cylinder for open tunnel boring machines (TBM) is a vital element in tunneling projects, offering crucial support to the shield across diverse geological conditions such as sand, clay, and silt. It proves particularly advantageous in unstable ground scenarios or areas where water ingress poses a threat. Constructed from high-strength steel, these cylinders are designed to endure the substantial pressures and forces encountered during tunneling activities. Additionally, they come equipped with various safety mechanisms, including pressure relief valves and emergency stop switches, which are essential for ensuring the safety of both the TBM and its operators.
Open TBM shield cylinders present numerous advantages for tunneling operations. They facilitate support for the shield in soft ground and aid in preventing jamming. These cylinders are suitable for unstable ground conditions and areas with potential water ingress. Made from high-strength steel, they are designed to endure the extreme pressures and forces faced during tunneling activities. Furthermore, they are equipped with a variety of safety features to ensure the safety of operators and the machine itself.
At Techniek BV, our shield cylinders are crafted with the end-user in mind. We recognize the challenges encountered during tunneling and have engineered our cylinders to meet and surpass customer expectations. Our products emphasize durability and performance while also providing solutions that significantly enhance operations.
Techniek BV is proud to be the sales agent for Ever-power Group, a leading manufacturer in the hydraulic cylinder industry. Our expertise lies in providing high-quality hydraulic cylinders specifically designed for tunnel boring machines. One of our flagship products is the Open Tunnel Boring Machine Shield Cylinder, which exemplifies our commitment to innovation and reliability.
In addition to our standard hydraulic cylinders, we offer non-standard customization options tailored to meet the specific needs of our clients. We can manufacture cylinders with a diameter of D360MM and a stroke length of L6000MM, ensuring that we can accommodate various project requirements. Our team of skilled professionals is dedicated to delivering customized solutions that exceed customer expectations. We invite customers to bring their drawings and samples for tailored cylinder designs that fit their unique specifications.
