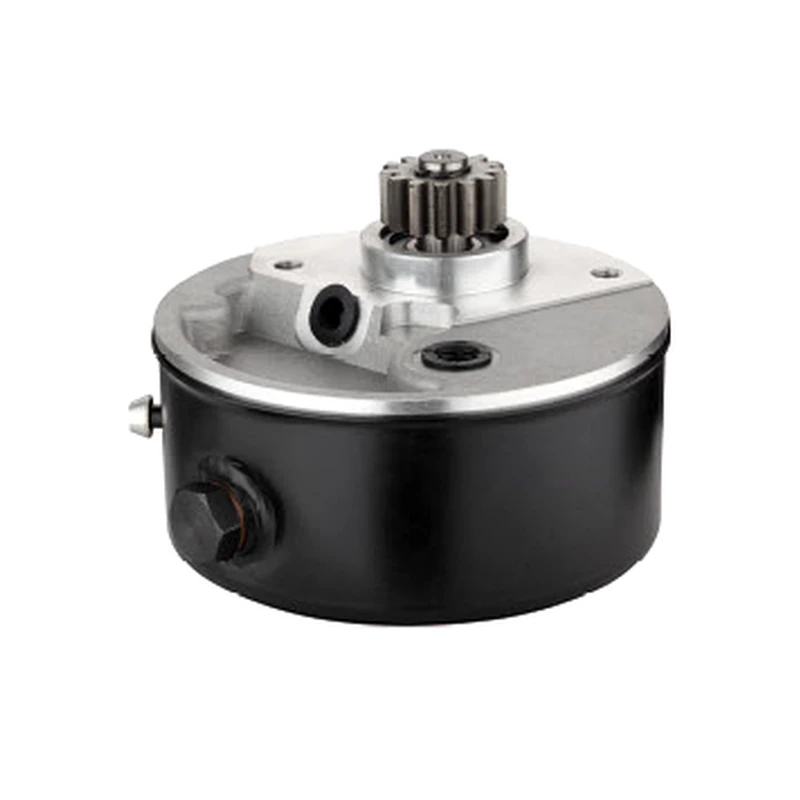

527904M93 / MF #9: 6.0 ml/rev, 120 bar, clockwise (CW). Flexible MOQ by model and order value; 1–2 pcs can be considered at a higher unit price.
MF #9, cross-referenced as 527904M93, is the 6 ml/rev NPT-threaded pump in this series. Compared with MF #10 it keeps a 120 bar maximum but has a different displacement and a 500–3600 rpm operating band. Check the drive stub and the 773126M92 reference before ordering.
The name 527904M93 / MF #9 is useful when matching a pump across parts listings. It does not by itself define shaft engagement, fastening dimensions or the installed hydraulic duty.
No specific tractor serial ranges are established here for 527904M93 / MF #9. Use the parts manual and existing hardware to complete the application check.
| Reference / model | 527904M93 / MF #9 |
|---|---|
| Product type | Tractor Hydraulic Gear Pump |
| Original reference numbers | 527904M93; 773126M92 |
| Applicable tractor models | Confirm from original pump / equipment parts list |
| Manufacturer reference | MF #9 pump |
| Nominal displacement | 6.0 ml/rev |
| Maximum pressure | 120 bar |
| Rotational speed | 500–3600 rpm |
| Controlled flow rate | 6.0 L/min |
| Feed hole / connection | NPT 3/8 |
| Discharge hole / connection | NPT 1/4 |
| Rotation | clockwise (CW) |
Before removing 527904M93 / MF #9, mark each hydraulic hose with its original position and note how the drive coupling engages. Then check the condition of the drive teeth, mounting gasket and fasteners on the old unit.
Document any adaptor or hose changes so future replacements are not ordered against outdated dimensions.
The catalogue prints 6.0 ml/rev for this pump. When replacing it, avoid enlarging displacement on appearance alone: the input drive and relief protection were chosen around the original hydraulic demand.
Within the comparison set, MF-HEMA / MF #10 lists 5.0 ml/rev and 120 bar. That is a useful limit check for the 527904M93 / MF #9 hydraulic request, not permission to alter the tractor’s original pump rating.
Controlled flow is shown as 6.0 L/min for this listing. Its circuit function should be reviewed before specifying a valve or control setting.
The stated speed is 500–3600 rpm. Before commissioning, verify the engine accessory drive ratio and that normal operating conditions do not exceed this listing.
527904M93 / MF #9 is marked clockwise rotation. Identify the shaft end before interpreting the arrow and compare the actual pump drive direction with the equipment drawing.
Do not machine pipework from the illustration. The two connection callouts are feed NPT 3/8 and discharge NPT 1/4; check the physical unit first.
Drive rotationCW
Displacement6.0 ml/rev
Connection checkNPT 3/8 / NPT 1/4
One comparison point is Massey Ferguson MF-HEMA / MF #10, where the record shows 5.0 ml/rev and 120 bar. The present 527904M93 / MF #9 specification (6.0 ml/rev, 120 bar) should be kept separate.
It is often worth checking the original pressure-line location before discussing any adapter or revised hose.
Send model 527904M93 / MF #9, the quantity and one legible photo of the part mark. For interface review, add the drive-shaft profile, bolt spacing and a drawing of the port locations.
For serial-sensitive machines, an equipment parts-list extract is especially helpful.
Look for a matching shaft profile, mounting flange and pressure-side connection; a parts number alone cannot settle every revision.
Not necessarily; controlled-flow information is separate from geometric displacement and actual delivery.
Order quantities are set according to pump type and total order value. A small order of 1–2 pieces can be considered at a higher unit price; new customers may request 1–5 samples when the item is suitable. Mixed-model orders are available, normally with a combined order value of approximately USD 1,500.
Typical production schedules are 10–25 working days for standard items, 20–45 working days for customized components, and 45–120 working days for project equipment. Usual delivery terms are EXW, FOB, CIF and DAP. FCA, CFR, CPT, CIP and DDP can be discussed for specific shipments. Confirm the final schedule and terms with the quotation.
Third-party brand names and trademarks are used only for product identification and cross-reference. They remain the property of their respective owners; such references do not imply affiliation, sponsorship, authorization or endorsement.
Send the old pump reference, quantity, photos and interface measurements to our sales team.
