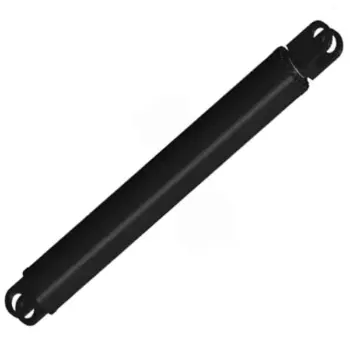

The main boom luffing cylinder is typically a large, double-acting cylinder with a bore diameter of up to 580mm and a stroke length of up to 5635mm. It is designed to operate at high pressures and withstand the harsh conditions of the offshore environment.
| Main Boom Luffing Cylinder | |
| Application | Provides thrust force to realize the pitching of the crane boom |
| Specifications | Bore diameter: up to 580mm Rod diameter: up to 440mm Stroke up to 5635mm |
| Thrust force | Maximum 8454KN (Cylinders diameter 580mm/pressure 32MPa) |
The main boom luffing cylinder for offshore cranes is a hydraulic cylinder that provides the thrust force to raise and lower the crane boom. It is one of the most important components of an offshore crane, as it is responsible for positioning the boom to lift and move heavy loads.
The cylinder is attached to the crane boom at one end and to the crane structure at the other end. When hydraulic fluid is pumped into the cylinder, the piston rod extends, pushing the boom up. When the hydraulic fluid is released from the cylinder, the piston rod retracts, pulling the boom down.
The main boom luffing cylinder is controlled by the crane operator, who uses a joystick or other control device to regulate the flow of hydraulic fluid to the cylinder. This allows the operator to precisely position the crane boom for lifting and moving loads.
Here are some of the key features of the main boom luffing cylinder for offshore cranes:
The main boom luffing cylinder is an essential component of offshore cranes and plays a vital role in the safe and efficient handling of heavy loads.
At Techniek BV, we take immense pride in our hydraulic cylinders. Our commitment to excellence, state-of-the-art production facilities, and unwavering dedication to quality assurance set us apart in the industry.
Unmatched Production Prowess: Our production capabilities are second to none. Equipped with cutting-edge technology and operated by a team of skilled experts, our manufacturing facilities are optimized for precision and efficiency. We invest in continuous research and development to ensure that our offshore hydraulic cylinders meet and exceed the evolving needs of our customers.
Quality Assurance Beyond Compare: At Techniek BV, quality is the cornerstone of our business. Every stage of production is subject to rigorous testing and inspection to guarantee that our hydraulic cylinders meet the highest industry standards. Our commitment to quality extends beyond our products; it's ingrained in our company culture.
Reliable Offshore Solutions: Our hydraulic cylinders are specifically designed to withstand the harshest offshore conditions. Whether it's subsea exploration or marine applications, you can trust our products to perform consistently and reliably, ensuring the success of your operations.
Choose Techniek BV for offshore hydraulic cylinders that exemplify innovation, precision, and durability. With us, you not only get exceptional products but also a partner dedicated to your success. Join the countless satisfied customers who have made us their first choice in offshore hydraulic solutions.
