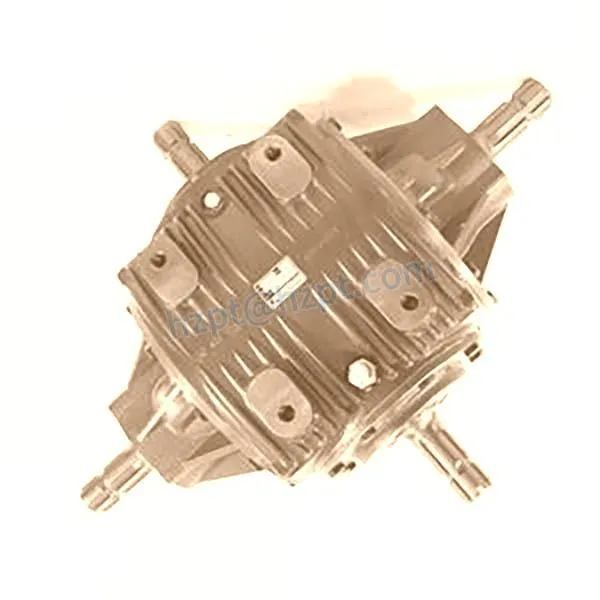

Flail Mower Gearbox-Replacement of Comer Code T-331A 1:1.94

Details

Flail Mower Gearboxes - Replacement of Comer Code T-331A 1:1.94

Specifications:

  • Product: Flail Mower Gearboxes - Replacement of Comer Code T-331A 1:1.94
  • Ratio: 1:1.94
  • Compatible with Comer Code T-331A
  • Designed for use in flail mowers

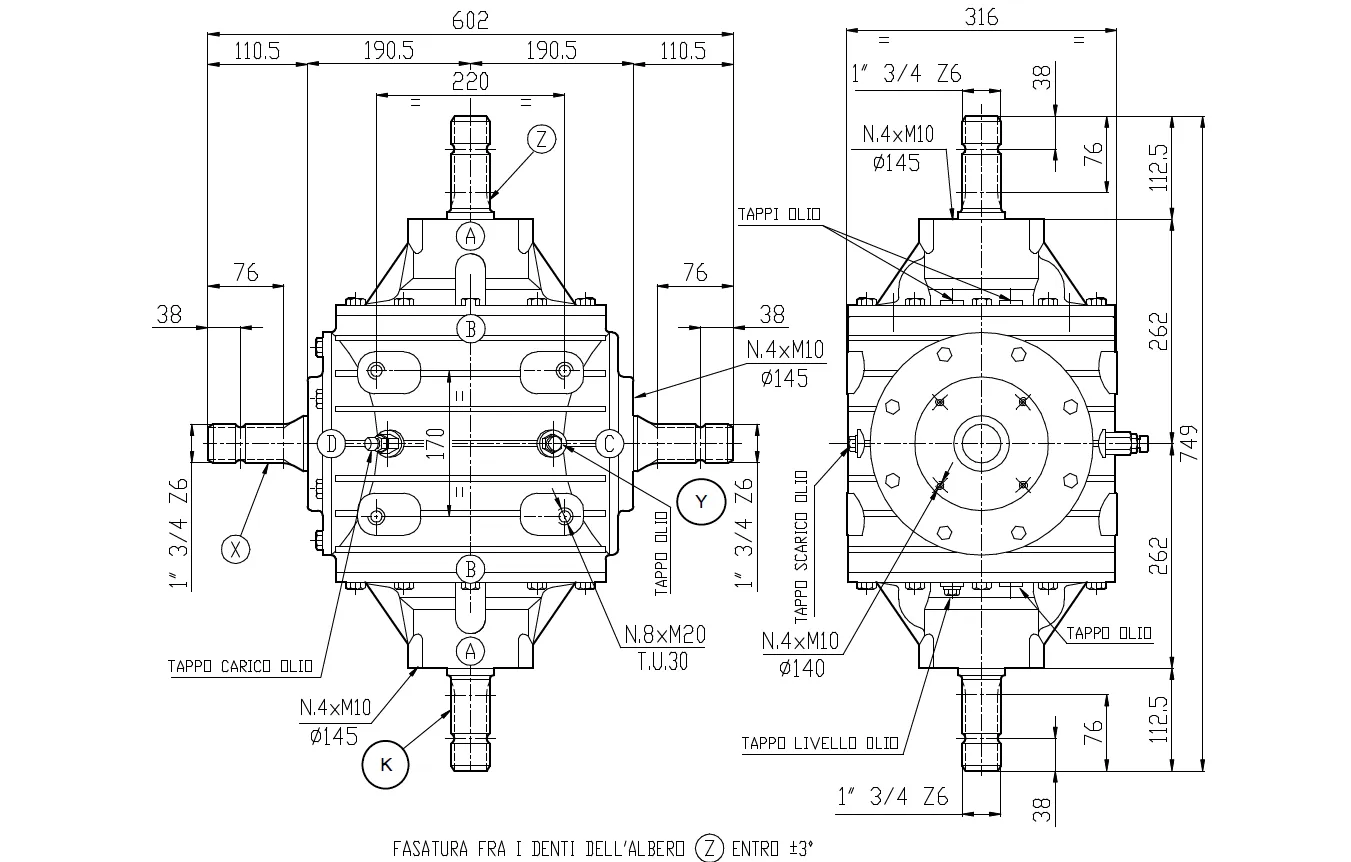

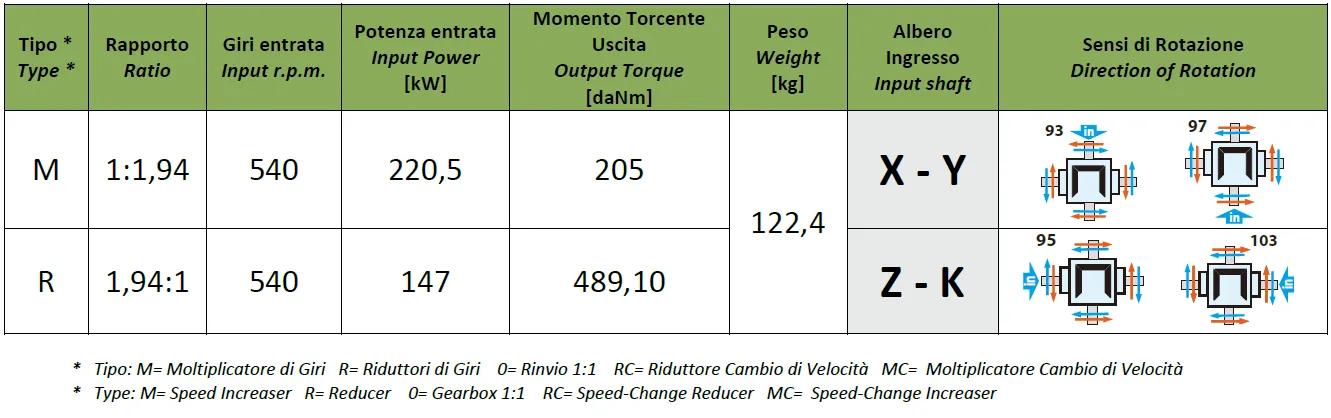

Flail Mower Gearbox T-331A Specifications Flail Mower Gearbox T-331A Specifications

Description
Flail Mower Gearboxes - Replacement of Comer Gearbox T-331A 1:1.94
Product details
  • Housing material: cast iron
  • Contact us for power at a different RPM
  • The gearbox is delivered without oil and must be filled before first use.
  • First, the oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range
  • Various (agricultural) applications
  • Mowers
Consists of
  • Gearbox
  • Order oil separately
Max. output torque
205 nm
Contains oil
No
Max. oil capacity
7.5?l
Oil SAE viscosity grade
80W-90
Weight
122.4 kg
Gear arrangement Increasing
93 - 97
Gear arrangement Reducing
95- 103
Input power kW / HP Increasing
147 / 197 kW/HP
Input shaft Increasing
Z - K
Input shaft Reducing
X - Y
Input power KW / HP Reducing
220.5 / 295 kW/HP
Output Torque DaNm Increasing
489.10 daNm
Ratio Increasing
1: 1.94
Ratio Reducing
1.94: 1
Shaft X
1 3/4" (6) (A)
Shaft Y
1 3/4" (6) (A)
Shaft Z
1 3/4" (6) (B)

Introduction

The Flail Mower Gearboxes - Replacement of Comer Code T-331A 1:1.94 is a high-quality gearbox designed for use in flail mower machines. This gearbox is specifically engineered to replace the Comer Code T-331A gearbox, offering improved performance and durability. With its precise gear ratio of 1:1.94, it ensures optimal power transmission for effective and efficient flail mowing operations.

Superior Construction

Our Flail Mower Gearboxes are built to withstand the toughest conditions. They are constructed with premium-grade materials, including hardened steel gears and heavy-duty housings, ensuring long-lasting durability and resistance to wear and tear. The gearbox is expertly designed to handle high torque loads, providing reliable performance even in demanding applications.

Precision Engineering

When it comes to flail mower gearboxes, precision is crucial. Our Replacement of Comer Code T-331A 1:1.94 Gearbox is meticulously engineered to deliver exceptional precision in power transmission. The gear teeth are precisely cut to ensure smooth and efficient operation, minimizing friction and maximizing power transfer. This results in improved overall performance and reduced power loss.

Enhanced Efficiency

The Replacement of Comer Code T-331A 1:1.94 Gearbox is designed to optimize the efficiency of flail mower machines. With its carefully calculated gear ratio, it allows for the optimal speed and torque required for effective mowing. This gearbox ensures that every ounce of power is utilized, minimizing energy wastage and maximizing productivity.

Easy Installation

Installing the Replacement of Comer Code T-331A 1:1.94 Gearbox is a hassle-free process. The gearbox is designed to be compatible with flail mower machines that require a replacement for the Comer Code T-331A gearbox. It features a user-friendly mounting system, allowing for quick and straightforward installation without the need for extensive modifications or adjustments.

Application Versatility

Our Flail Mower Gearboxes are suitable for a wide range of applications. Whether you need to replace a worn-out gearbox or upgrade your existing flail mower, the Replacement of Comer Code T-331A 1:1.94 Gearbox offers a versatile solution. It is compatible with various flail mower models, making it an ideal choice for agricultural, landscaping, and groundskeeping applications.

Flail Mower Gearbox

Why Choose Our Agricultural Gearboxes?

RP Techniek BV, as the Dutch sales agent of Ever-power Group, takes pride in offering top-notch agricultural gearboxes. Our expertise lies in providing superior quality Flail Mower Gearboxes, specifically the replacement of Comer Code T-331A 1:1.94.

What sets us apart is our commitment to excellence in product quality and customer service. Our gearboxes are manufactured using the finest materials and cutting-edge technology, ensuring durability and optimum performance. We understand the importance of reliable agricultural machinery and strive to deliver gearboxes that meet and exceed your expectations.

Apart from our exceptional gearboxes, we also offer a wide range of other agricultural equipment parts and transmission components. With a diverse selection to choose from, you can find everything you need for your farming needs in one place.

At RP Techniek BV, we take pride in our strong manufacturing capabilities and ensure that our products are produced with precision and efficiency. Our team of skilled professionals works tirelessly to deliver gearboxes that are built to last.

Take a look at the image below to get a glimpse of our agricultural gearbox manufacturing process:

[![Agricultural Gearbox Manufacturers](https://netherlandsdrive.com/wp-content/uploads/2024/12/agricultural-gearbox-manufacturers.webp)](https://netherlandsdrive.com/wp-content/uploads/2024/12/agricultural-gearbox-manufacturers.webp)

PTO Shafts for Agricultural Gearboxes

The PTO shafts play a crucial role in connecting agricultural gearboxes, such as the Flail Mower Gearboxes, to efficiently transfer power from the tractor to the machinery. In the case of the Flail Mower Gearboxes - Replacement of Comer Code T-331A 1:1.94, our company offers compatible PTO shafts that ensure a seamless connection between the agricultural gearbox and the machinery.

Our PTO shafts are designed to meet the specific requirements of agricultural applications, providing the necessary strength, durability, and precision. With our high-quality PTO shafts, farmers and agricultural professionals can experience smooth power transmission, contributing to optimal performance and productivity in their operations.

At our company, we take pride in offering a wide range of agricultural drive shafts for sale, including the required specifications for the Flail Mower Gearboxes - Replacement of Comer Code T-331A 1:1.94. Our drive shafts are carefully engineered and manufactured to deliver reliable and efficient power transfer, ensuring the smooth operation of agricultural machinery.

To learn more about our PTO shafts and explore our complete range of agricultural drive shafts, please visit our website or contact us directly. Trust us to provide you with the reliable and high-performing PTO shafts that meet your agricultural needs.

PTO Drive Shaft
