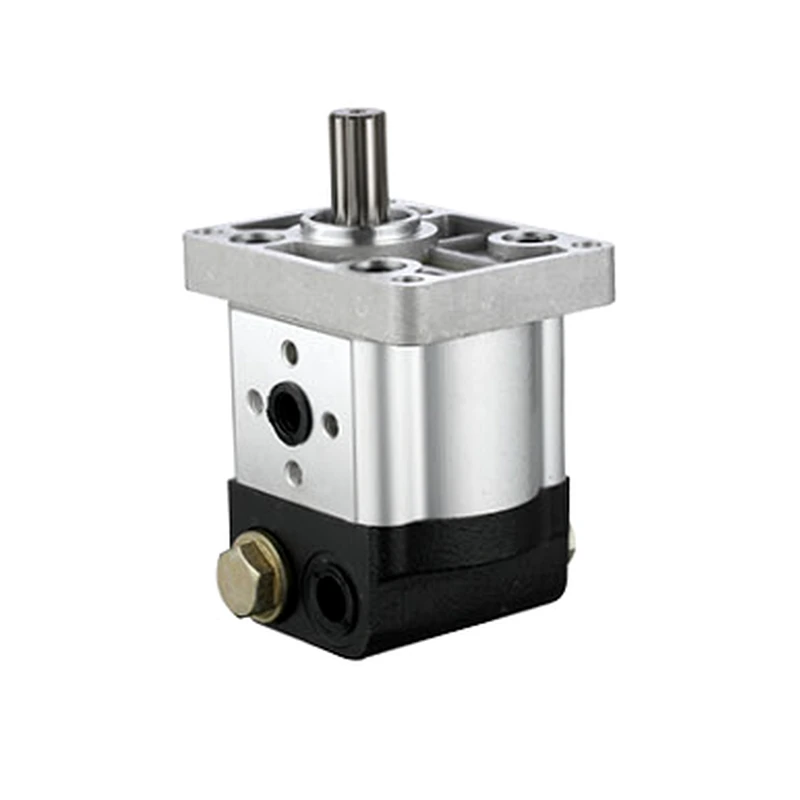

CD704-1.40.011/10: 10 ml/rev, 10 MPa, clockwise (CW). Flexible MOQ by model and order value; 1–2 pcs can be considered at a higher unit price.
CD704-1.40.011/10 is the 10 ml/rev Deutz-Fahr model, not a generic version of the 14 ml/rev housings beside it. It is listed at 10 MPa and 2000 rpm, with a 14 mm feed hole and an M18×1.5-6H discharge port. Verify both the threaded connection and the bolt pattern rather than judging only by body silhouette.
If the existing machine’s service documentation lists CD704-1.40.011/10, check the full cross-reference CD704-1.40.011/10. The serial range and original pump details still determine the final match.
No specific tractor serial ranges are established here for CD704-1.40.011/10. Use the parts manual and existing hardware to complete the application check.
| Reference / model | CD704-1.40.011/10 |
|---|---|
| Product type | Tractor Hydraulic Gear Pump |
| Original reference numbers | CD704-1.40.011/10 |
| Applicable tractor models | Confirm from original pump / equipment parts list |
| Manufacturer reference | Not provided |
| Nominal displacement | 10 ml/rev |
| Maximum pressure | 10 MPa |
| Rotational speed | 2000 rpm |
| Controlled flow rate | Not stated |
| Feed hole / connection | Ø14 |
| Discharge hole / connection | M18×1.5-6H |
| Rotation | clockwise (CW) |
For a unit marked CD704-1.40.011/10, compare the housing register and drive stub before connecting pressure lines. A distorted mounting face or damaged coupling should be corrected rather than forcing the new pump into place.
Correct relief protection and uncontaminated oil matter more than the appearance of the replacement housing.
The 10 ml/rev figure represents swept volume, not a constant litres-per-minute delivery. For a correct substitute, ask whether the hydraulic equipment was designed around the same shaft-speed band.
Within the comparison set, CBN-E314R lists 14 ml/rev and 16 MPa. That is a useful limit check for the CD704-1.40.011/10 hydraulic request, not permission to alter the tractor’s original pump rating.
The table does not assign a regulated-flow value, so that quantity cannot be inferred from the displacement number.
The stated speed is 2000 rpm. Before commissioning, verify the engine accessory drive ratio and that normal operating conditions do not exceed this listing.
The directional entry is CW, viewed using the catalogue’s shaft orientation. A correct replacement should use the same viewing convention rather than assuming clockwise from the engine side.
The feed port is shown as Ø14; the discharge port as M18×1.5-6H. Confirm the fitting seat and whether the opening is measured as a bore or a thread.
Drive rotationCW
Displacement10 ml/rev
Connection checkØ14 / M18×1.5-6H
The adjacent Deutz-Fahr CBN-E314R part has direction CW, while CD704-1.40.011/10 is CW. Rotation is a hard constraint even if two supplier listings show comparable capacities.
A supplier can review alternatives after the damaged part is identified by its original drawing or measurements.
Please identify the tractor or engine installation for CD704-1.40.011/10, together with the serial number if available. A sketch showing the Ø14 and M18×1.5-6H connections will shorten the matching process.
Please highlight any change from the original connection standard to avoid quotation assumptions.
It is better to provide the original pump marking and photos, especially when a tractor has had earlier repairs or modifications.
It describes displacement per revolution, not a guaranteed service flow; compare actual shaft rpm and pump efficiency.
Order quantities are set according to pump type and total order value. A small order of 1–2 pieces can be considered at a higher unit price; new customers may request 1–5 samples when the item is suitable. Mixed-model orders are available, normally with a combined order value of approximately USD 1,500.
Typical production schedules are 10–25 working days for standard items, 20–45 working days for customized components, and 45–120 working days for project equipment. Usual delivery terms are EXW, FOB, CIF and DAP. FCA, CFR, CPT, CIP and DDP can be discussed for specific shipments. Confirm the final schedule and terms with the quotation.
Third-party brand names and trademarks are used only for product identification and cross-reference. They remain the property of their respective owners; such references do not imply affiliation, sponsorship, authorization or endorsement.
Send the old pump reference, quantity, photos and interface measurements to our sales team.
