| Torque Range | 1000-450,000 Nm |
| Transmissible Mechanical Power | up to 150 kW |
| Gear Ratios | 6.9-9.000 |

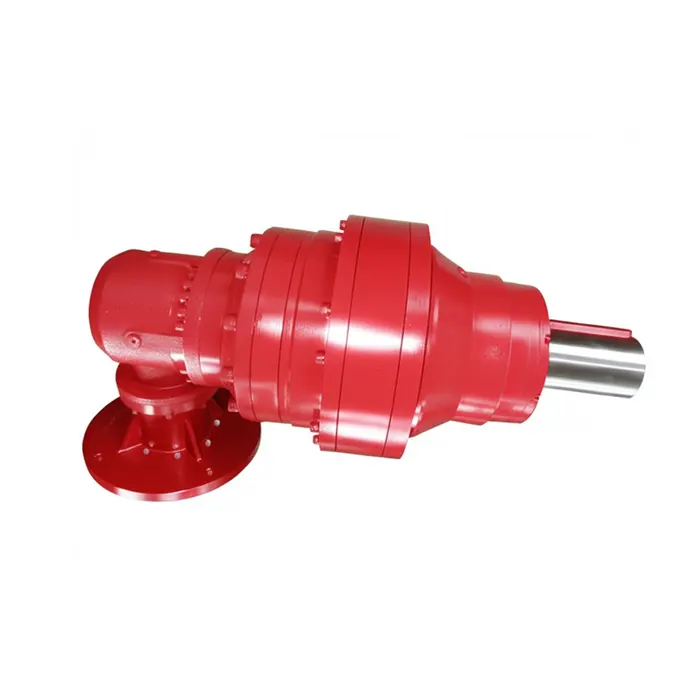

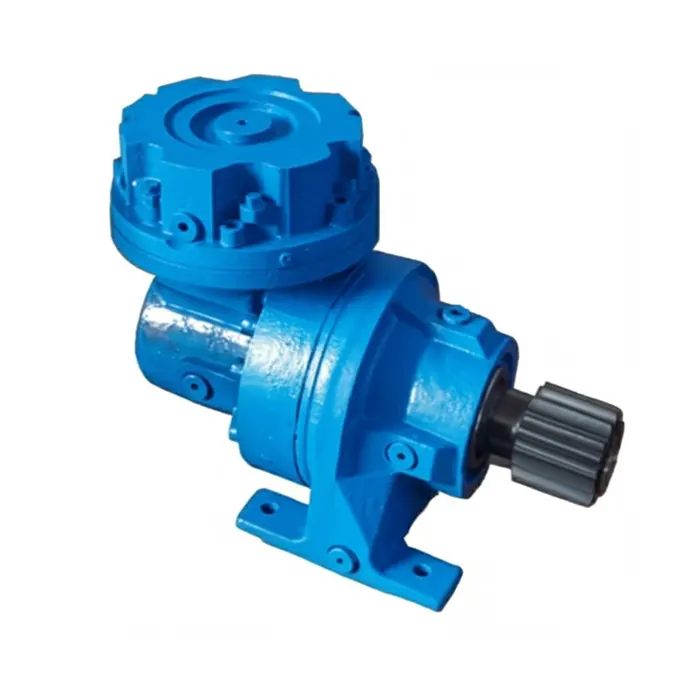

| Gear Unit Versions | RIGHT ANGLE (with a spiral bevel gear set) |

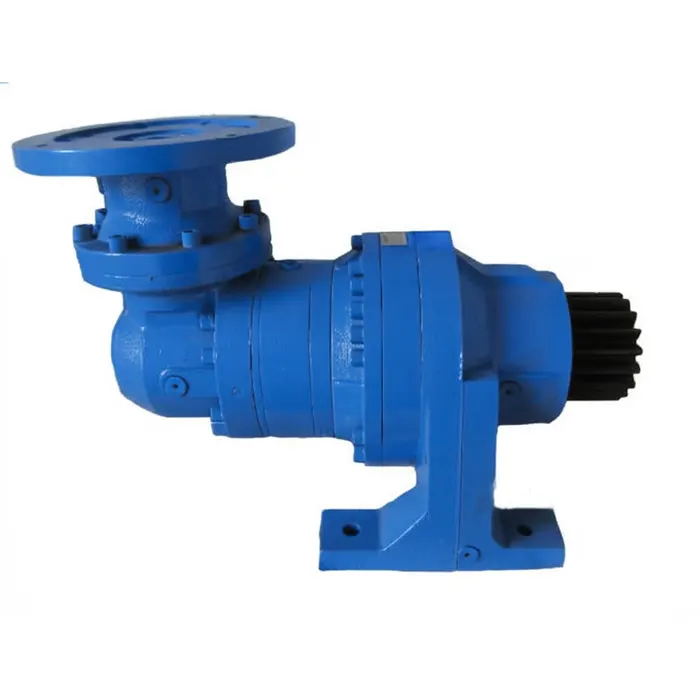

| Output Configuration | Foot and flange mounted Output shaft: solid with key, splined, splined hollow, hollow with shrink disc |
| Input Configurations | Flanged axial piston hydraulic motors Hydraulic orbit motors IEC and Nema motor adaptors Solid input shaft |
| Hydraulic Brake | Hydraulically released parking brake on request |
| Electric Brake | DC and AC type |
| Type | Torque Nm | |
| RP300R | RP300R2, RP300R3, RP300R4 | 1000 |
| RP301R | RP301R2, RP301R3, RP301R4 | 1750 |
| RP303R | RP303R2, RP303R3, RP303R4 | 2500 |
| RP305R | RP305R2, RP305R3, RP305R4 | 5000 |
| RP306R | RP306R2, RP306R3, RP306R4 | 8500 |
| RP307R | RP307R2, RP307R3, RP307R4 | 12500 |
| RP309R | RP309R2, RP309R3, RP309R4 | 18000 |
| RP310R | RP310R2, RP310R3, RP310R4 | 25000 |
| RP311R | RP311R2, RP311R3, RP311R4 | 40000 |
| RP313R | RP313R2, RP313R3, RP313R4 | 55000 |
| RP315R | RP315R3, RP315R4 | 100000 |
| RP316R | RP316R3, RP316R4 | 135000 |
| RP317R | RP317R3, RP317R4 | 170000 |
| RP318R | RP318R4 | 250000 |
| RP319R | RP319R4 | 350000 |
| RP321R | RP321R4 | 500000 |
 |
 |
Choosing the right-angle planetary gearbox for your application involves evaluating several important factors. Start by analyzing your torque needs—confirm that the gearbox can manage your equipment’s load effectively. Next, take into account any size limitations; a compact model like the EP300R series works well in restricted spaces. Assess efficiency and noise levels, particularly in environments where quiet operation is essential. Consider the gearbox's durability and maintenance expenses—select a dependable, low-maintenance choice to reduce downtime. Lastly, look for customization options, like various sizes or high-power models, tailored to your specific requirements. By weighing these components, you will identify a gearbox that provides optimal functionality and value.
Ready to enhance your equipment with the RP300R Series Right-Angle Planetary Gearbox? Reach out to our team for a consultation or request a quote today. We are here to assist you in finding the right size and configuration for your needs.
