Details

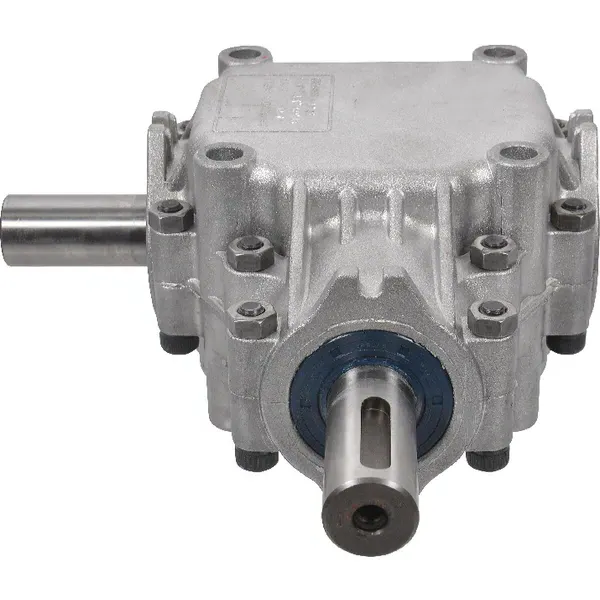

Fertilizer Spreader Gearbox ¨C Replacement of Comer Code L-25A

Specifications:

  • Product Type: Gearbox
  • Compatible with: Comer Code L-25A
  • Application: Fertilizer Spreader

Tanım:

The Fertilizer Spreader Gearbox ¨C Replacement of Comer Code L-25A is a high-quality replacement gearbox designed specifically for use with the Comer Code L-25A model. It is perfect for use in fertilizer spreaders, ensuring smooth and efficient operation. This gearbox is made with durable materials, providing long-lasting performance and reliability. Upgrade your equipment with this replacement gearbox to maintain optimal functionality and extend the lifespan of your fertilizer spreader.

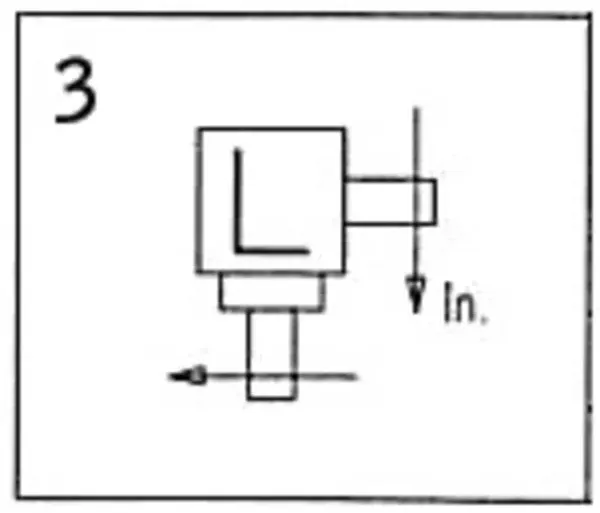

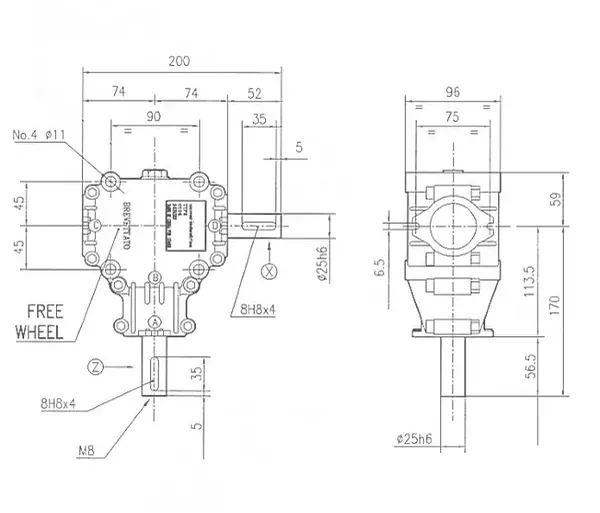

Fertilizer Spreader Gearbox L-25A Specifications Fertilizer Spreader Gearbox L-25A Specifications
Ürün Açıklaması
Fertilizer Spreader Gearbox ¨C Replacement of Comer Gearbox L-25A
Product details
  • Contact us for power at a different RPM
  • The gearbox is delivered without oil and must be filled before first use.
  • First, the oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range
  • Various (agricultural) applications
  • Mowers
  • Chemical fertilizer spreaders
  • Band saws
Consists of
  • Gearbox
  • With freewheeling clutch
  • Without oil
Contains oil
No
Max. oil capacity
0.35l
Max. oil change interval
500?h
Oil SAE viscosity grade
80W-90
Housing material
Aluminium
Ağırlık
4.2?kg
Input power kW / HP Increasing
5 / 6.8?kW/HP
Input power KW / HP Reducing
2.2 / 3 kW/HP
Output Torque DaNm Increasing
2.9 daNm
Ratio Increasing
1 : 3
Ratio Reducing
3:1
Input shaft
X
Shaft X
25 h6
Shaft Z
25 h6

giriiş

The Fertilizer Spreader Gearbox ¨C Replacement of Comer Code L-25A is a high-quality replacement gearbox designed to fit with Comer Code L-25A fertilizer spreaders. Made from durable materials, this gearbox is capable of handling even the toughest conditions in the field.

Features

  • High-quality replacement gearbox for Comer Code L-25A fertilizer spreaders
  • Made from durable materials for long-lasting performance
  • Designed to withstand tough conditions in the field
  • Easy to install and use
  • Provides excellent performance and efficiency for optimal fertilizer spreading

Installation

The Fertilizer Spreader Gearbox ¨C Replacement of Comer Code L-25A is designed for easy installation. Simply follow these steps:

  1. Remove the old gearbox from the Comer Code L-25A fertilizer spreader
  2. Install the new gearbox in its place, making sure it is securely fastened
  3. Connect the input shaft to the tractor's PTO shaft
  4. Adjust the gearbox's position to align with the fertilizer spreader's input shaft
  5. Test the gearbox's operation to ensure it is working properly

Usage

The Fertilizer Spreader Gearbox ¨C Replacement of Comer Code L-25A is designed to provide excellent performance and efficiency for optimal fertilizer spreading. To use it effectively, follow these tips:

  • Ensure the spreader is properly calibrated for the type of fertilizer being used
  • Set the spreader's distribution rate according to the manufacturer's specifications
  • Check the gearbox's oil level before each use and add oil if necessary
  • Inspect the gearbox regularly for signs of wear or damage and replace if necessary

Why Choose Our Agricultural Gearboxes?

RP Techniek BV is the authorized sales agent of Ever-power Group in the Netherlands. Our company specializes in providing high-quality agricultural gearboxes, with a focus on the Fertilizer Spreader Gearbox - Replacement of Comer Code L-25A. This particular gearbox showcases our unique selling points, emphasizing product quality, excellent customer service, and our strong manufacturing capabilities.

In addition to agricultural gearboxes, we also offer a wide range of other agricultural machinery parts and transmission components. With a diverse selection of products, we ensure that our customers can find everything they need for their agricultural machinery.

Tarımsal Şanzıman

PTO Shafts for Agricultural Gearboxes

When it comes to agricultural machinery, PTO shafts are an integral component required for efficient operation of the machinery. PTO shafts are responsible for transferring power from the agricultural gearbox to the machinery. Agricultural gearbox itself is an essential component that helps in converting the input of the machinery into an output that can be utilized in the field.

Our company recognizes the importance of PTO shafts and agricultural gearboxes in farming operations. We offer a variety of high-quality PTO shafts for agricultural gearboxes that are suitable for various types of machinery. Our PTO shafts are reliable and durable, capable of handling the rigorous demands of farming operations.

One of our popular products is the PTO shaft replacement for the Comer Code L-25A, which is commonly used in fertilizer spreader gearboxes. Our PTO shaft replacement offers a direct fit, ensuring that your machinery can operate effectively and efficiently.

We take pride in offering our customers a wide range of agricultural products, including PTO shafts. We offer our products at competitive prices, making sure that farmers are able to access the necessary equipment to operate their businesses.

Check out our website for more information on our products, including the PTO shaft replacement for the Comer Code L-25A.
