Fertilizer Spreader Gearbox

Double Disc Fertilizer Spreader Gearbox EP-SF11

Double Disc Fertilizer Spreader Gearbox EP-SF11 Dimensions

i	Uygun	Rpm input	Rpm output	Power		Toothing
i	Uygun	dev/dak	dev/dak	Kw	Hp	Toothing
1:1	Fertilizer spreader, etc	540	540	15	20	Gleason Helical Teeth
Remark: If you have any special require feel free let me know, we also accept customization.

Double Disc Fertilizer Spreader Gearbox EP-SF10 Dimensions

i		Uygun	Rpm input	Rpm output	Power		Toothing
i		Uygun	dev/dak	dev/dak	Kw	Hp	Toothing
left/right box	1:1.33	Fertilizer spreader, etc	540	406	15	20	Gleason Helical Teeth
Remark: If you have any special require feel free let me know, we also accept customization.

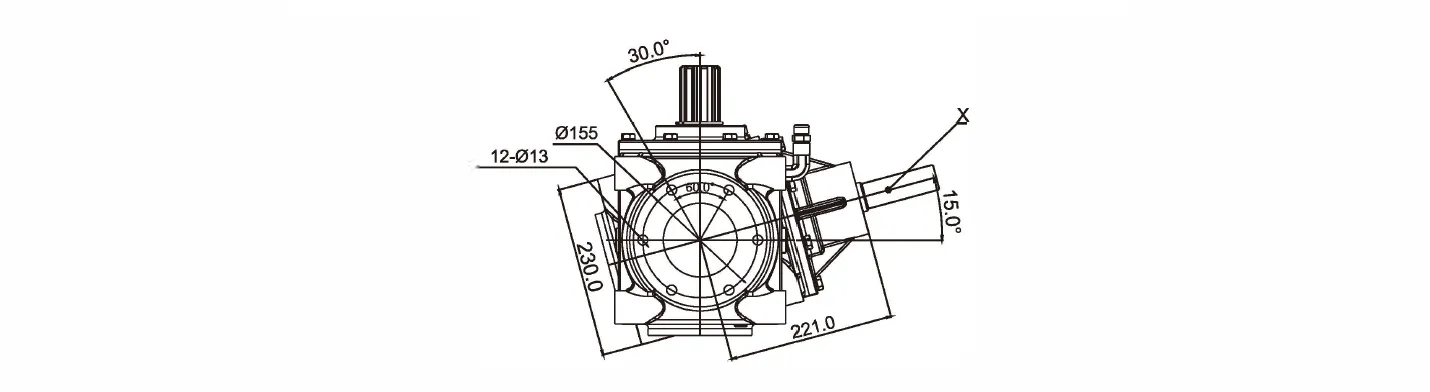

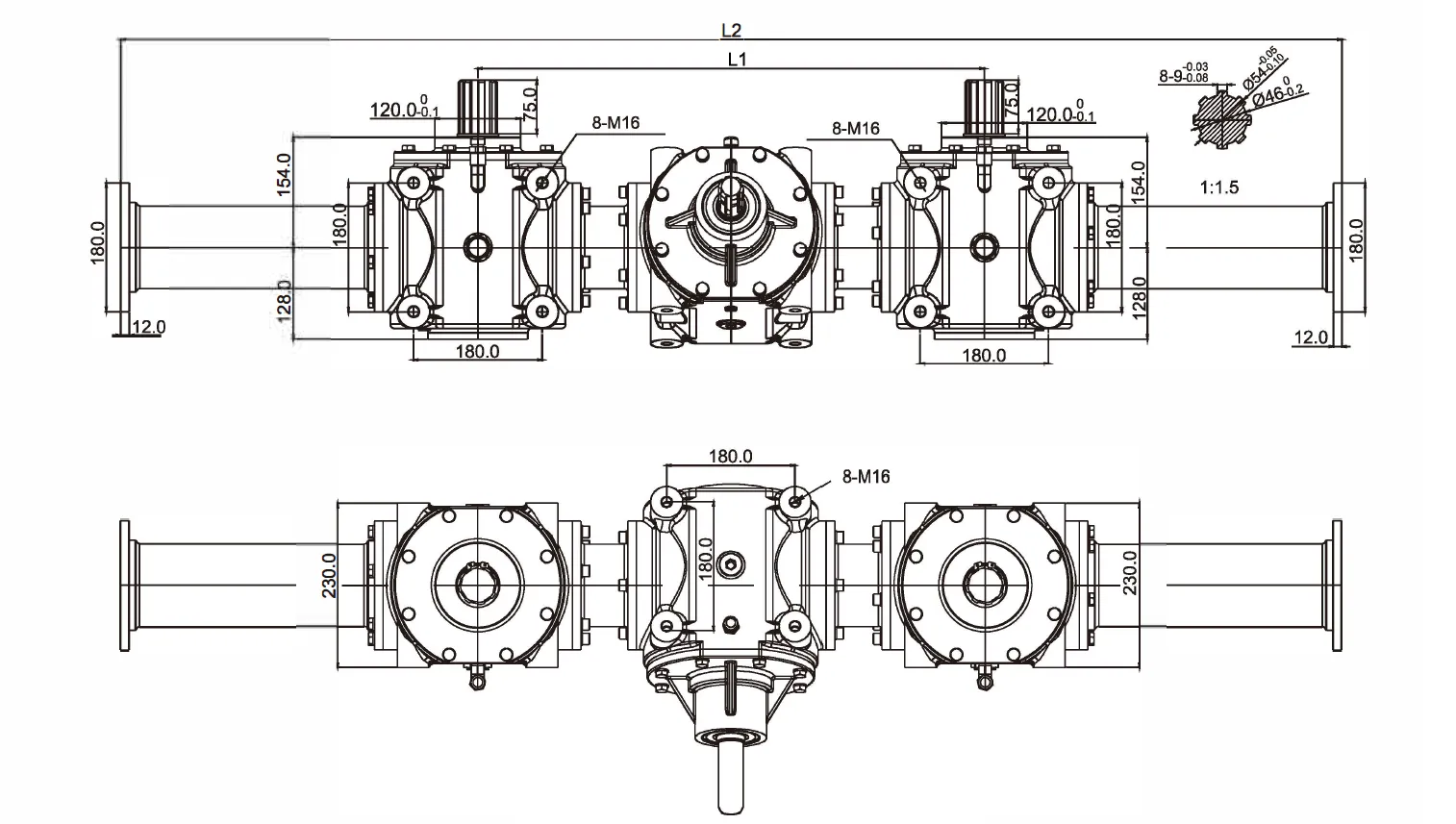

Fertilizer Seeder Gearbox EP-SF230 Dimensions

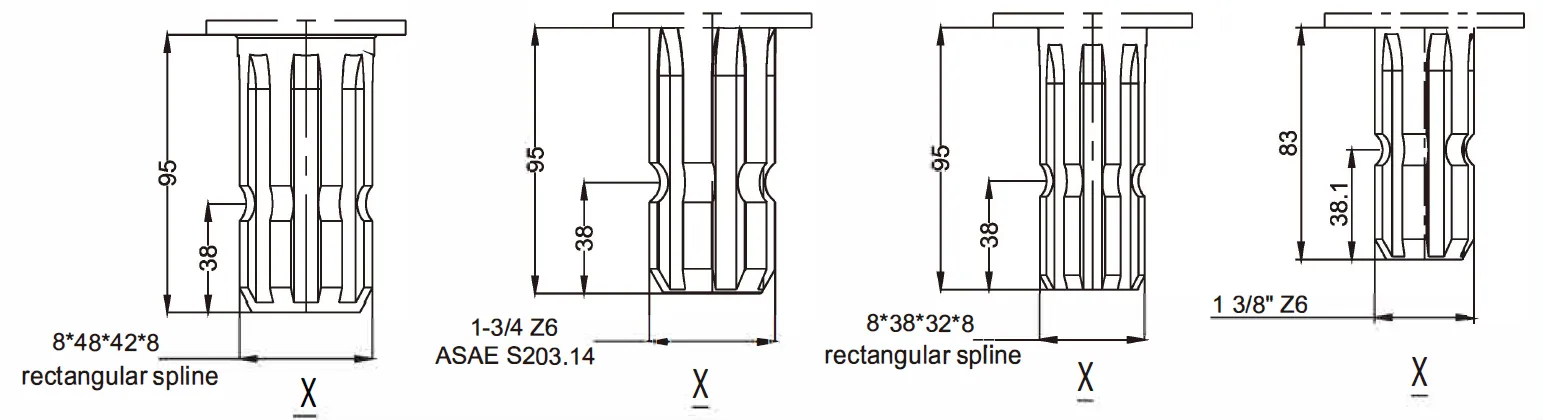

Fertilizer Seeder Gearbox EP-SF230 Shaft Dimensions

i		Uygun	Rpm input	Rpm output	Power		Toothing
i		Uygun	dev/dak	dev/dak	Kw	Hp	Toothing
Decelerate	2.36:1	Fertilizer broadcaster, etc	1000	423	120	160	Gleason Helical Teeth
Remark: If you have any special requirements, feel free to let me know; we also accept customs.

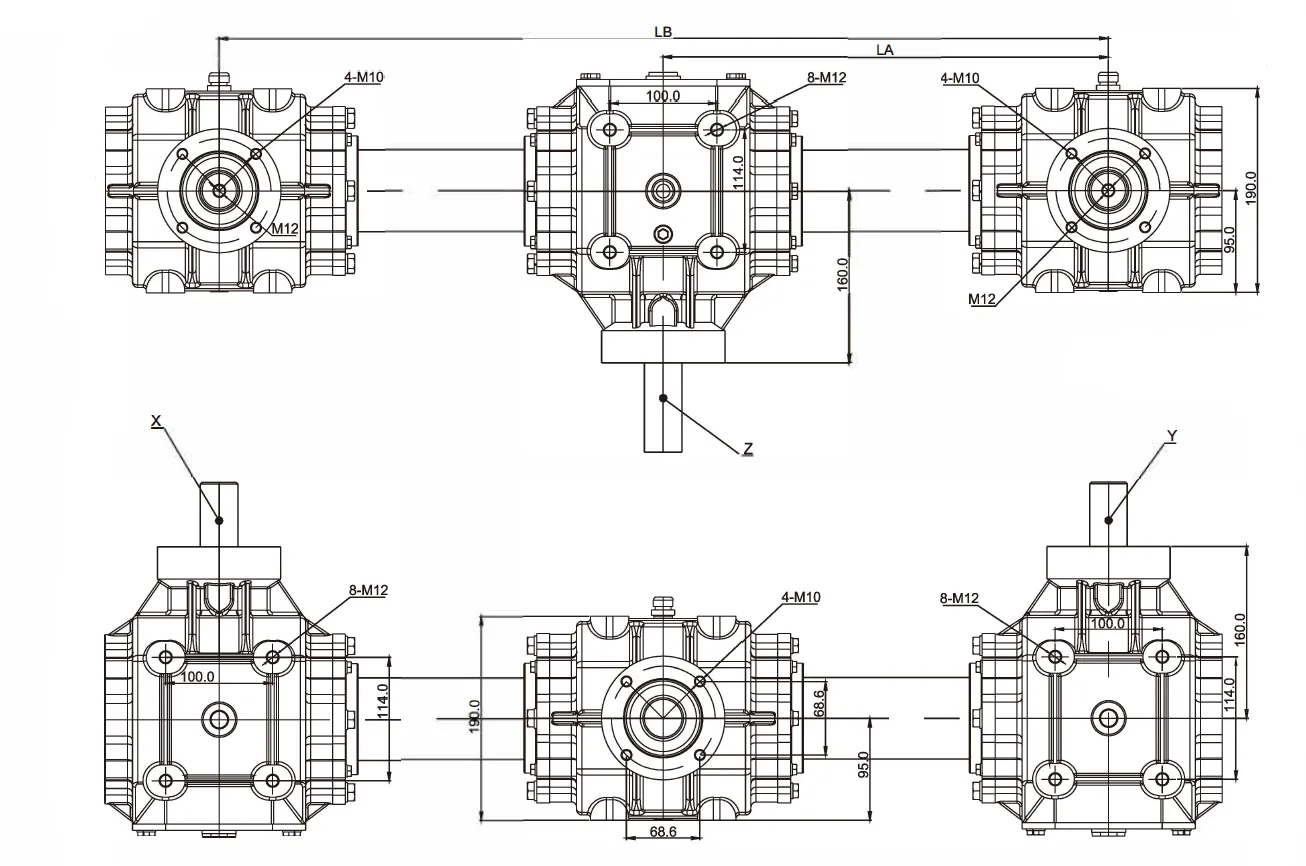

Fertilizer Seeder Gearbox EP190-R3 Dimensions

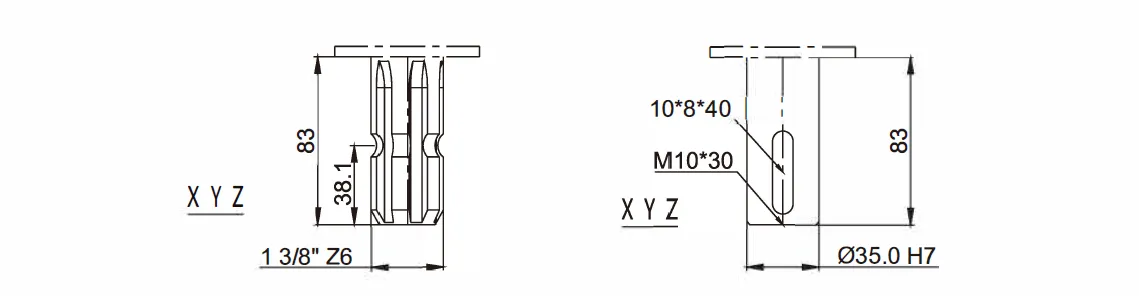

Fertilizer Seeder Gearbox EP190-R3 Shaft Dimensions

i		Uygun	Rpm input	Rpm output	Power		Toothing
i		Uygun	dev/dak	dev/dak	Kw	Hp	Toothing
Decelerate	1.38:1	Fertilizer broadcaster, etc	540	390	62	85	Gleason Helical Teeth
Remark: If you have any special requirements, feel free to let me know; we also accept customs.

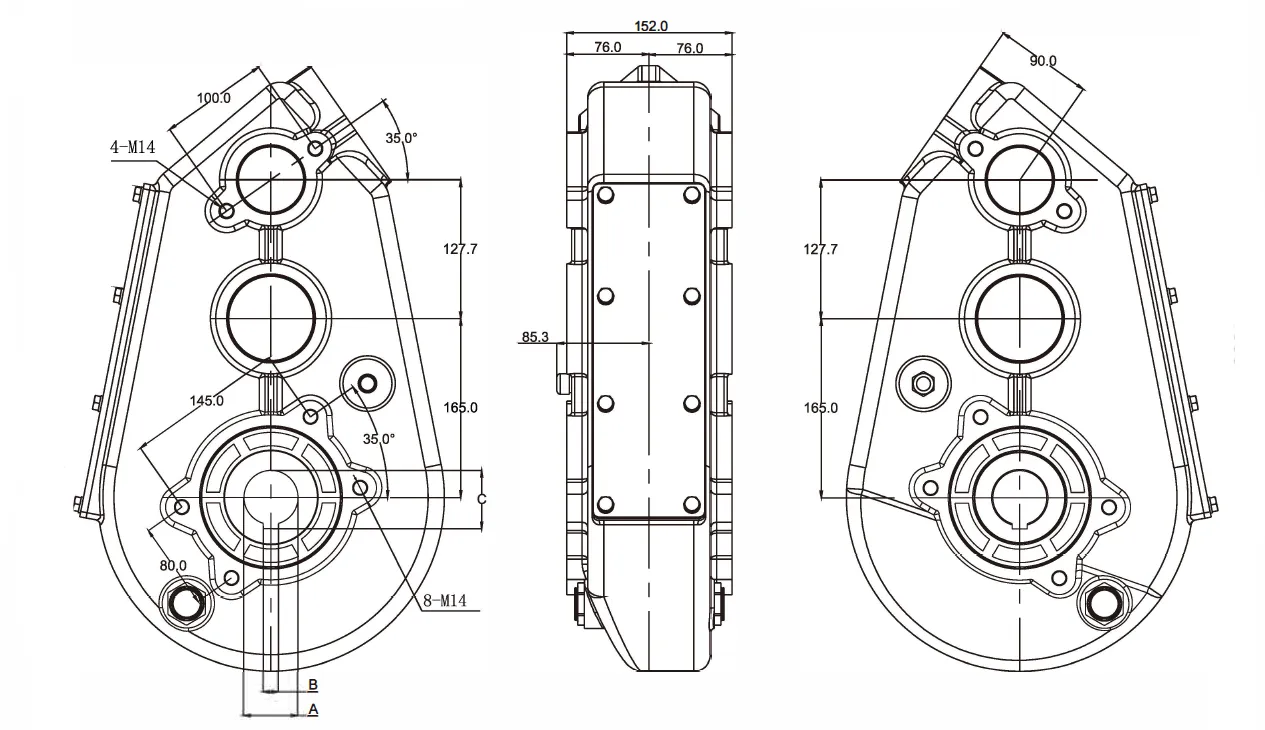

Fertilizer Seeder Gearbox EP50 Dimensions

i		Uygun	Rpm input	Rpm output	Output torque	Ağırlık	Toothing
i		Uygun	dev/dak	dev/dak	N.m	kilogram	Toothing
Decelerate	43.54:1	Fertilizer broadcaster, etc	1000	23	5000	55	Gleason Helical Teeth
Remark: If you have any special requirements, feel free to let me know; we also accept customs.

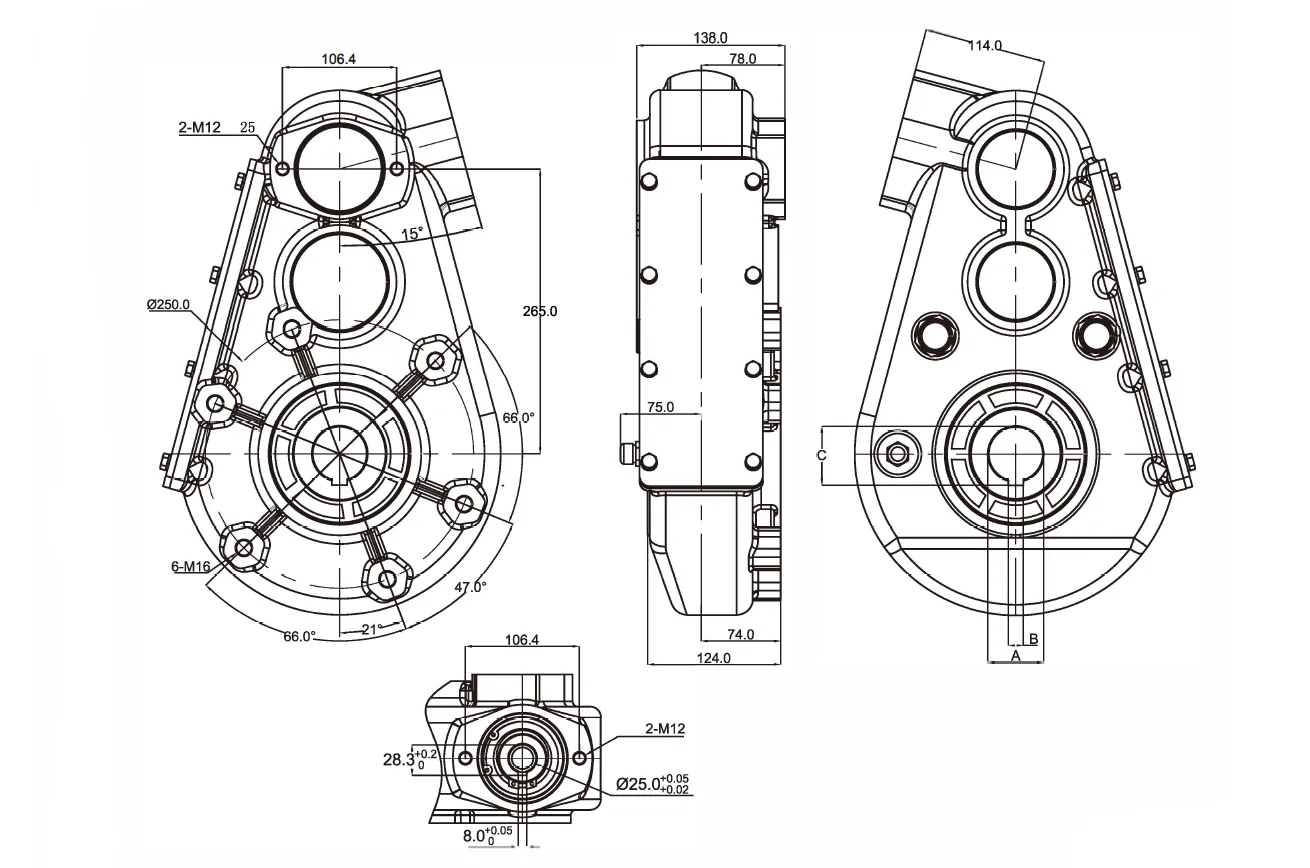

Fertilizer Seeder Gearbox EP35 Dimensions

i		Uygun	Rpm input	Rpm output	Output torque	Ağırlık	Toothing
i		Uygun	dev/dak	dev/dak	N.m	kilogram	Toothing
Decelerate	24.3:1	Fertilizer broadcaster, etc	1000	41	3500	47	Gleason Helical Teeth
Remark: If you have any special requirements, feel free to let me know; we also accept customs.

Ürün Açıklaması	Fertilizer Spreader Gearbox – Replacement of Comer Gearbox L-25A
Product details	Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First, the oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range	Various (agricultural) applications Mowers Chemical fertilizer spreaders Band saws
Consists of	Gearbox With freewheeling clutch Without oil
Contains oil	No
Max. oil capacity	0.35 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Aluminium
Ağırlık	4.2 kg
Input power kW / HP Increasing	5 / 6.8 kW/HP
Input power KW / HP Reducing	2.2 / 3 kW/HP
Output Torque DaNm Increasing	2.9 daNm
Ratio Increasing	1 : 3
Ratio Reducing	3:1
Input shaft	X
Shaft X	25 h6
Shaft Z	25 h6

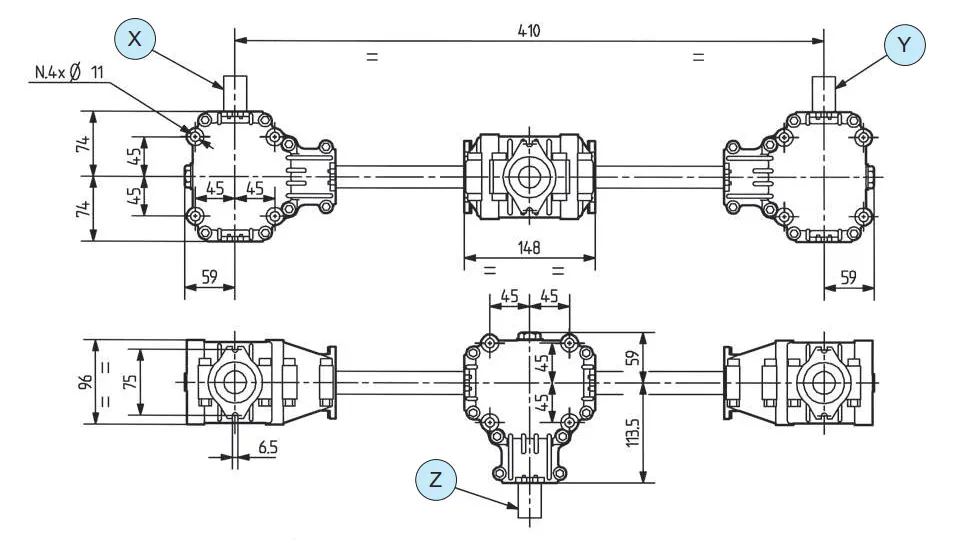

Fertilizer Spreader Gearbox Specifications L25C

Fertilizer Spreader Gearbox Specifications L150C

Fertilizer Spreader Gearbox Specifications L150J

Description	Fertilizer Spreader Gearbox – Replacement of Comer Gearbox L-25J
Application	Various (agricultural) applications Mowers Chemical fertilizer spreaders Band saws
Consists of	Gearbox Without oil
Technical information	If you have any questions regarding performance at different speeds, please do not hesitate to contact us. When using it for the first time, replace the oil after 50 operating hours.
Max. output torque	22.7 daNm
Contains oil	No
Max. oil capacity	0.35 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Aluminium
Ağırlık	4.1 kg
Gear arrangement Reducing	3 – 4
Input power kW / HP Increasing	11 / 15 kW/HP
Input shaft Increasing	X
Input shaft Reducing	Z
Input power KW / HP Reducing	7 / 9.5 kW/HP
Output Torque DaNm Increasing	9.9 daNm
Ratio Increasing	1: 1,9
Ratio Reducing	1.9: 1
Shaft X	1 3/8″ (6) (A)
Shaft Z	22 (D)

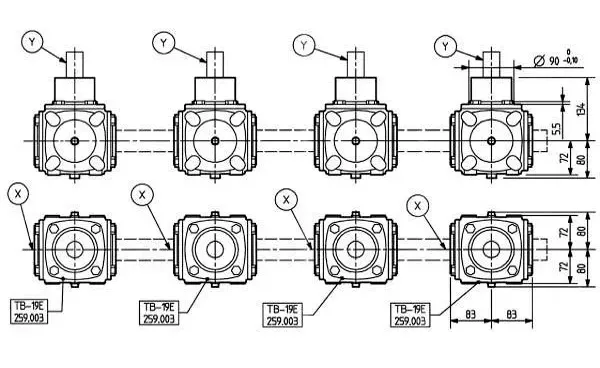

Ürün Açıklaması	Manure Spreader Gearboxes – Replacement of Comer Gearbox TB-19C 1:1.46
Product details	Housing material: cast iron Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First, oil change is after 50-70 operating hours, then after 500-700 operating hours, or at least once a year.
Application range	Various (agricultural) applications Series mill Mowers Fertiliser spreader Band saws Manure Spreader
Consists of	Gearbox Order oil separately
Max. output torque	42.3 daNm
Contains oil	No
Gear arrangement Increasing	25 – 26 – 27 – 28
Gear arrangement Reducing	5 – 6
Input power kW / HP Increasing	20.6 / 28 kW/HP
Input shaft Increasing	X – Y
Input shaft Reducing	Z
Input power KW / HP Reducing	16.9 / 23 kW/HP
Output Torque DaNm Increasing	24.1 daNm
Ratio Increasing	1: 1.46
Ratio Reducing	1.46: 1

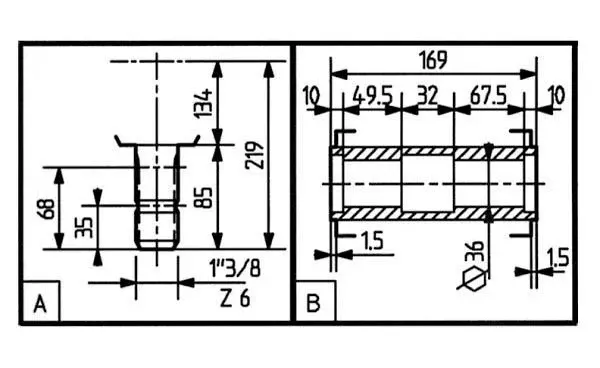

Shaft X	SW 36 (B)
Shaft Y	SW 36 (B)
Shaft Z	1 3/8″ (6) (A)

Manure Spreader Gearbox TB-27C Specifications

Description	Manure Spreader Gearbox – Replacement of Comer Gearbox TB-27C
Application	Various (agricultural) applications Manure Spreaders
Consists of	Gearbox Without oil
Technical information	If you have any questions regarding performance at different speeds, please do not hesitate to contact us When using it for the first time, replace the oil after 50 operating hours
Max. input power	15.1 kW
Max. output torque	496 nm
Contains oil	No
Max. oil capacity	1.1 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GG25
Ağırlık	22 kg
Gear arrangement	26
Ratio Increasing	1: 1.92
Ratio Reducing	1.92: 1
Shaft X	1 3/8″ (6) (C)
Shaft Z	1 3/8″ (6) (A)
