| Anti-torque Cylinder | |
| Application | Transmit the torque during cutter head rotation |
| Spécification | Bore diameter: 330mm-570mm Rod diameter: 260mm-530mm Stroke: 120mm-160mm |
| Pressure | Typically up to 35MPa Maximum up to 42MPa |

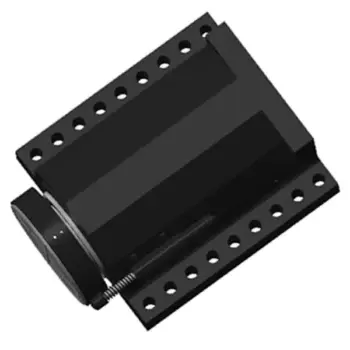

A Hydraulic Anti-torque Cylinder for Shield Tunneling Machines is a crucial hydraulic component that transmits torque from the primary drive to the cutter head of a shield tunneling machine (TBM). This function prevents the cutter head from rotating counter to the main drive, which can lead to damage or cause the TBM to become immobilized.
These Anti-torque Cylinders are commonly employed in TBMs with bore diameters ranging from 330mm to 570mm. Their rod diameters vary from 260mm to 530mm, with strokes between 120mm and 160mm. They are capable of operating under pressures reaching up to 35MPa, with a maximum pressure limit of 42MPa.
The Anti-torque Cylinders play an essential role in the operation of TBMs, ensuring that the cutter head rotates smoothly and consistently. This consistency is vital for the efficiency of the TBM and the safety of the personnel working with it.
The Hydraulic Anti-torque Cylinder is connected to the cutter head of the shield tunneling machine on one end and to the main bearing on the other end. When the cutter head rotates, it activates the piston within the cylinder, transmitting torque to the main bearing. The cylinder relies on hydraulic fluid to generate the necessary force for torque transmission.
Techniek BV is the Dutch sales agent for Ever-power Group, specializing in providing high-quality hydraulic solutions for various applications, including tunnel boring machines. Our focus on innovation and reliability sets us apart in the industry, and we take pride in offering products that meet the stringent demands of tunneling operations. One of our key offerings is the Hydraulic Anti-torque Cylinder for Shield Tunneling Machines, designed to enhance the performance and efficiency of tunneling projects.
In addition to our standard hydraulic cylinders, we offer customized solutions to meet specific customer requirements. We can manufacture non-standard cylinders with a diameter of D360MM and a stroke length of L6000MM, ensuring that our clients receive the exact specifications they need for their operations. We invite our customers to provide their designs or samples for tailored solutions that fit their unique needs. Our dedication to quality and customer satisfaction makes us a trusted partner in the hydraulic cylinder industry.
